Precor C966i Service Manual

C956i, C966i (Gen 06) Treadmill
Page 1-40 Page 40
Procedure 6.8 - Replacing the Input Module
1. Set the treadmill circuit breaker in the “off” position and unplug the treadmill’s line cord from
the AC outlet.
2. Remove the treadmill’s hood.
3. Remove the two screws that fastens the AC input panel to the frame,. See Diagram 6.4.
4. Lift the AC input panel from the frame and rotate it to expose the AC line cord clamp screws
and input module screws. See Diagram 6.5.
5. Remove the hardware that retains the AC line cord clamp and remove the clamp.
6. Disconnect the AC line cord from the input module.
7. Disconnect the wiring from the input module (1 blue wire, 1 brown wire and 1 green/yellow
wire).
8. Remove the hardware that retains the input module and remove the input module.
9. Set the input module in its mounting position with the side with two terminals facing the
circuit breaker.
10. Connect the blue wire removed in step 5 to terminal “N”, the brown wire to terminal “L” and
the green/yellow wire to terminal “E” of the input module. See Diagram 6.6.

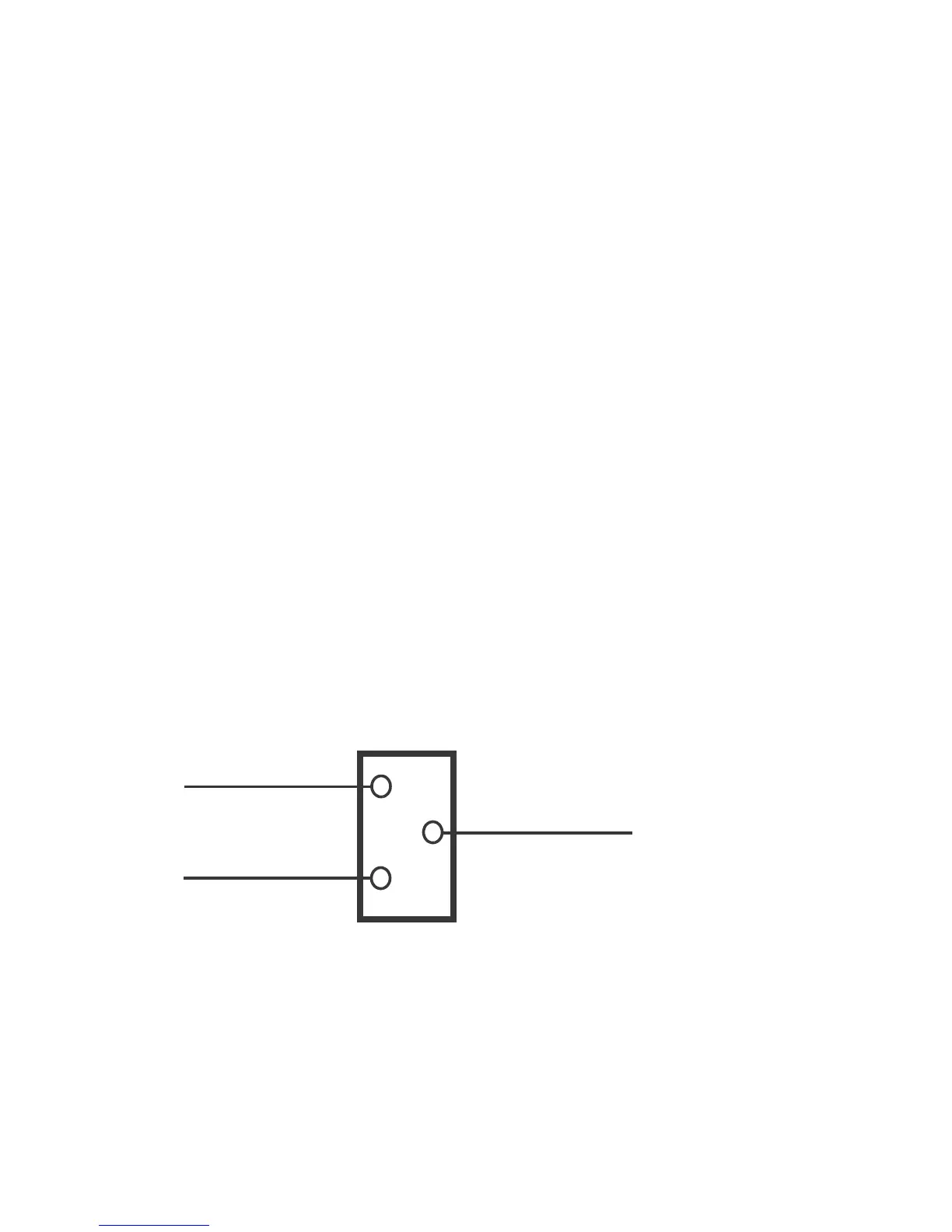

Diagram 6.6 - Input Module Wiring
11. Insert the AC line cord firmly into the input module. Set the AC line cord clamp in its
mounting position and fasten it with the hardware removed in step 5.
12. Set the input panel in its mounting position and fasten it with the hardware removed in step
3.
13. Check treadmill operation per Section 3
Green/Yellow
E
L
N
Brown
Blue

Precor C966i Specifications

Power and Motor

motor power	4.0 hp continuous duty
power requirements 120v	120 v @ 50/60Hz 20 Amps
power requirements 240v	240v @ 50/60Hz 20 Amps

Performance

speed range	0.5 to 16 mph (1 to 26 kph)
incline range	-3% to 15% grade

Weight and Dimensions

length	86 inches (218 cm)
width with handrails	37 inches (93 cm)
width without handrails	34 inches (86 cm)
height	59 inches (150 cm)
weight	375 lbs (170 kg)
shipping weight	470 lbs (213 kg)
running surface	60 inches x 20 inches (153 cm x 51 cm)
