EFX5.25 Elliptical Fitness CrossTrainer Assembly Guide 6

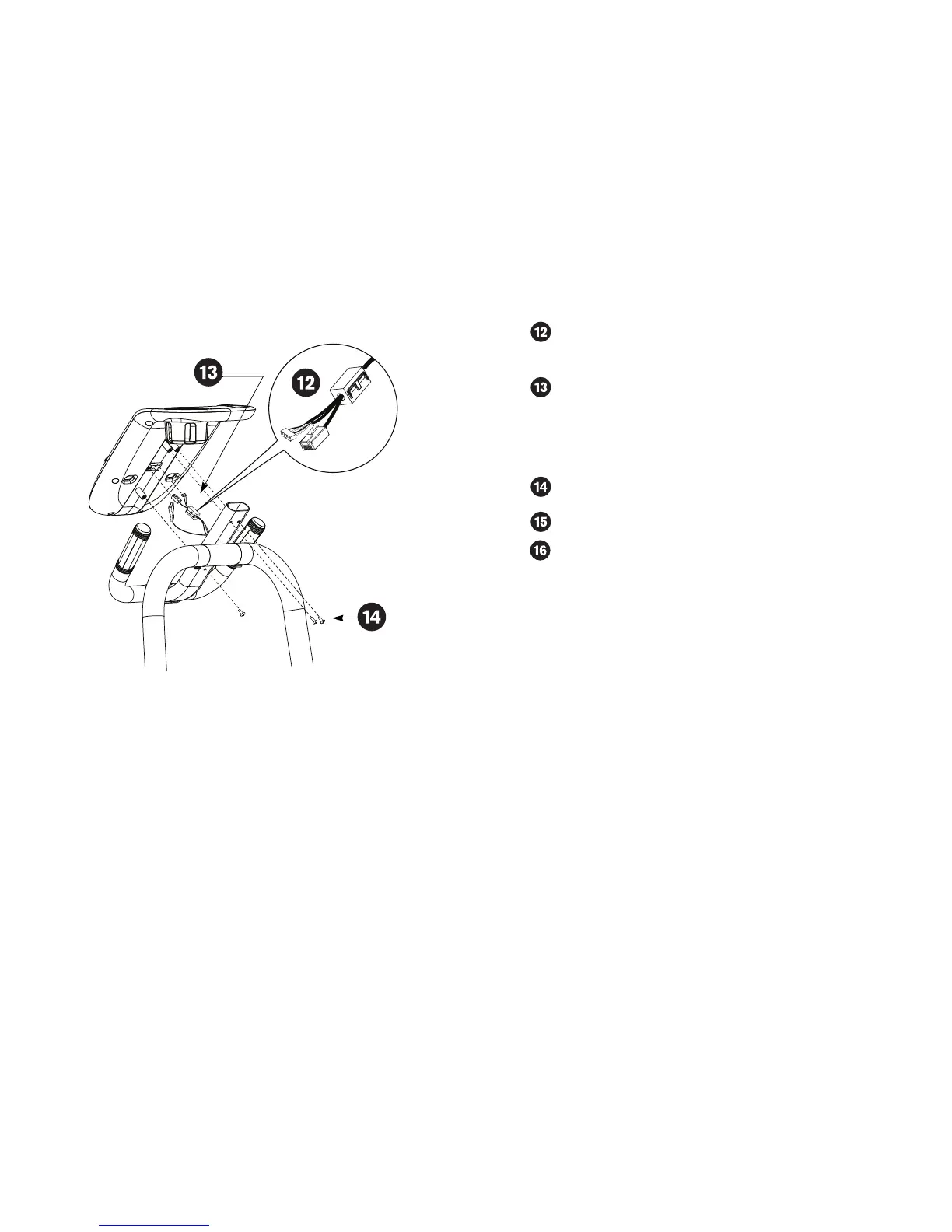

Open the ferrite (N) and attach it near the ends of the cables,
leaving enough space to attach both connectors.
Note: Make sure the ferrite is securely closed around the cables.
Connect the 4-pin connector and the RJ45 to the appropriate
receptacles on the back of the display console. An audible click is
heard when the cable is properly attached. Place the ferrite and
excess cable into the console bracket.
Connect the green grounding wire to the middle receptacle
marked GND.
Attach the display console to the console bracket using three
Phillips-head screws (K). Tighten securely.
Return to the base of the stabilizers and fully tighten all eight hex
head screws.
If necessary, remove the wedge of packing material used in step 2.
To Next Page
