17. Rotate the rear pads. Diagram 8, inset. Ask your assistant to stabilize the
unit while you rotate the adjustable rear pad to lift the base assembly off the
floor and provide better access to the fasteners.
18. Rest the base assembly on a block. Diagram 8. Have an assistant grasp
the handrails and lift the base up so that you can slide a supportive block of
packing material under the front of the unit.

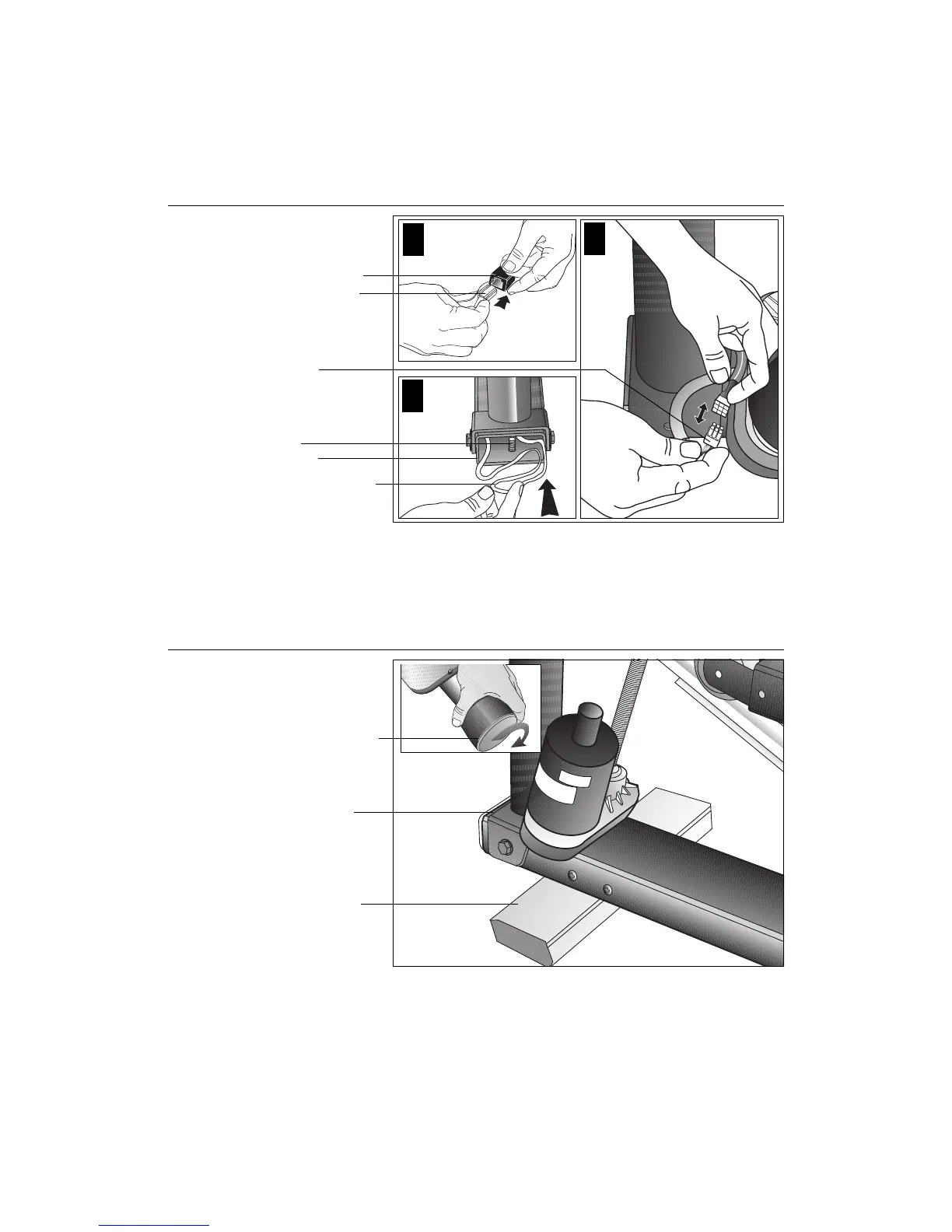

Diagram 8 Place the base
on supportive
blocks.
Adjustable rear pad
Supportive block
Base assembly
Diagram 7 Connect the
cables.
Cable connector
Cable receptacle
Place excess cable
into the base tube.
Height adjustor
threads
Base tube
15. Connect the lift motor cable. Diagram 7, #2.
16. Push excess cable inside base tube. Diagram 7, #3. Carefully, push any excess
cable behind the height adjustor threads that protrude from inside the base tube.
Lift motor cable
connector
2
1
3

Precor EFX524 Specifications

Power

power	Self-powered
battery recharger	separate purchase option

Electronic Specifications

incline	1 to 20 degrees
resistance levels	1 through 20
display readouts	Calories, Heart Rate, Smart Rate

Weight and Dimensions

length	79 inches (201 cm)
width	32 inches (81 cm)
height	63 inches (160 cm)
weight	183 lbs. (82 kg)
