page 14
COMMERCIAL PRODUCTS DIVISION
11. Position the upright support over the base. Diagram 6. Have your assistant
move the upright support close to the front of the base assembly while you
thread the cable through the grommet hole and out the front of the base tube
(see inset in Diagram 6, #1). Make sure that the display console (on the
upright support) faces the rear of the unit (see Diagram 6, #2).
CAUTION: As you assemble the unit, do not fully tighten the fasteners until
instructed to do so. Finger tighten the fasteners or use the hex key so that
the unit is stable, but the fasteners still allow room for adjustments.
12. Route the lift motor cable through the cutout in the upright support.
Diagram 6, #1. While your assistant holds the upright support, thread the lift
motor cable through the cutout. Once the cable is routed, rest the upright
support on the base tube.
13. Secure the upright support to the base assembly. Diagram 6, #2. Align the
mounting holes and thread the two bolts (F) with washers (G) through opposite
sides of the upright support and into the base assembly. Finger tighten each
bolt. Do not fully tighten the fasteners until the entire unit has been assembled.
14. Connect the cable into its black receptacle. Refer to the opposite page,
Diagram 7, #1. Just like a telephone connection, a definite "click" is heard
when a good connection is made. If you do not hear a "click," try reinserting
the cable connection again.

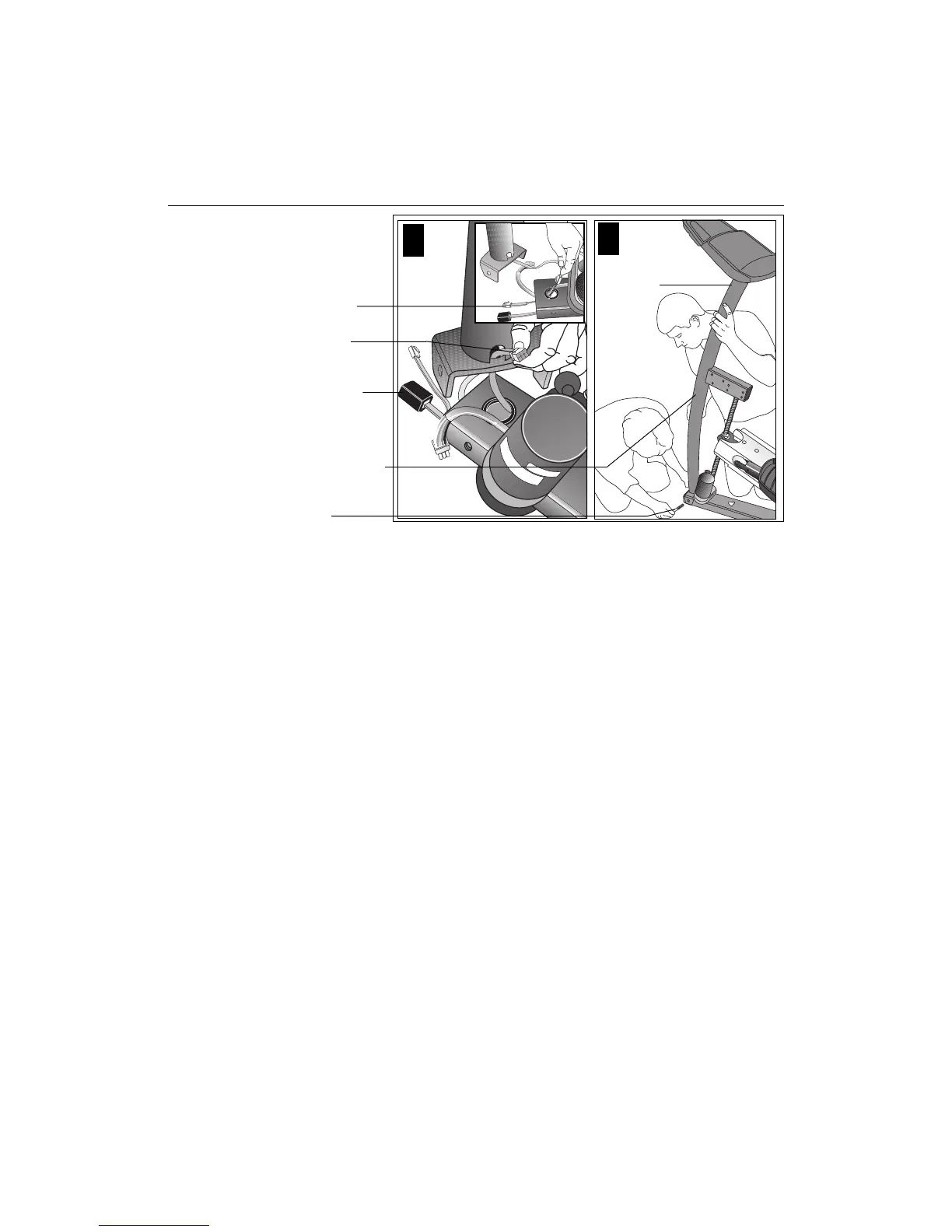

Diagram 6
Route the cable
through the grommet
hole and attach the
upright support to the
base.
Have your assistant
hold the upright
support while you
secure it to the base.
2
1
Two bolts (F) with
washers (G)
Upright
support
Cable receptacle
Route the cable
through the grommet.
Lift motor cable
To Next Page
