page 12
COMMERCIAL PRODUCTS DIVISION

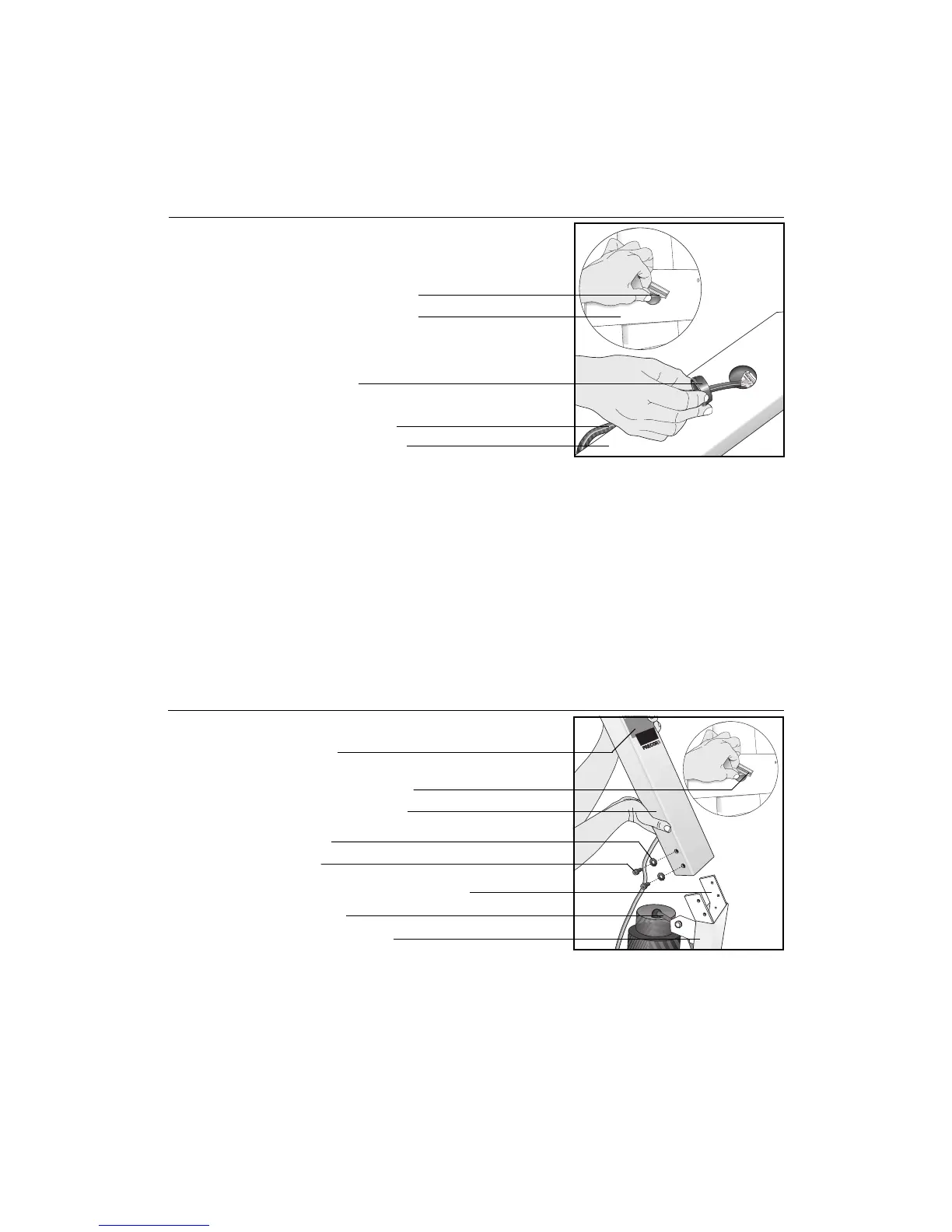

Diagram 2
Thread ribbon cable connector through
upright support.
c. Position the upper column support above the base support mount so that
the Precor EFX label (on the upper column) faces the foot pedals. Slide
the upper column support onto the base support mounting bracket. See
Diagram 3.
CAUTION: Be sure not to crimp or pinch the ribbon cable as you
place the upper column support into position. Cables pinched or
otherwise damaged by improper installation will not be covered by
the Precor limited warranty.
Diagram 3
Install upper column support.
Base support mount
Base support mounting bracket
Upper column support
Ribbon cable sheath
Black grommet
Ribbon cable connector
Console mounting plate
Washer (B)
Screw (A)
Ribbon cable
Precor label
Upper column support
Hold connector in place while installing
upright column support
b. Gently unwind the ribbon cable that is attached to the lower board. Ask
for assistance to help route the ribbon cable through the upper column
support. Insert the connector into the lower hole and pull it out through
the upper hole. You can turn the upright support upside down to allow
gravity to help you move the ribbon cable to the upper hole, but keep the
upright support close to the lower board. See Diagram 2.
Note: It may be easier to push the connector into the lower hole by
removing the black grommet. Be sure to replace the grommet because
it helps protect the cable.
