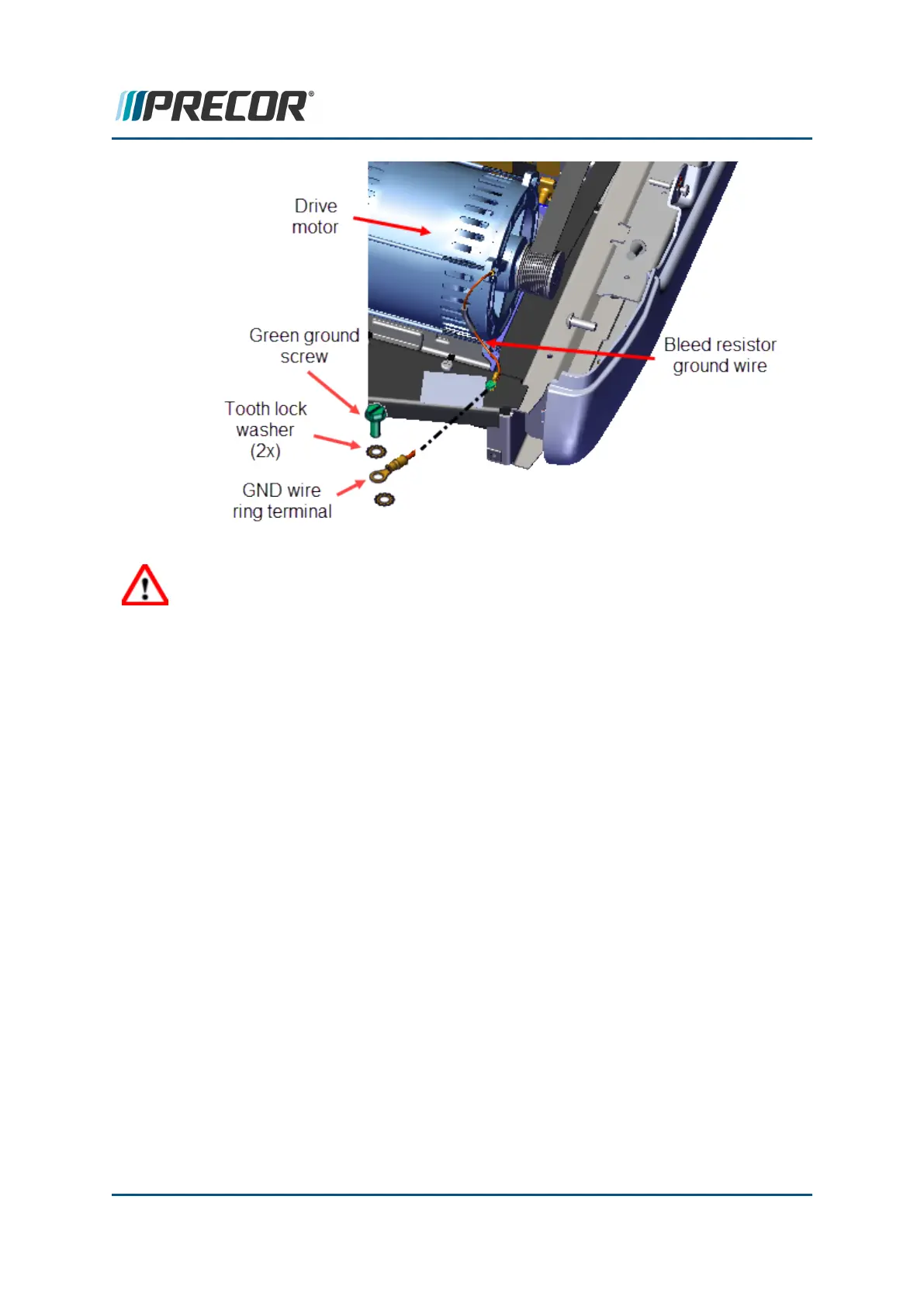

WARNING: Static electric shock hazard. Make sure the motor static bleed resistor
ground wire is securely connected to the frame. When the ground wire is not con-
nected, touching the motor housing could cause static charge electrical shock
and personal injury.
2. Reconnect the Motor Controller "MTH" (front side) and "MOTOR" (rear side) cables,
see "Motor Controller (MC) Replacement" on page 107. Slightly lift the MC to make it
easier to reconnect the cables to the MC I/O ports. Make sure the cable connectors
have the correct orientation and alignment before inserting into the MC I/O port.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 136
6 Replacement Procedures
Drive Motor Replacement
