Running Belt Tension and Tracking Adjustment
About

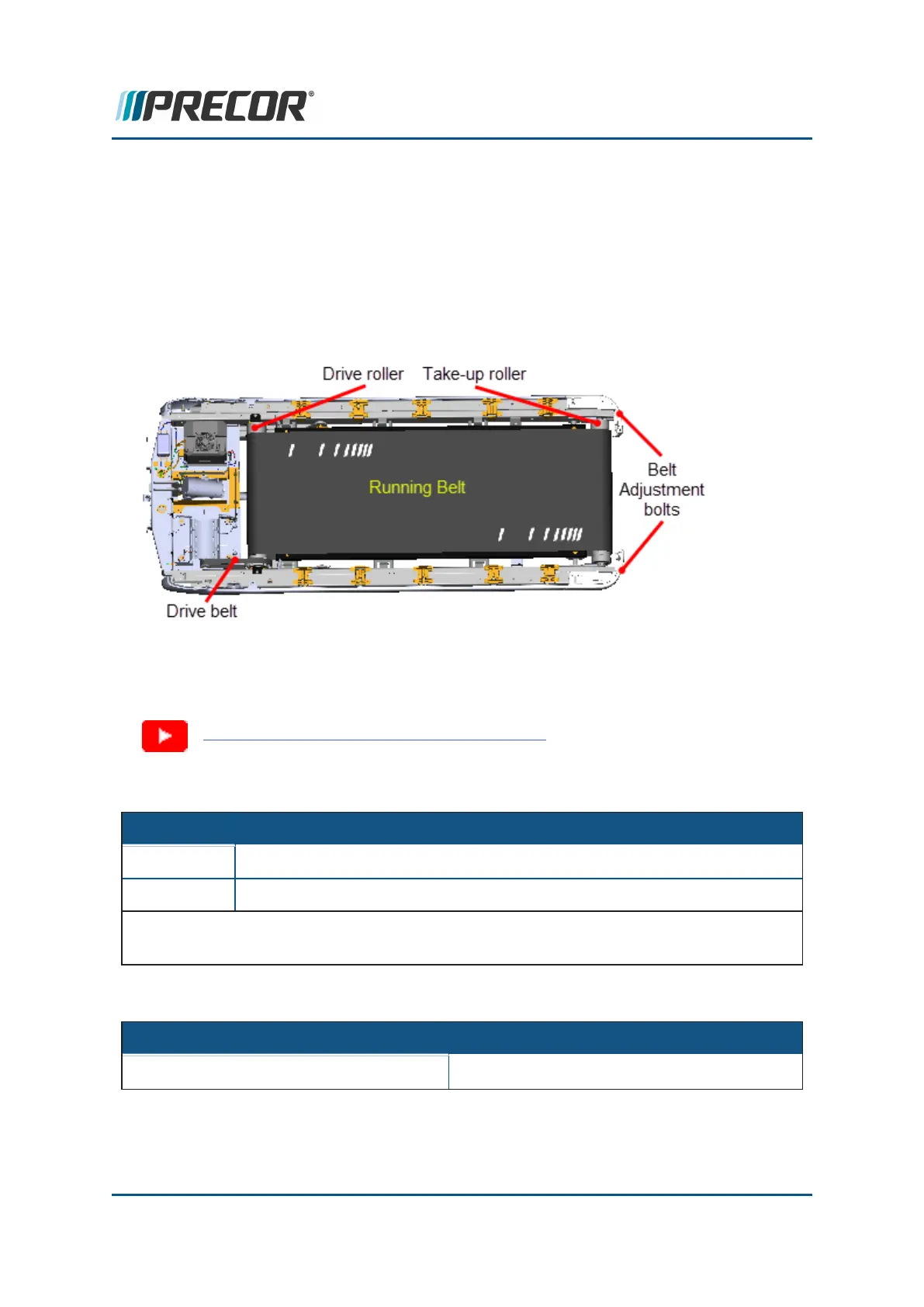

This procedure provides instructions to adjust the running belt tension and tracking align-
ment to manufacturer specification. The running belt tension and tracking should be adjus-
ted anytime the running belt is replaced, removed/installed, or when there is any detectable
belt or tracking issues.
Videos
(Internet Only)
RUNNING BELT ALIGNMENT PROCEDURE
Tools
QTY TOOL
1 5/16" Hex Key Socket and Ratchet
2 Belt Tension Gauge
1
(PPP000000020007101 or equivalent)
(1) Proper tensioning of the belt requires the use of two tensioning gauges, Precor part
number PPP000000020007101or equivalent.
Specification
Running Belt Specification
Forbo brand running belt tension
(2)
3.55 (0.55%)
(1)
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
