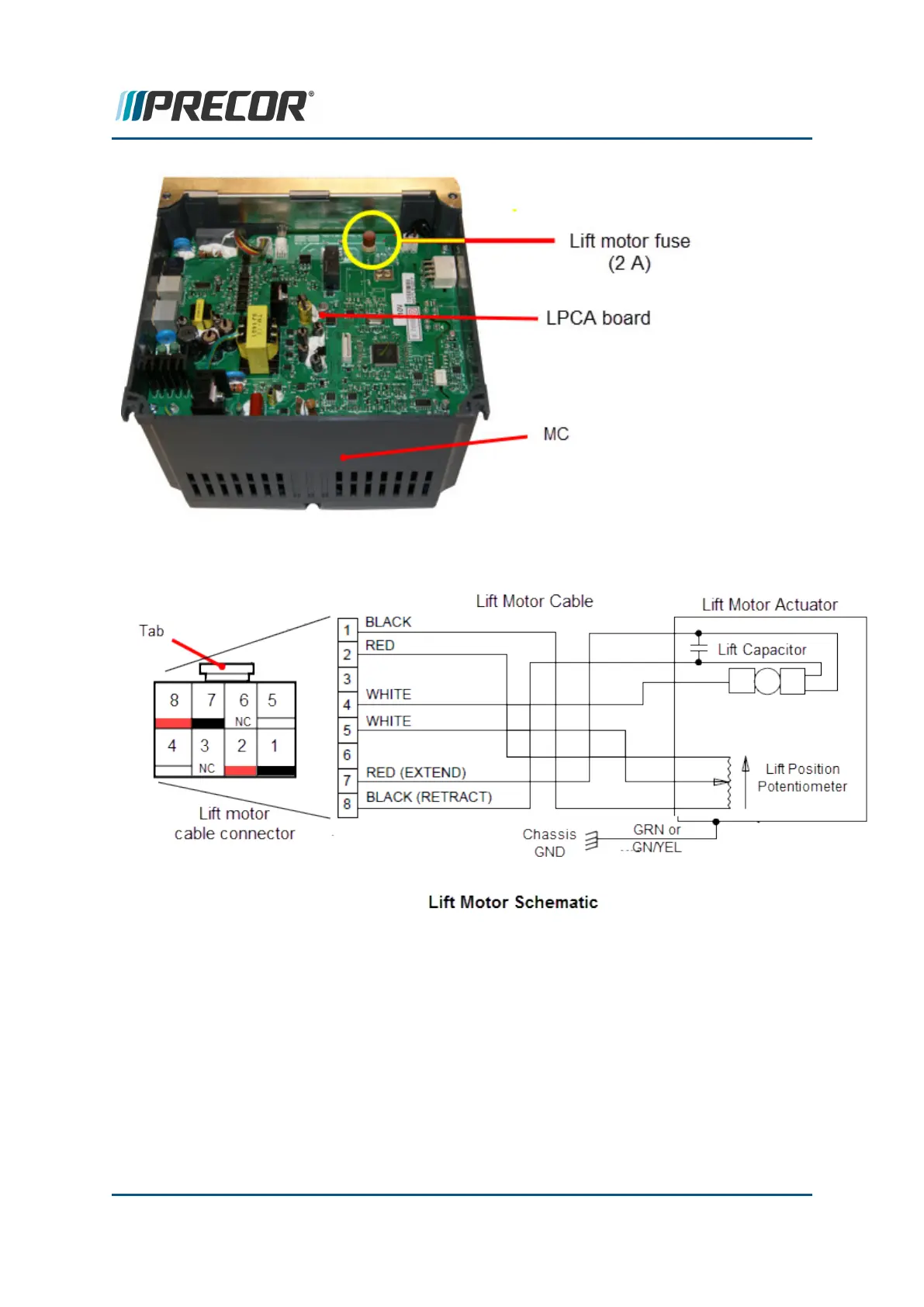

Lift motor cable schematic
Procedure
Removal
Review entire procedure before starting.
1. Remove the hood cover, see "Hood Cover Replacement" on page 82.
2. Prepare the treadmill for service. To provide access to the lift extension tube, raise
and block the front of the treadmill per the Front Access instructions, see "Front
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 157
6 Replacement Procedures
Lift Motor Replacement
