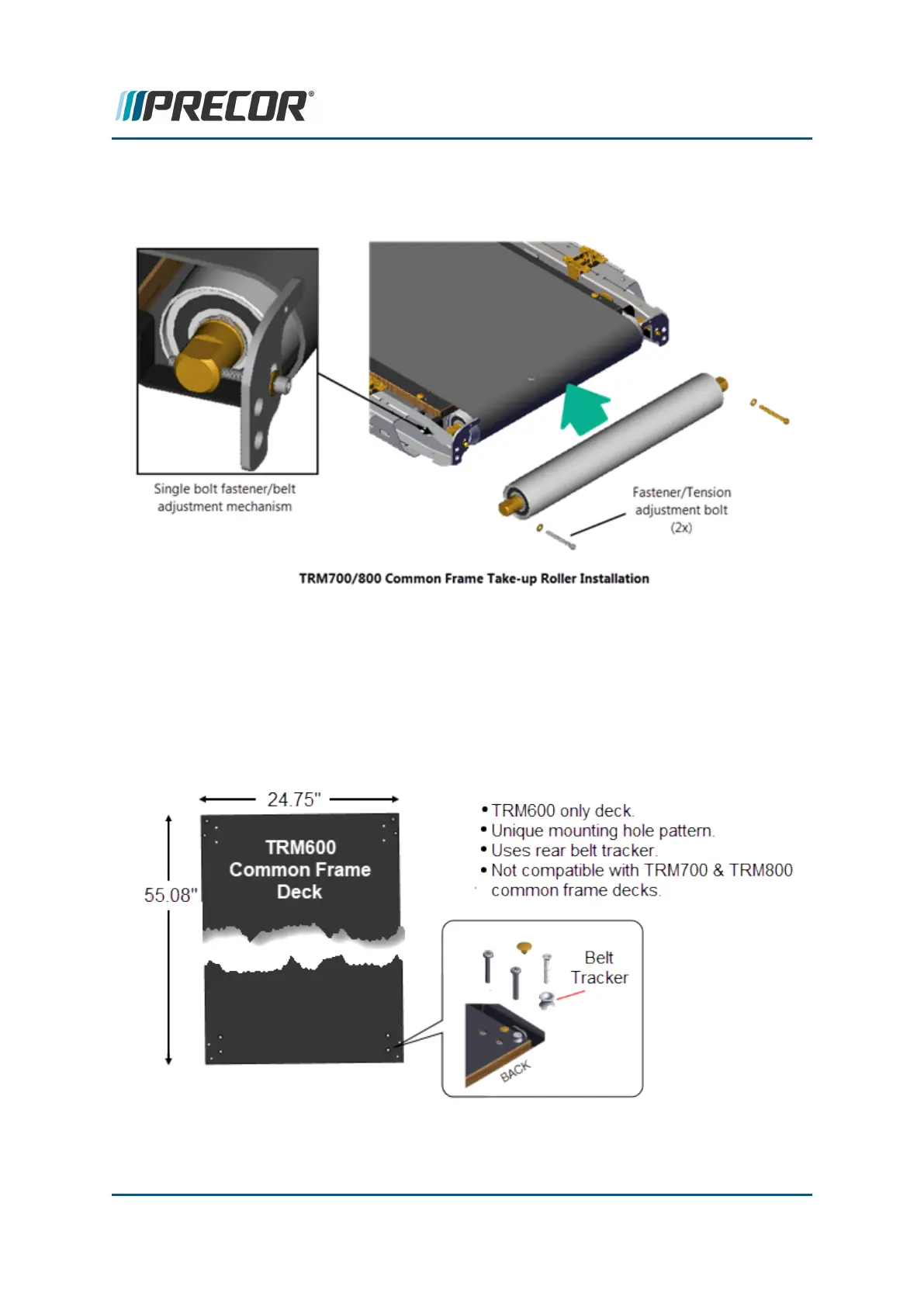

fastener/belt tension adjustment mechanism. On the common frame, the running belt ten-
sion adjustment bolt is both the take-up roller fastener and the belt tensioner. The down-
ward force from the belt tension holds the roller in place.
Common Frame Running Deck
TRM600 Running Deck
The TRM600 common frame running belt and deck are unique to the TRM600. The
TRM600 belt/deck is not compatible with the TRM700 or TRM800 common frame tread-
mills. The running belt length is shorter due the smaller diameter drive and take-up rollers.
Also the deck includes a rear belt alignment tracker.
TRM700/800 Running Deck
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 240
9 Theory of Operation
TRM600/700/800 Common Frame Overview
