the drive belt-to-frame rail distances and verify that the drive belt remains
aligned. If not, repeat procedure until the drive belt is properly aligned.
Drive Belt tension adjustment

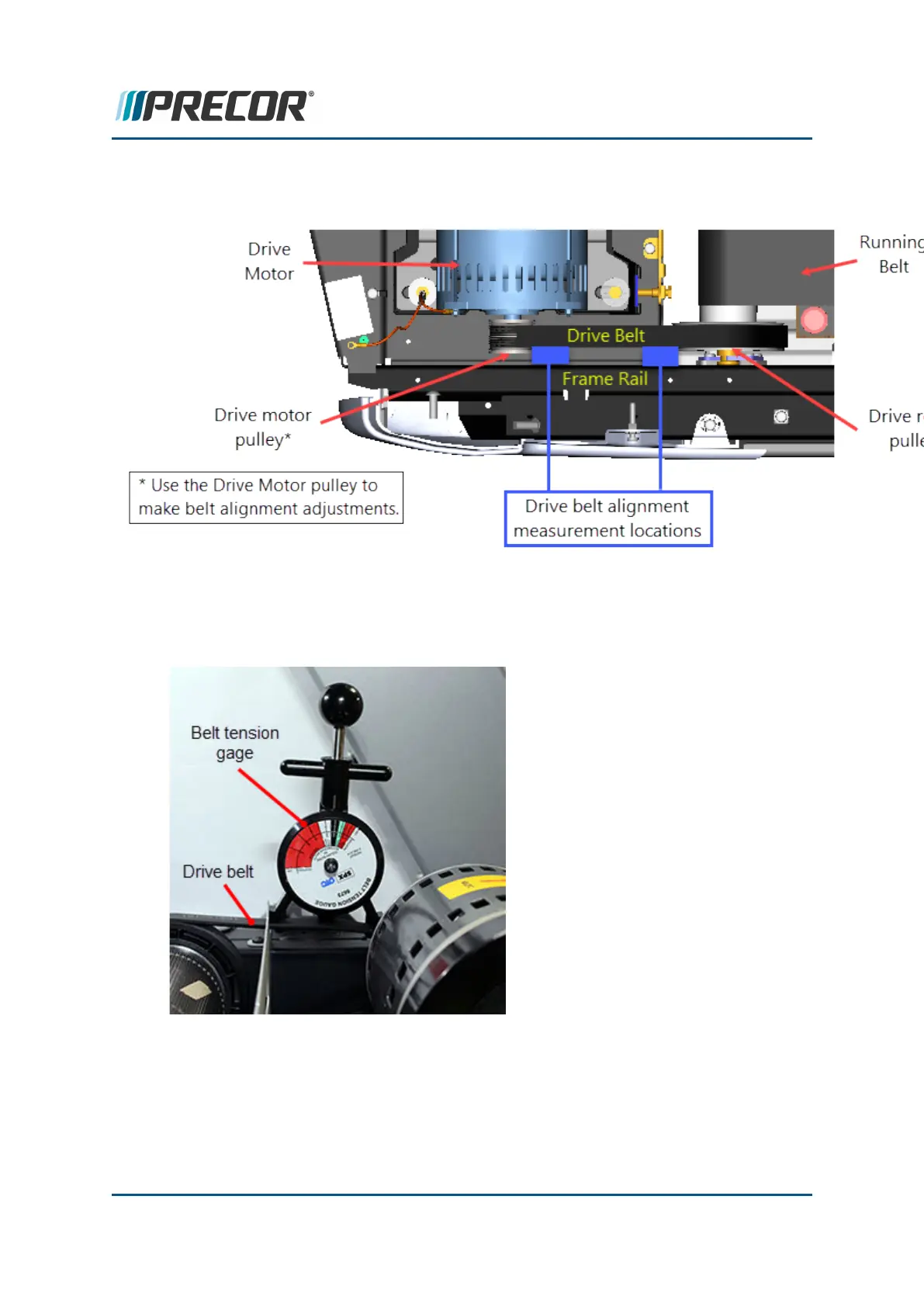

4. Place the belt tension gauge onto the Drive Belt mid distance between the drive motor
and drive roller pulleys.
5. Verify that the measured Drive Belt tension is within the belt condition New or Used
tension specification:
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 58
5 Adjustment Procedures
Drive Belt Tension and Alignment Adjustment
