and right side tension in increments of 0.2 (0.2%) gauge divisions until the man-
ufacturer tension specification is reached.

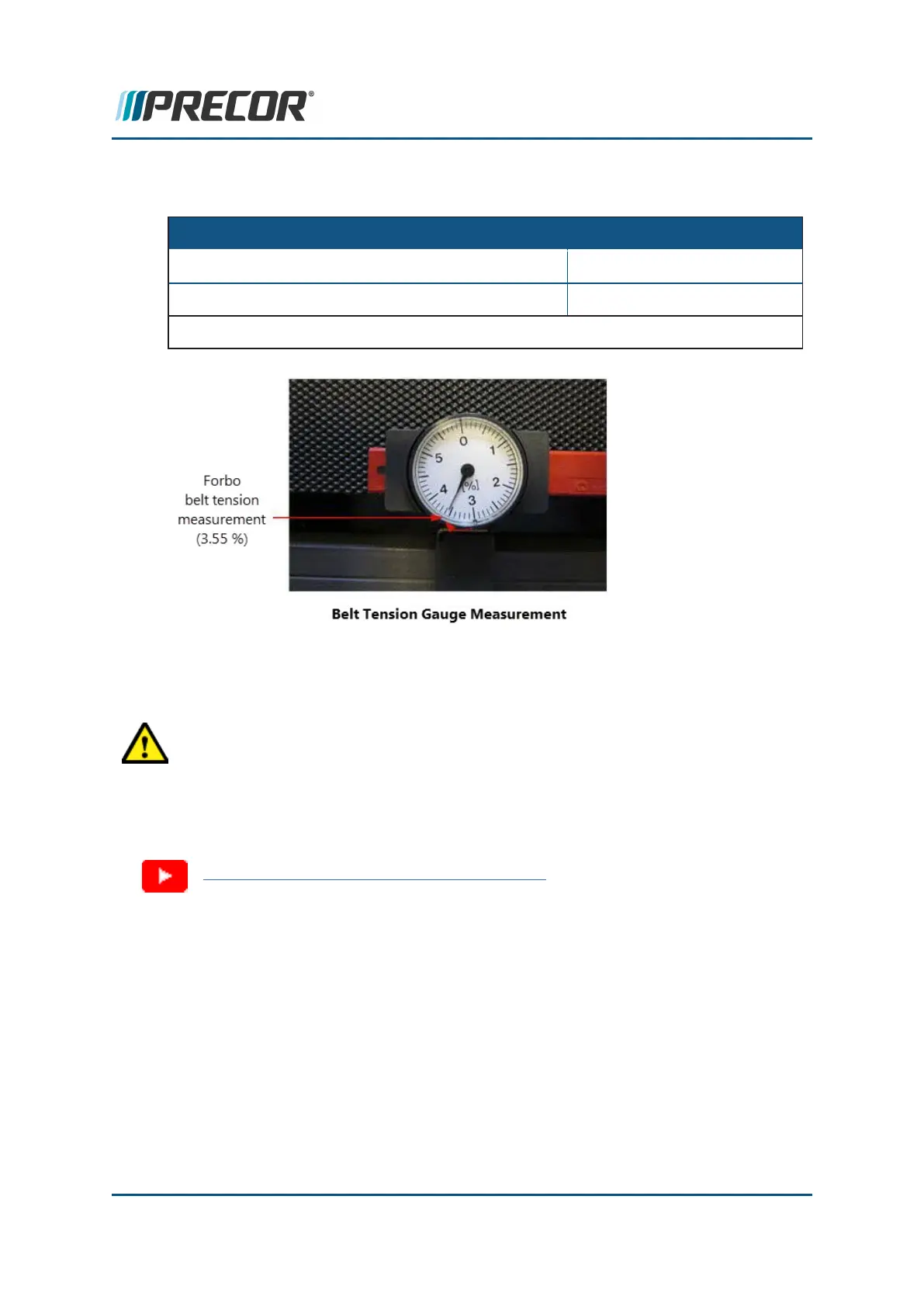

Running Belt Specification
Forbo brand running belt tension 3.55 (0.55%) *
Habasit brand running belt tension 3.70 - 3.80 (0.70% - 0.80%)*
Notes: * Referenced to gauge reading 3.0 (0.0%)
11. Remove the tension gauges.
Running belt alignment and tracking adjustment
CAUTION: 1) ONLY use hand tools for belt tracking adjustment
2) The tracking adjustments should only be done in 1/4 turn incre-
ments.
3) ONLY use the right side tension bolt to adjust tracking.
Video
RUNNING BELT ALIGNMENT PROCEDURE
What is a centered and properly tracking running belt
A properly centered belt does not mean that the belt is perfectly centered on the deck and
rollers. It is a belt that tracks steady and does not touch or rub the landing trim or any other
frame or hardware parts. Always attempt to position the belt as close as possible to the cen-
ter of the deck and rollers.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 66
5 Adjustment Procedures
Running Belt Tension and Tracking Adjustment
