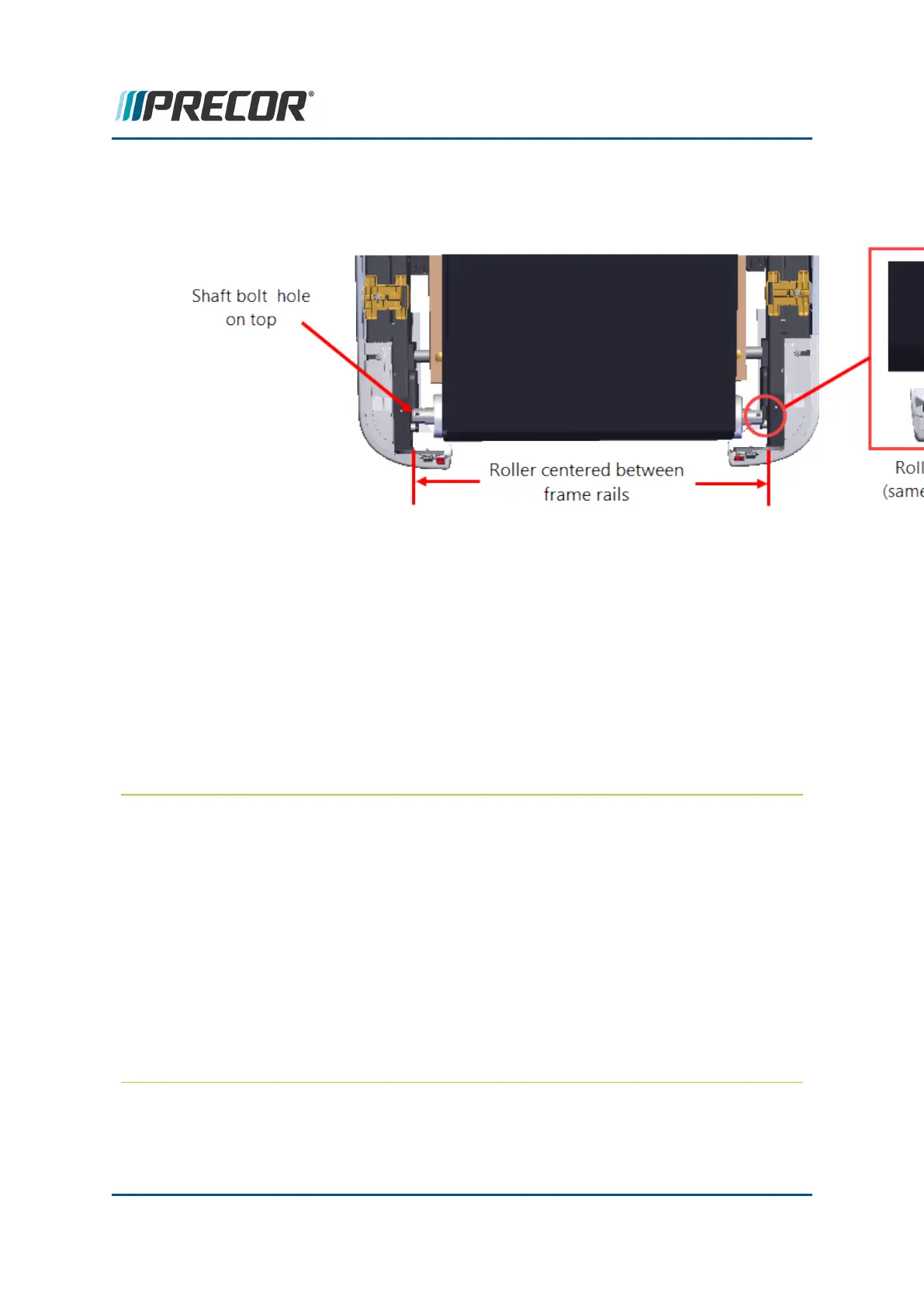

b. Next center the roller shaft ends between the inside of the left and right frame
rails. The common frame roller does not have shaft mounting slots to center
and hold the roller in position. The belt tension will hold the roller in position
4. Use the 5/16" hex key socket and ratchet to alternately hand tighten the running belt
tension adjustment bolts until snug and stop.
5. Tension the running belt to specification and verify alignment and tracking, see "Run-
ning Belt Tension and Tracking Adjustment" on page67.
6. Reinstall the left and right Landing Trim covers, see "Covers and Panels Replace-
ment" on page86 and hood cover, see "Covers and Panels Replacement" on
page86,.
7. Do the Operation Verification tests (see "Operation Verification" on page24) and
return to service.
Common Frame with "Common Take-up Roller" Installation
Common Frame - "Common Take-up Roller" Installation
Use this procedure to install the common frame take-up roller onto a common frame weld-
ment.
Review entire procedure before starting.
1. Clean the running belt, deck, and Take-up roller.
2. Carefully insert the Take-up roller through the running belt:
a. On new take-up roller installations, the left and right orientation does not mat-
ter,
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 185
6 Replacement Procedures
Take-up Roller Replacement
