Trim End Cap Covers Replacement
Trim End Cap Covers Replacement

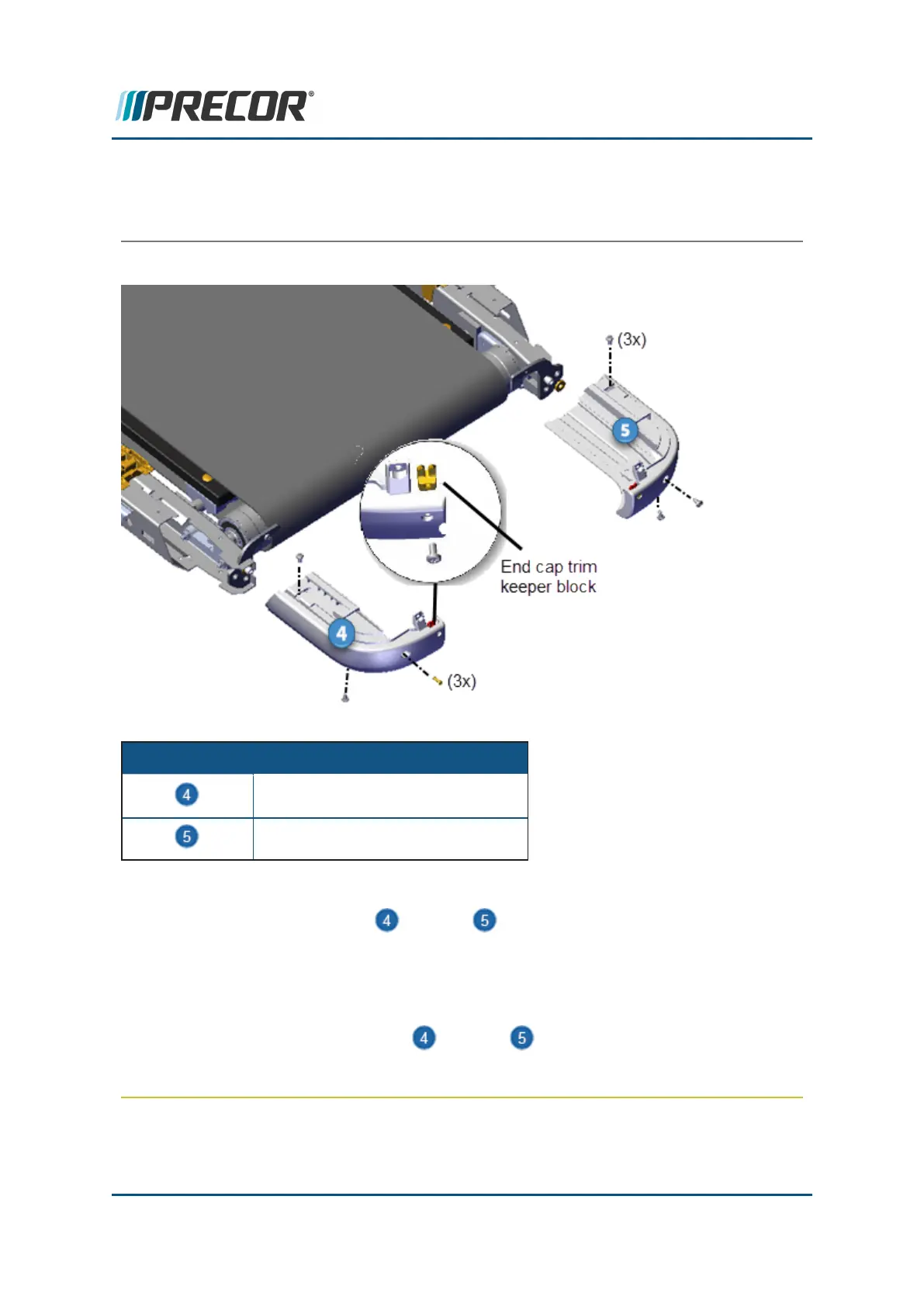

Legacy Frame Models
ID Description
Trim End Cap - left
Trim End Cap - right
Removal Instructions
Repeat procedure for both the left and right end cap covers.
1. Remove the hood cover, see "Hood Cover Replacement" on page88.
2. Remove the left and right trim landing covers, see "Covers and Panels Replacement"
on page86.
3.
Remove the three #3 Phillips left and right trim end cap cover fastener screws.
One fastener on the top, one fastener on the end, and one fastener on the bottom.
Retain part(s) and/or fastener(s) for installation.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
