Procedure
There is a replacement procedure for the legacy frame and common frame configurations.
l Legacy Frame, see "Legacy Frame Drive Motor Replacement" below
l Common Frame, see "Common Frame Drive Motor Replacement" on page160
Legacy Frame Drive Motor Replacement
Review entire procedure before starting.
Removal Instructions
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the hood cover, see "Hood Cover Replacement" on page88.

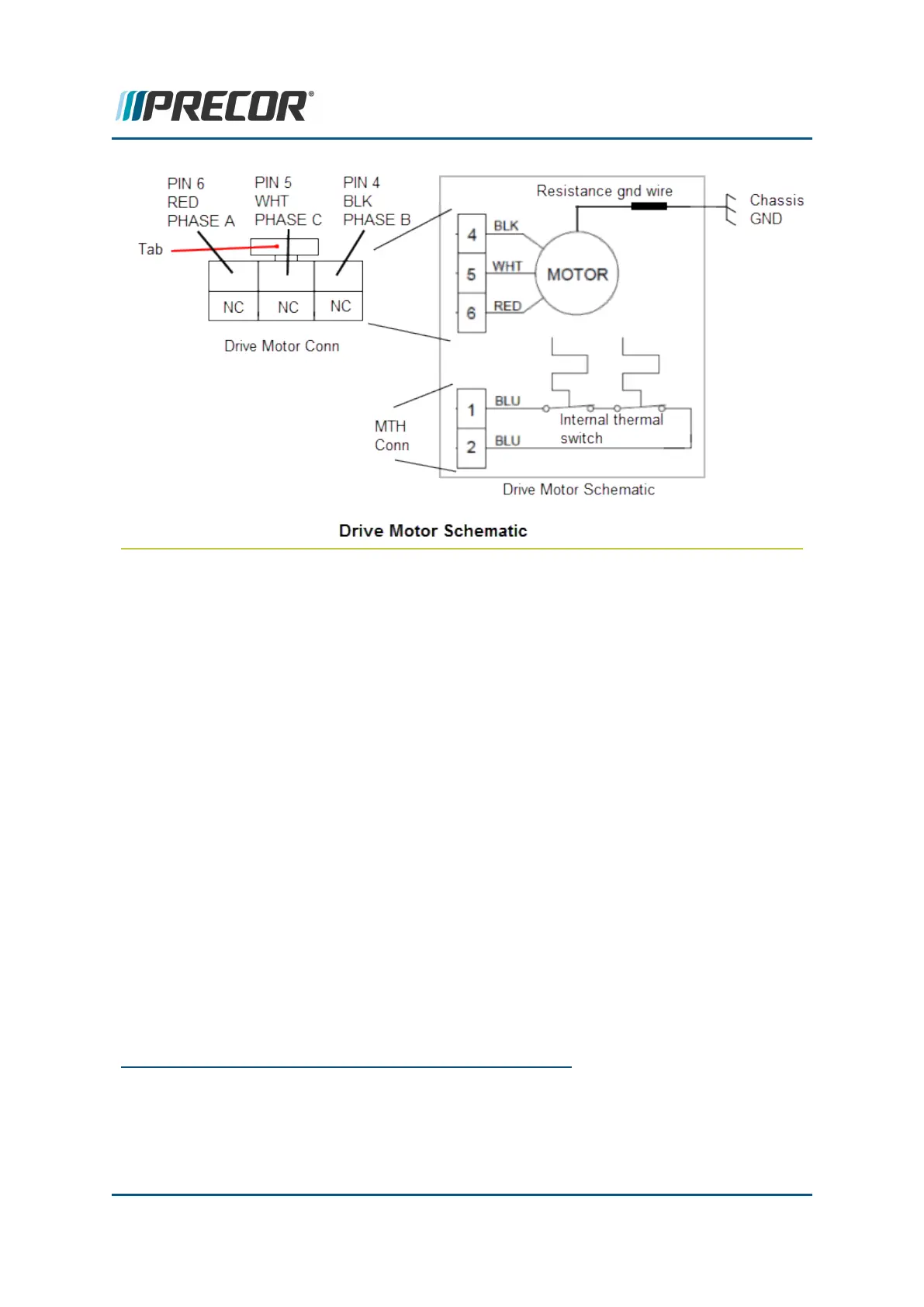

3. Disconnect the Motor Controller "MTH" and "MOTOR" electrical connections:
a. Remove the MC
2
base from the mounting fasteners to allow connector access,
see "Motor Controller (MC) Replacement" on page123.
b. Disconnect the MC "MTH" and "MOTOR" interface cable connectors, see
"Motor Controller (MC) Replacement" on page123.
c. Remove the MOTOR power cable from the three frame cable clamps.
1
Disconnect a device power cord plug or cable connector from the power receptacle or out-
let.
2
Motor controller, motor controller unit, or motor controller module: used on treadmills, con-
tains the LPCA and motor controller functionality.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 155
6 Replacement Procedures
Drive Motor Replacement
