TIP: Use a short stub #3 Phillips screwdriver to remove the bottom end cap
fastener.
4. Pull the cover away from the frame to release the cover tabs and remove.
5.
Repeat the same removal procedure to remove both the left or right trim end
cap covers.
Installation Instructions
Repeat procedure for both the left and right covers.

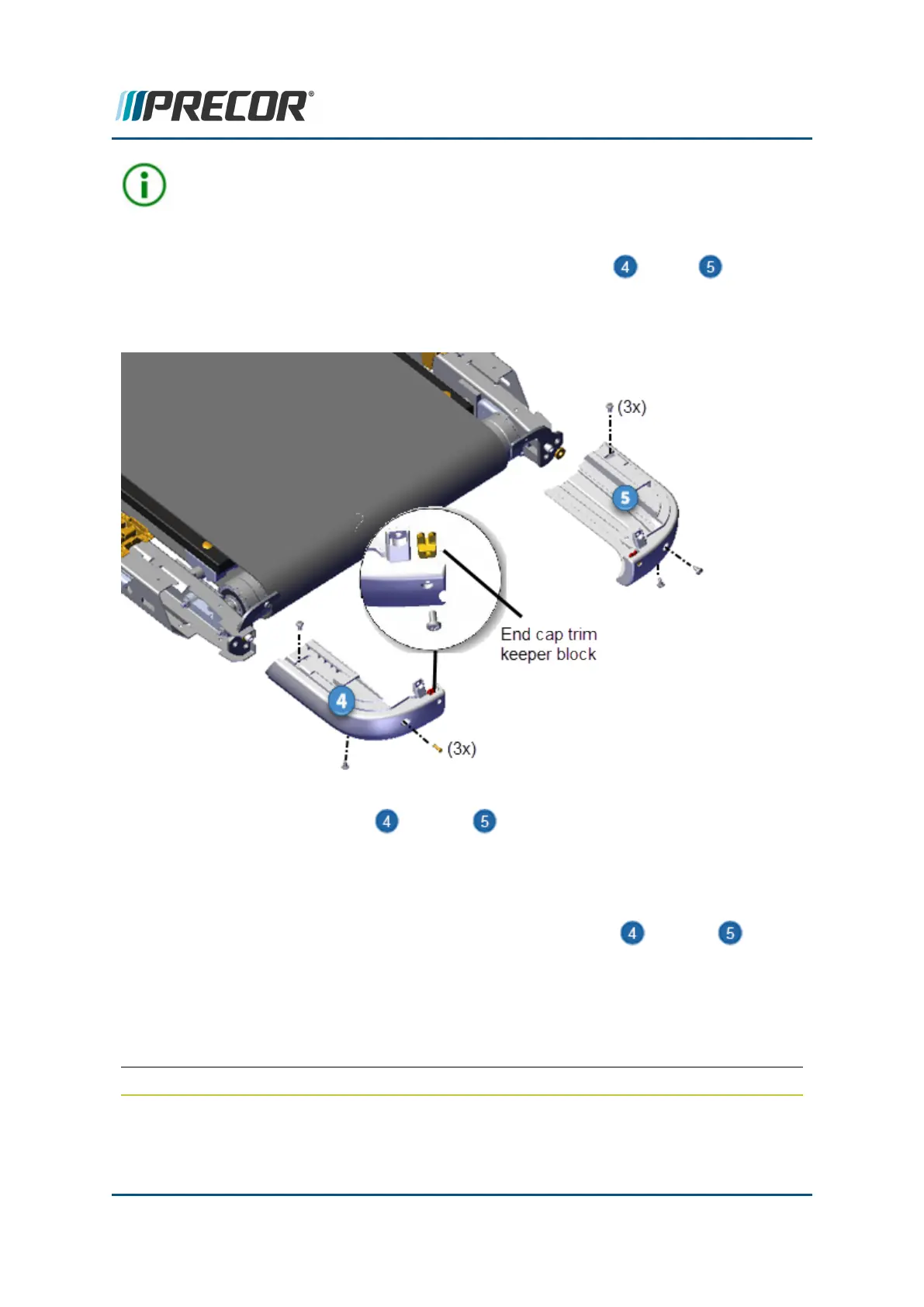

1. Reinstall the end cap cover onto the end of the frame rail and press to lock cover tabs
in place. Secure using the three #3 Phillips screw fasteners. One fastener on the top,
one fastener on the end, and one fastener on the bottom.
2.
Repeat the same installation procedure to install both the left and right trim
end cap covers.
3. Reinstall the left and right trim landing covers, see "Covers and Panels Replacement"
on page86.
4. Reinstall the hood cover, see "Hood Cover Replacement" on page88.
Common Frame Models
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 98
