Precor move beyond S3.15 Assembly Instructions

S3.15 Leg Press Option Assembly Instructions
page 11
1 2 3 4 5 6

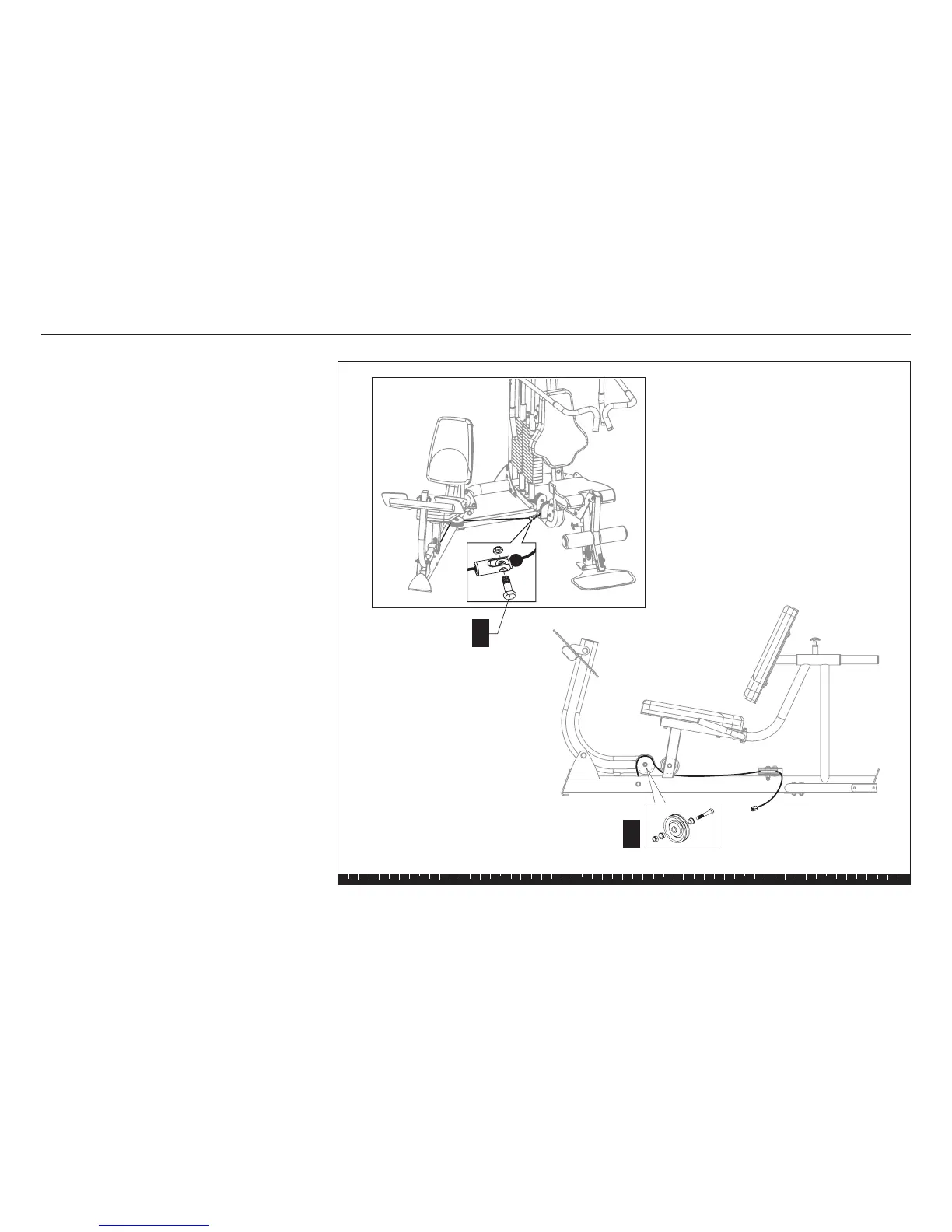

D. Attach the end of the Leg Press Cable to the S3.15
Cable using
one 1-inch zinc hex head bolt
one locknut
E. Remove the 3¹⁄₂-inch pulley from the Leg Press
Arm. Feed the cable around it and reattach it using
one 2¹⁄₂-inch zinc hex head bolt
two ¹⁄₂-inch zinc shoulder spacers
one zinc locknut
Wrench tighten.
This completes the assembly of the Leg Press Option.
Before using the S3.15
or S3.19 with the Leg Press
Option, check the cable tension. Refer to
Cable
Adjustments and Maintenance
in the Assembly and
Maintenance Guide.
E
1 - 2½" zinc bolt
2 - ½" zinc shoulder spacers
1 - zinc locknut
D
1 - 1" zinc bolt
1 - zinc locknut
Step 4. Install the Leg Press Cable, continued

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
