Precor move beyond S3.15 Assembly Instructions

S3.15 Leg Press Option Assembly Instructions
page 10
1 2 3 4 5 6
4. Install the Leg Press Cable
A. Lower the Leg Press Arm and rest it on the floor.
B. Attach the Leg Press Cable 130193 to the base of
the Leg Press using
one ³⁄₈-inch x 3³⁄₄-inch hex head bolt
two washers
one ½-inch locknut
Wrench tighten.
C. Remove one 3¹⁄₂-inch pulley on the Seat Base
Upright. Feed the cable through the seat base and
under the pulley. Reattach the 3¹⁄₂-inch pulley using
one 2³⁄₄-inch hex head bolt
two ½-inch shoulder spacers
one locknut
Wrench tighten.
D. Remove the 3¹⁄₂-inch pulley from the adjustable
Pulley Bracket. Feed the cable around it and
reattach it using
one 2¼-inch zinc hex head bolt
two zinc washers
one zinc locknut
Wrench tighten.

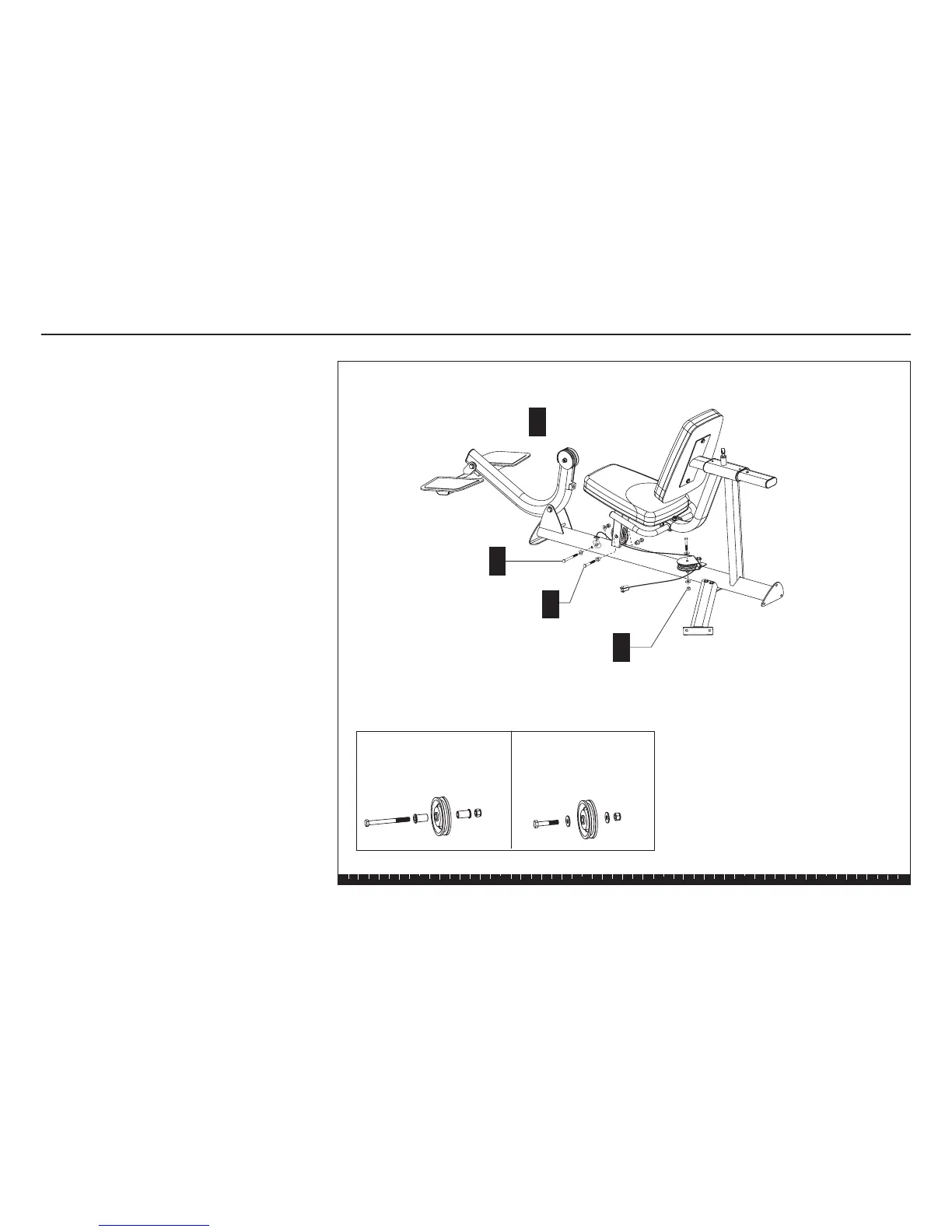

Step 4. Install the Leg Press Cable
B
C
D
1 - ³⁄₈" x 3¾" bolt
2 - washers
1 - locknut
1 - 2¾" bolt
2 - ½-inch shoulder spacers
1 - locknut
1 - 2¼" zinc bolt
2 - zinc washers
1 - zinc locknut
A
Lower the Leg
Press Arm.
3½-inch Pulley (used on gray
painted parts)
1 - bolt
2 - shoulder spacers
1 - locknut
Pulley assemblies
3½-inch Pulley (used on
titanium parts)
1 - zinc bolt
2 - zinc washers
1 - zinc locknut

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
