Precor move beyond S3.15 Assembly Instructions

S3.15 Leg Press Option Assembly Instructions
page 7
1 2 3 4 5 6

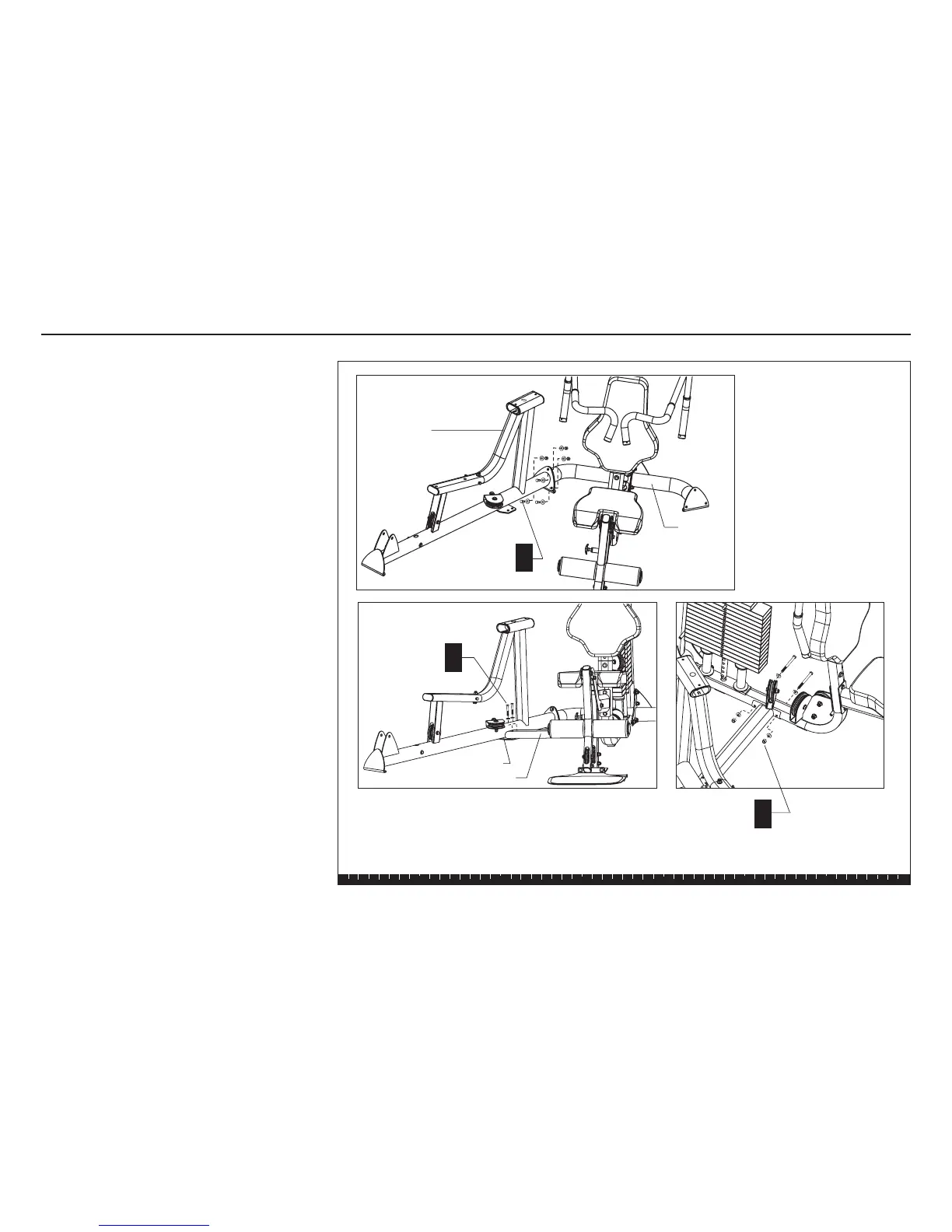

Step 1. Attach the Leg Press to the Main Unit
1. Attach the Leg Press to
the Main Unit
Important: Most fasteners are fitted to the frame or
pulleys, you may need to disassemble the fasteners
before proceeding with each step.
A. Attach the Leg Press Base to the Rear Crossbar
using
three 1¼-inch hex head bolts
three flat washers
three spring washers
three locknuts
B. Position the Crossbrace against the Main Base
and place it on top of the Leg Press flange. Attach
the Crossbrace to the Leg Press using
two 2¹⁄₄-inch hex head bolts
two flat washers
Note: If the Multi-Hip is already attached to the
S3.15 then, skip step C. You will need to remove
two washers and locknuts to attach the Leg Press.
Then, replace the washers and locknuts onto the
two existing 4¹⁄₄-inch hex head bolts.
C. Attach the Crossbrace to the Main Base using
two 4¹⁄₄-inch hex head bolts
four radius washers
two locknuts
D. Wrench tighten all fasteners.
Note: If you plan to install the S3.15 Multi-Hip
Option immediately after you complete the Leg
Press Option assembly, place the two washers and
locknuts on the fastener ends finger tight so they
provide stability, but can easily be removed.
B
A
3 - 1¼" bolts
3 - flat washers
3 - spring washers
3 - locknuts
2 - 4¹⁄₄" bolts
4 - radius washers
2 - locknuts
C
2 - 2¹⁄₄" bolts
2 - washers
Rear
Crossbar
Leg Press
Crossbrace
Leg Press flange

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
