Precor move beyond S3.15 Assembly Instructions

S3.15 Leg Press Option Assembly Instructions
page 9
1 2 3 4 5 6
3. Install the Leg Press Arm and
Footrest
A. Attach the Leg Press Arm to the Leg Press using
one ¹⁄₂-inch x 3¹⁄₂-inch bolt
two flat washers
one ¹⁄₂-inch locknut
Tighten the fasteners so that the Leg Press Arm is
secure and pivots easily.
CAUTION: The Footrest assembly is heavy
and the Leg Press Arm may drop suddenly
and cause injury. Ask an adult assistant to
hold on to the Leg Press Arm while you attach
the Footrest.
B. Attach the Footrest to the Leg Press Arm.
Have an assistant stabilize the Leg Press Arm
while you attach the Footrest using
one ½-inch by 3½-inch large zinc bolt
two ½-inch zinc washers
one ½-inch zinc locknut
Wrench tighten.

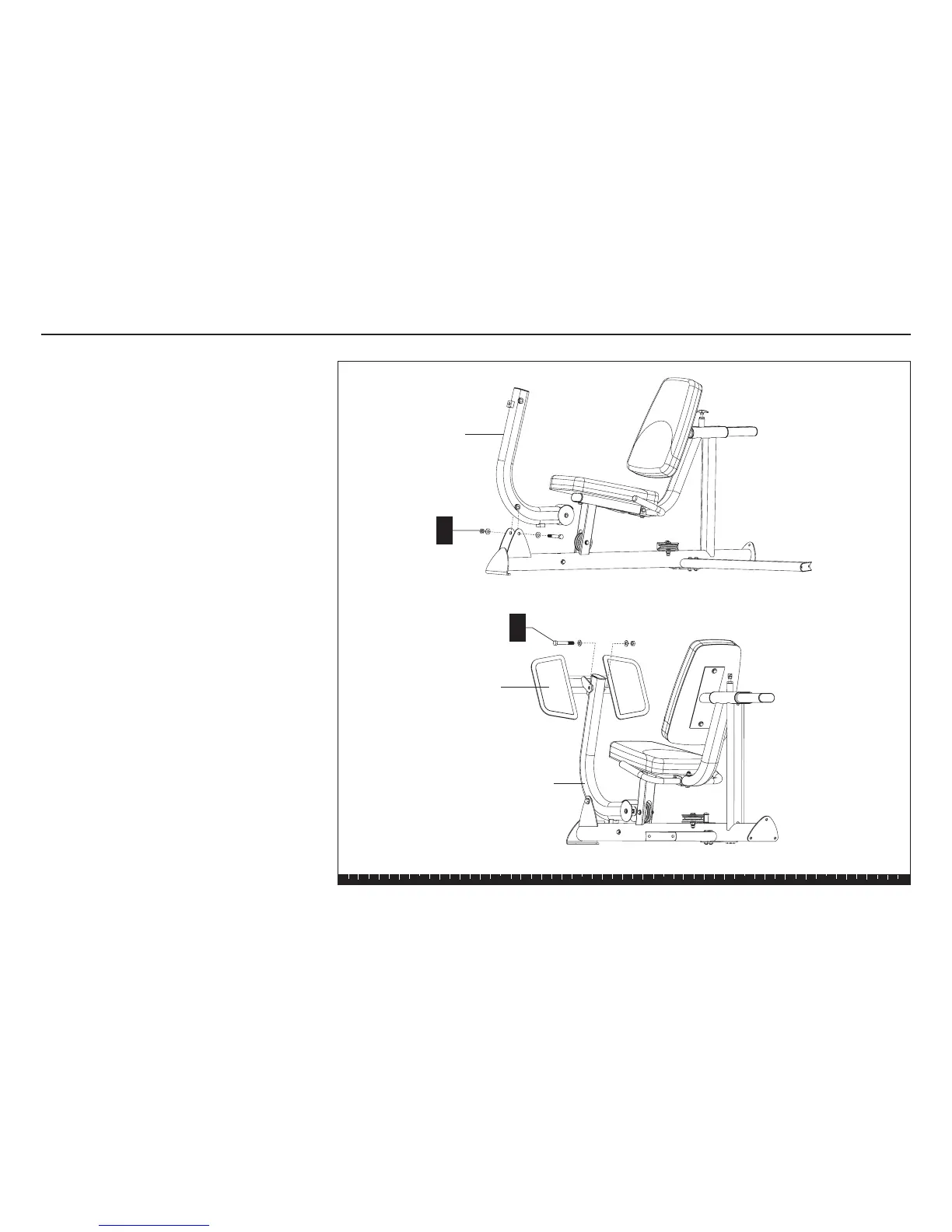

Step 3. Install the Leg Press Arm and Footrest
A
Leg Press Arm
1 - ¹⁄₂" x 3¹⁄₂" bolt
2 - washers
1 - ¹⁄₂" locknut
B
1 - ¹⁄₂" x 3¹⁄₂" zinc bolt
2 - ¹⁄₂" zinc washers
1 - ¹⁄₂" zinc locknut
Leg Press Arm
Footrest

Precor move beyond S3.15 Specifications

Weight and Dimensions

length	72 inches (182 cm)
height	83 inches (211 cm)
width	51 inches (130 cm)
shipping weight	221 lb (100 kg)
