S3.23 Assembly and Maintenance Guide
page 17
1 2 3 4 5 6
4
Adjustments and
Maintenance
Adjustments and Maintenance
When the S3.23 is completely assembled, you need to
check the cables for proper tension. Obvious signs that
cable problems exist include:
✔ Top Cap Weight does not rest squarely on the top
weight of the Weight Stack.
✔ Cable rubs the inside edges of the pulleys.
✔ Excess slack exists in the cable.
✔ Weight Pin cannot be easily inserted in or
removed from each hole in the Weight Stack.
✔ Selector Stem rubs inside the Weight Stack.
CAUTION: Take the time to perform the following
steps. If the cables do not have the proper tension
you could void the Precor Limited Warranty.
Important: To access cables and the Selector Stem,
you will need to remove the Shrouds.

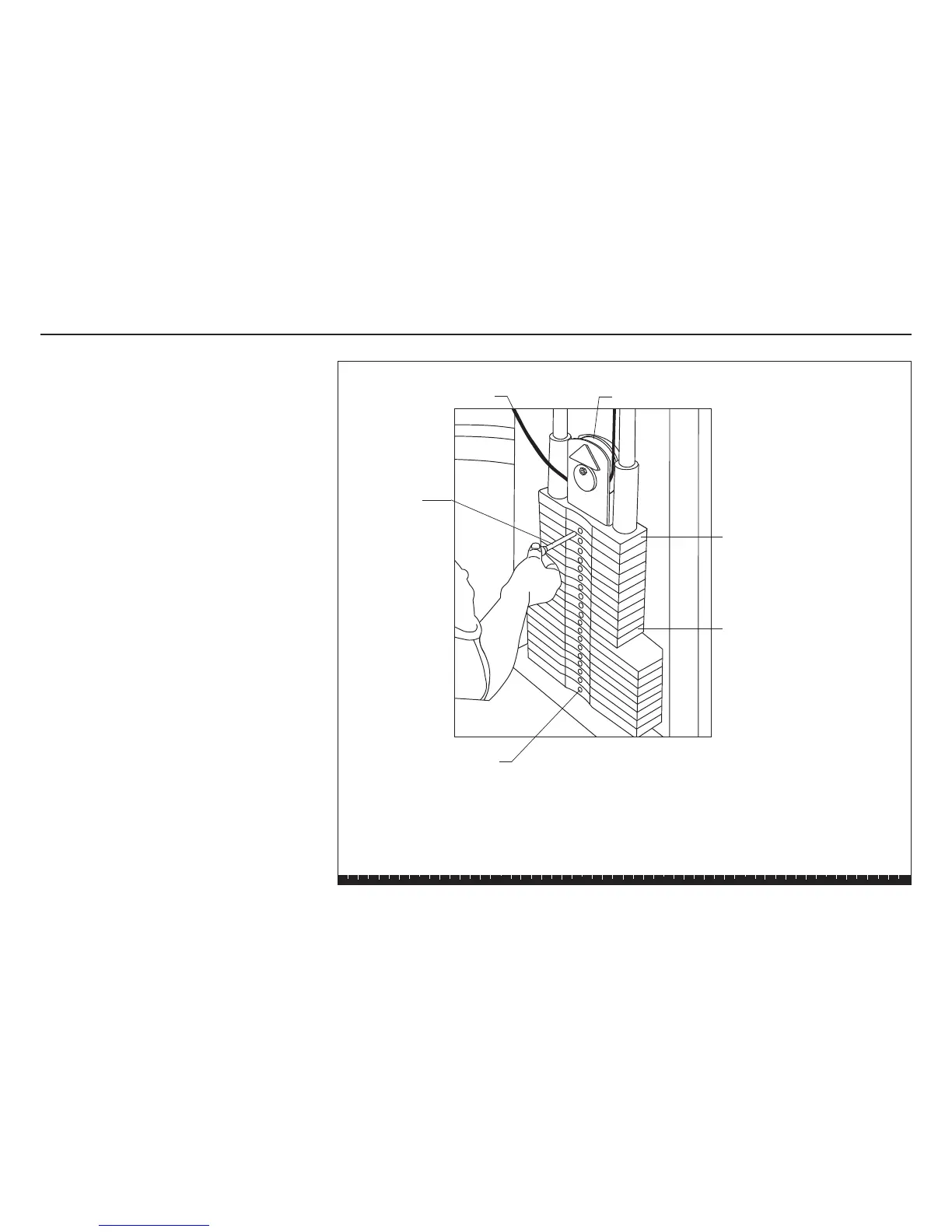

Top Cap Weight
Weight pin
A slack cable
Pulley
Weight Stack
Holes in Weight Stack
