S3.23 Assembly and Maintenance Guide
page 8
1 2 3 4 5 6
Main Uprights
4 - 2¹⁄₂" bolts
8 - washers
4 - locknuts
B

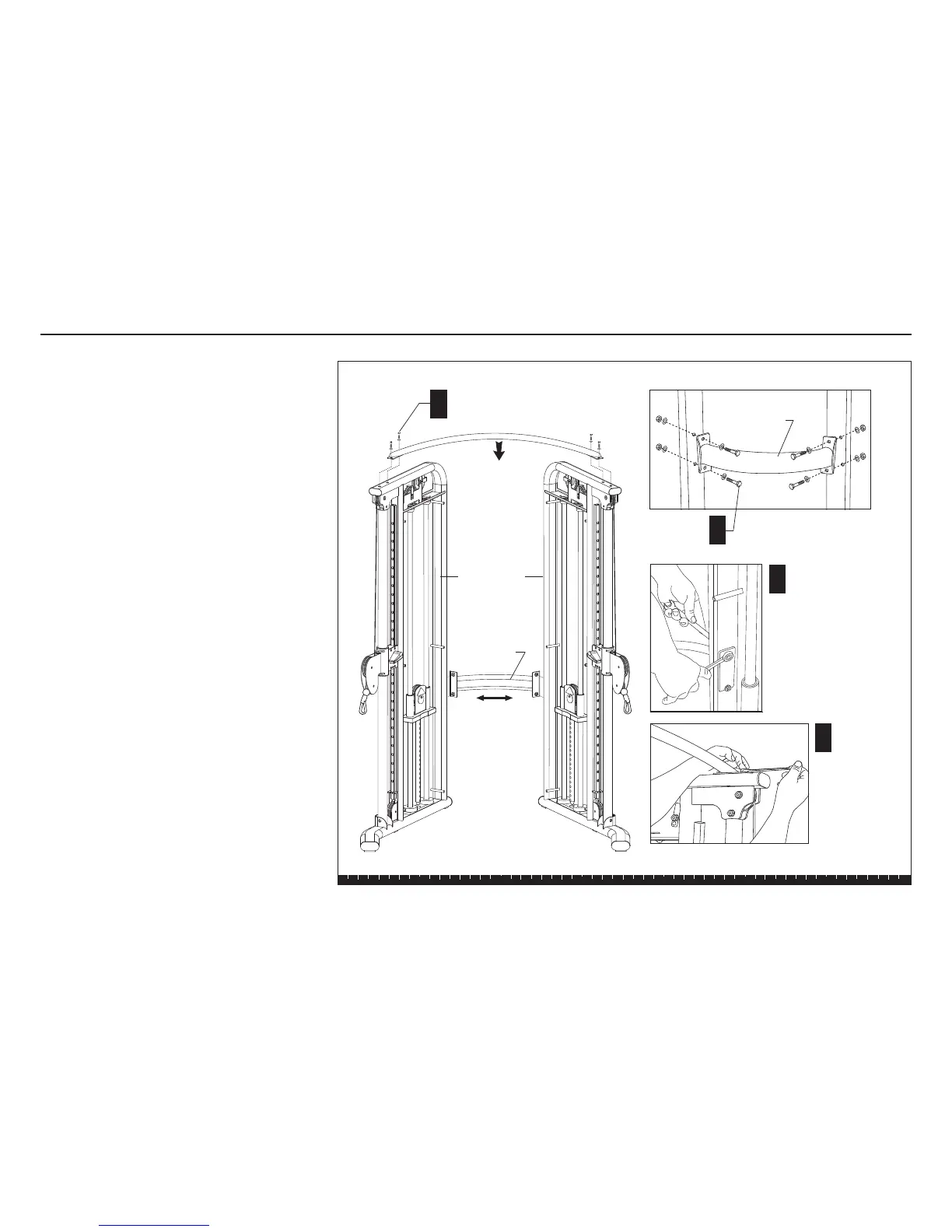

Step 1. Assemble Main Structure
1. Assemble Main Structure
A. Lift and stabilize the two Main Uprights.
B. Have an assistant hold the Main Uprights steady
while you attach the Mid Cross Brace using
four 2¹⁄₂-inch hex head bolts
eight washers
four locknuts
Note: Alternately finger tighten all four fasteners
while adjusting the alignment of the Main Uprights.
C. Attach the Chin-up Bar to the Main Uprights
using
four ³⁄₄-inch hex head bolts
four washers
CAUTION: Make sure that the assembled parts
are stable and balanced before your assistant
lets go of the Main Uprights.
D. Use two ⁹⁄₁₆-inch wrenches to tighten the fasteners
beginning with the Mid Cross Brace.
E. Wrench tighten the Chin-up Bar fasteners.
F. Set aside the accessories and handles found in
Box 1.
Mid Cross Brace
Attach Mid
Cross Brace
4 - ³⁄₄" bolts
4 - washers
C
Mid Cross
Brace
Rear view
D
E
Tighten four Mid
Cross Brace
fasteners.
Tighten four
Chin-up Bar
fasteners.

Precor move beyond S3.23 Specifications

Weight and Dimensions

length	38 inches (97 cm)
height	83 inches (211 cm)
width	52.5 inches (133 cm)
shipping weight	289 lb (131 kg)
