Adjustments and Maintenance, Continued

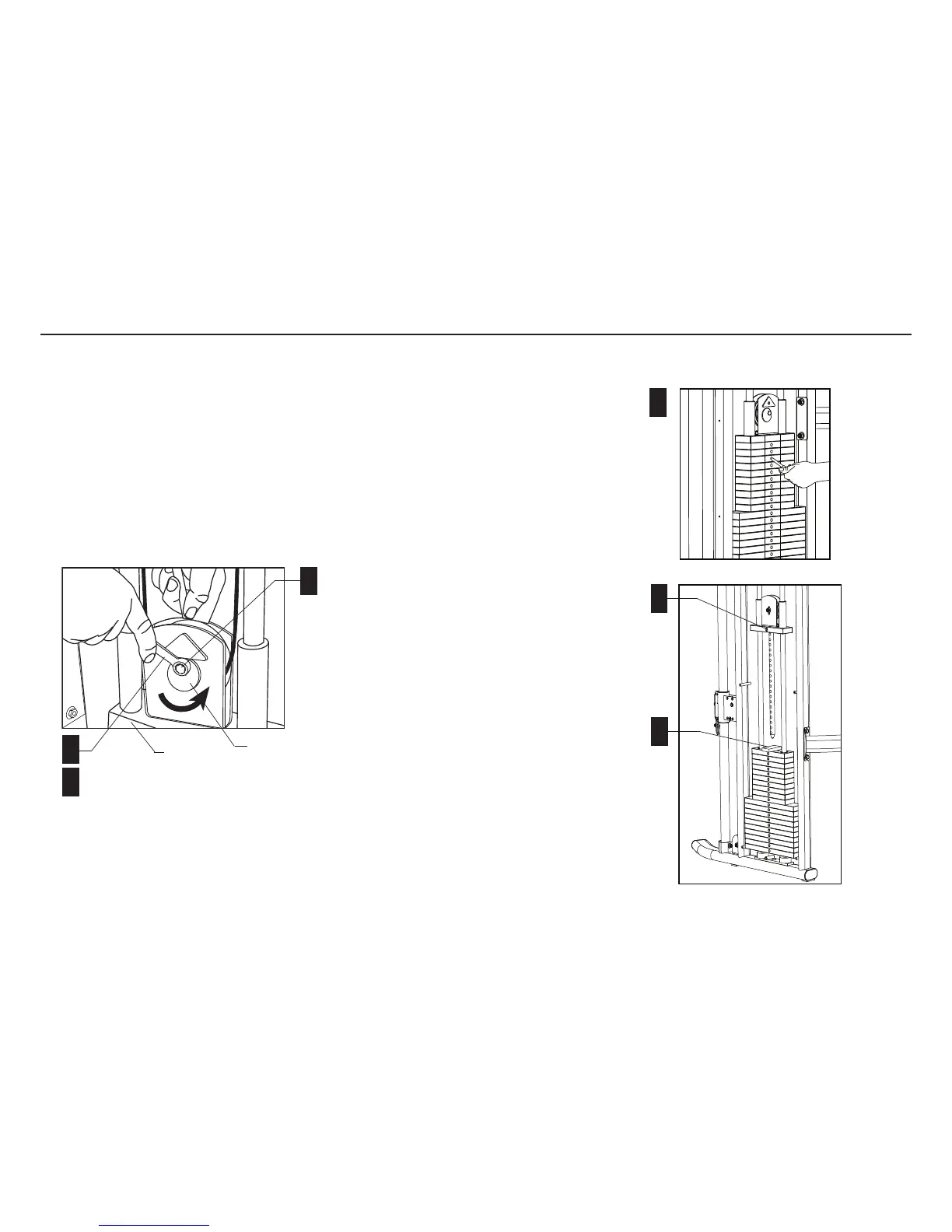

1. Cable Adjustments
The Cam Washer ensures easy cable adjustments.
A. To remove the slack in the cable. Use two ⁹⁄₁₆-inch
wrenches to loosen the fastener that holds the
Cam Washer.
B. Rotate the Cam Washer so that the slack is
removed.
C. Check the Top Cap Weight to make sure it remains
well-seated on the Weight Stack and then wrench
tighten the Cam Washer fasteners.
D. Check the Selector Stem alignment by inserting
the Weight Pin into every hole on the Weight Stack.
Cam Washer
Top Weight
Assembly
A
B
C
A
2. Selector Stem Adjustments
If the Selector Stem consistently strikes the inside of
the weight stack or it is misaligned with the Weight
Stack hole, you can re-center the Selector Stem by
taking the following steps:
A. To free the Selector Stem, remove the Weight Pin
from the Weight Stack.
B. Pull up the Selector Stem and place a cover over
the opening in the Weight Stack. Rest the Selector
Stem on the cover.
C. Use an 8mm hex key to loosen the socket head
bolt in the center of the Top Cap Weight.
Important: Do not remove the socket head bolt.
D. Remove the cover from the Weight Stack and
lower the Selector Stem so the Top Cap Weight
rests on the Weight Stack.
E. To lock the Selector Stem, insert the Weight Pin
into the Weight Plate hole at the bottom of the
Weight Stack.
F. Wrench-tighten the socket head bolt in the center
of the Top Cap Weight.
G. Check the adjustment by inserting the Weight Pin
into every Weight Plate hole. The Weight Pin
should slide easily in and out of each Weight Plate
and Selector Stem.
H. Insert the Weight Pin into the appropriate Weight
Plate for your level of fitness.
J. Replace the Shroud, if necessary.
C
B

Precor move beyond S3.23 Specifications

Weight and Dimensions

length	38 inches (97 cm)
height	83 inches (211 cm)
width	52.5 inches (133 cm)
shipping weight	289 lb (131 kg)
