S3.23 Assembly and Maintenance Guide
page 6
1 2 3 4 5 6
3
Assembly
Instructions
Assembly Instructions

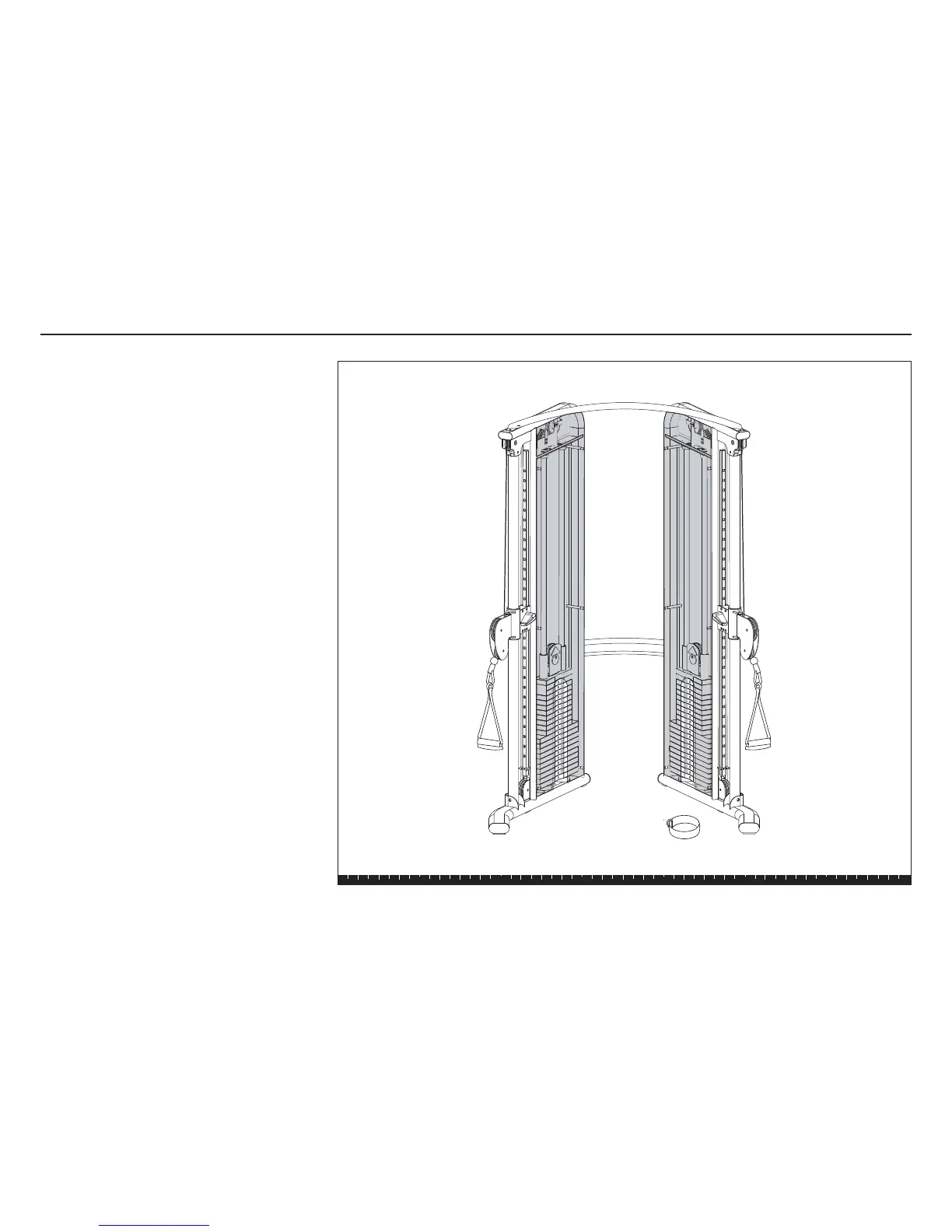

Assembly of the S3.23 takes professional installers
about 1 hour to complete. If this is the first time you
have assembled this type of equipment, plan on
significantly more time.
Professional installers are highly recommended!
However, if you acquire the appropriate tools, obtain
assistance, and follow the assembly steps sequentially,
the process will take time, but is fairly easy.
CAUTION: Obtain assistance! Do not attempt to
assemble the S3.23 by yourself. Review the
Installation Requirements on page 6 before
proceeding with the following steps.
The S3.23 comes in two long boxes with four smaller
boxes of weights.
Be careful to open boxes and assemble components
in the sequence presented in this manual.
Note: With so many assembled parts, proper alignment
and adjustment is critical. While tightening the fasteners,
be sure to leave room for adjustments. Do not fully
tighten fasteners until instructed to do so.
