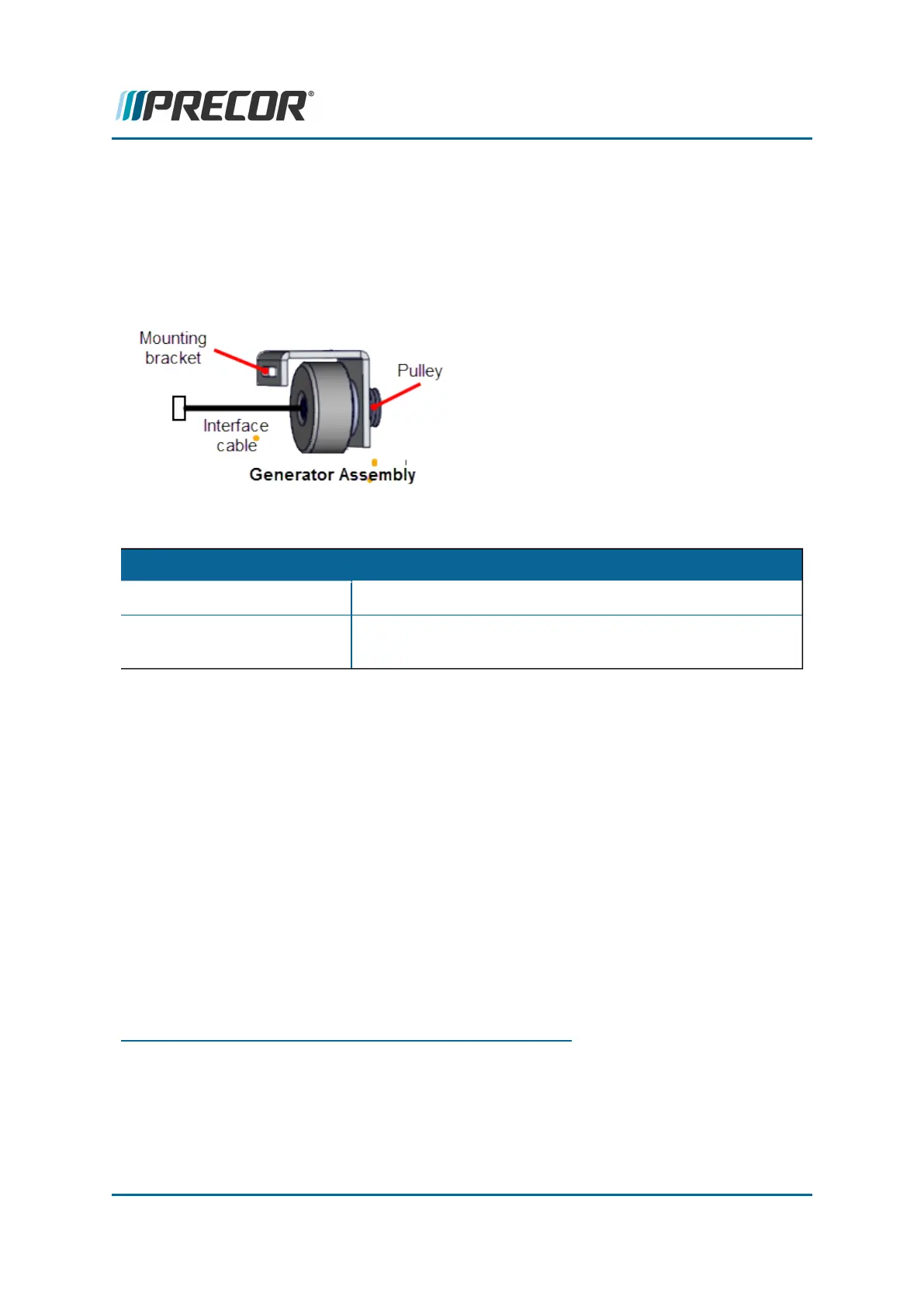

Generator Assembly Replacement
Applies To: (Spinner® Chrono
1
™ Power models only)
About
This procedure provides instruction to remove and install the Generator Assembly.
Specifications
System Component Specification
Generator Belt Tension 1/4 in (6.5 mm) belt deflection
Generator Output Voltage: approx. 9 Vac @ 60 rpm
Current: approx. 0.4 amps @ 60 rpm
Procedure
Review entire procedure before starting.
Removal procedure
1. Remove the front and rear drive belt covers, see "Belt Guard Cover Replacement" on
page47.
2. Remove all brake resistance by turning the resistance knob counter clockwise (-).
3. Disconnect the generator interface cable from the LPCA
2
- 5 connector. Cut the two
cable ties that hold the cable to the cross member and remove.
1
Spinner® Chrono™ Power bike.
2
Lower Printed Circuit Assembly board; also refered to as the Lower PCA or simply as the
lower board. On treadmills, it is the console to base function interface and the motor con-
troller unit (MCU). On self-powered units, it is the lower PCA console to base function inter-
face.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 98
5 Replacement Procedures
Generator Assembly Replacement
