Belt Guard Cover Replacement
About
This procedure provides instruction to remove and install the front and rear Belt Guard
Covers.

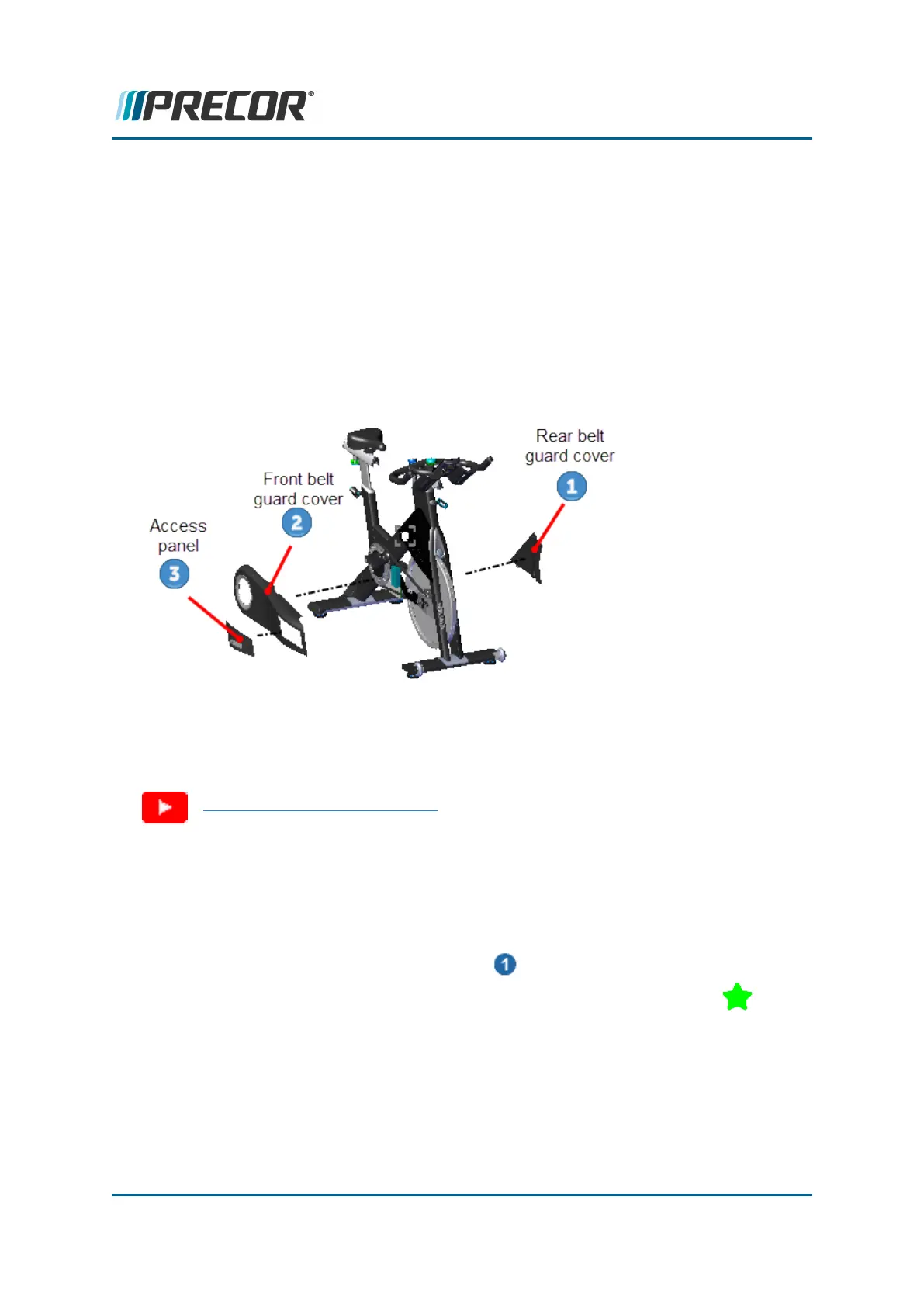

The front belt guard cover includes an access panel used to access the right tensioner nut
and axle nut. It is easiest to remove the rear guard cover first and then the front guard cover,
install in reverse order. All rear guard fasteners must be removed before the front guard can
be removed.
Available Movies
(Internet Only)
Belt Guard Cover Replacement
Procedure
Review entire procedure before starting.
Removal instructions
1.
Remove the rear (left side) belt guard cover by removing the three outer 5 mm hex
key fasteners (3x) and then the center 4 mm fastener (1x). Remove center 4 mm
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 47
5 Replacement Procedures
