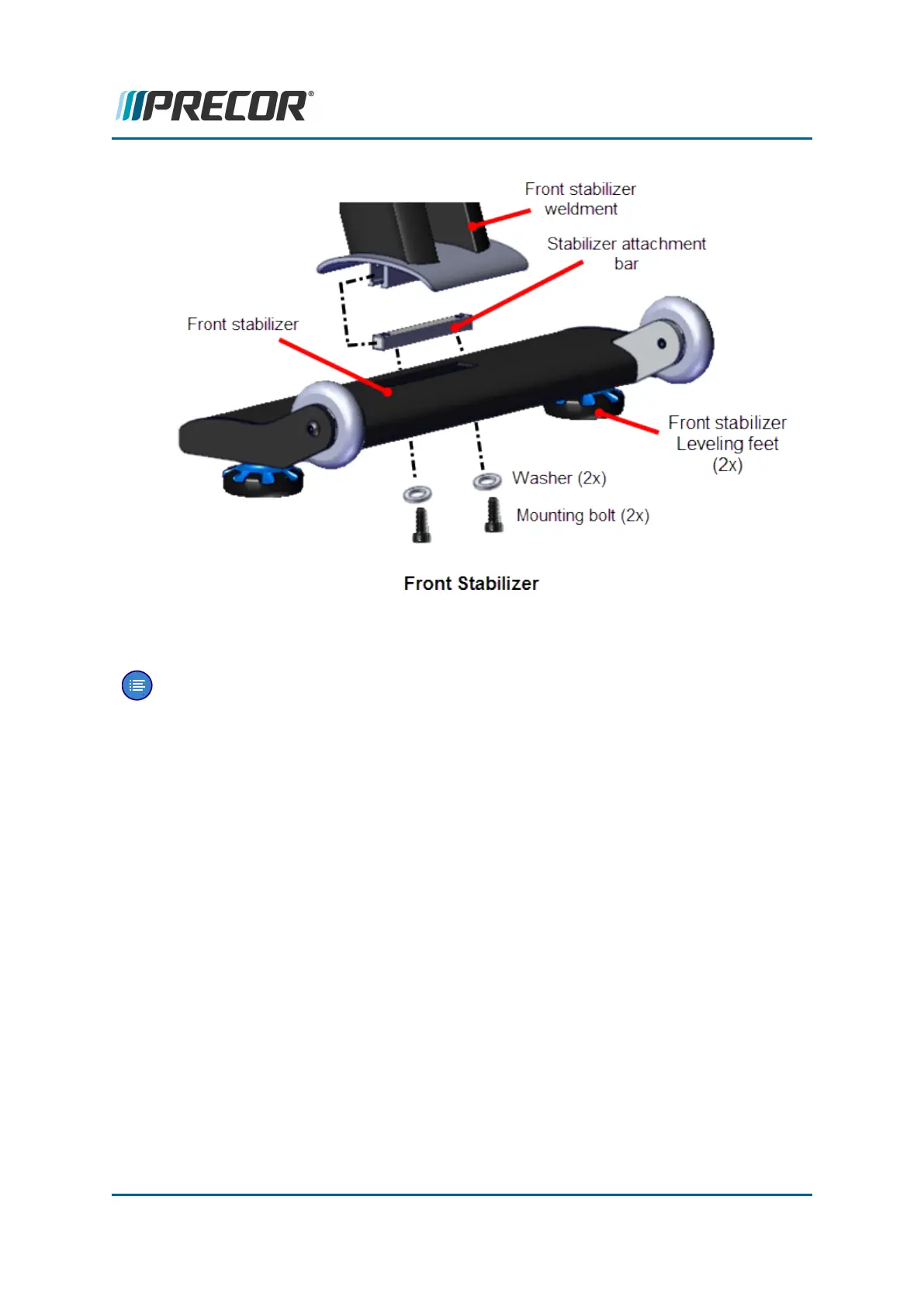

3. Remove the front stabilizer by removing the two 6 mm hex key mounting bolts (2x)
and washers (2x). Retain part(s) and/or fastener(s) for installation.
NOTE:The stabilizer attachment bar can slide out of the weldment mounting
bracket. Make sure the attachment bar remains in position and not lost between
removal and installation.
Installation Instructions
1. Center the stabilizer attachment bar into the front stabilizer weldment bracket.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 138
5 Replacement Procedures
Stabilizer Replacement
