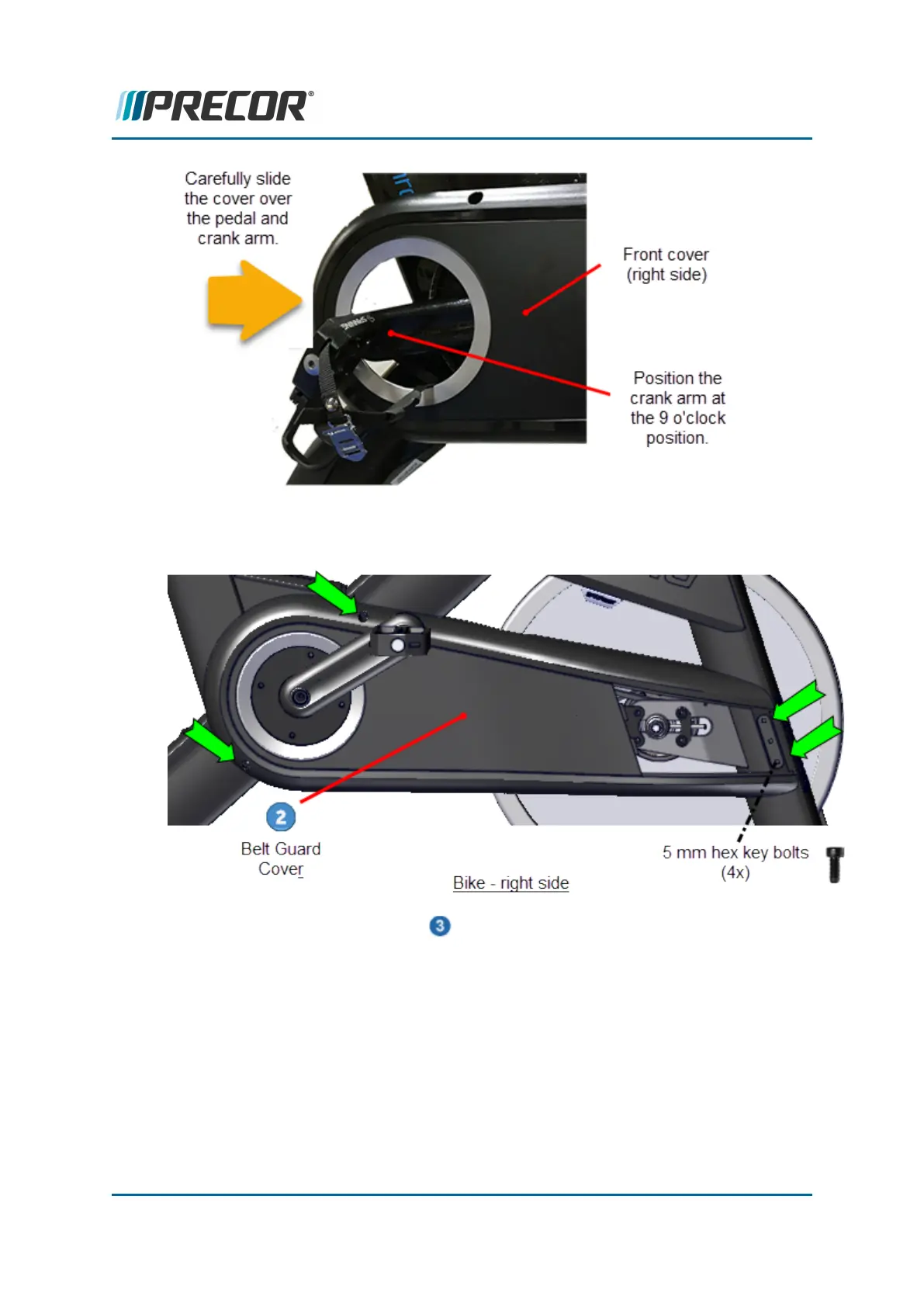

2. Position the cover over the frame cover mounting bolts and secure using the 5 mm
hex key fasteners (4x).
3.
Install the front cover access panel onto the front belt cover, insert the left side
tabs first and close. Secure using the removed 5 mm hex key bolt (1x).
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 50
5 Replacement Procedures
Belt Guard Cover Replacement
