Assembling the Treadmill
7
Attaching the Handrail Assembly
The handrail assembly arrives with cables already threaded inside of it. Before
attaching the handrail assembly, remove any kinks in the cables.
CAUTION: Be aware of the handrail extensions when you are working around the front
of the unit. It is easy to bump your head or sustain other injuries if you ignore the
location of the handrail extensions.
To attach the handrail assembly:
1. Ask your assistant to hold the handrail assembly while you connect the base
unit data cable between the left base support and the left side of the handrail
assembly.

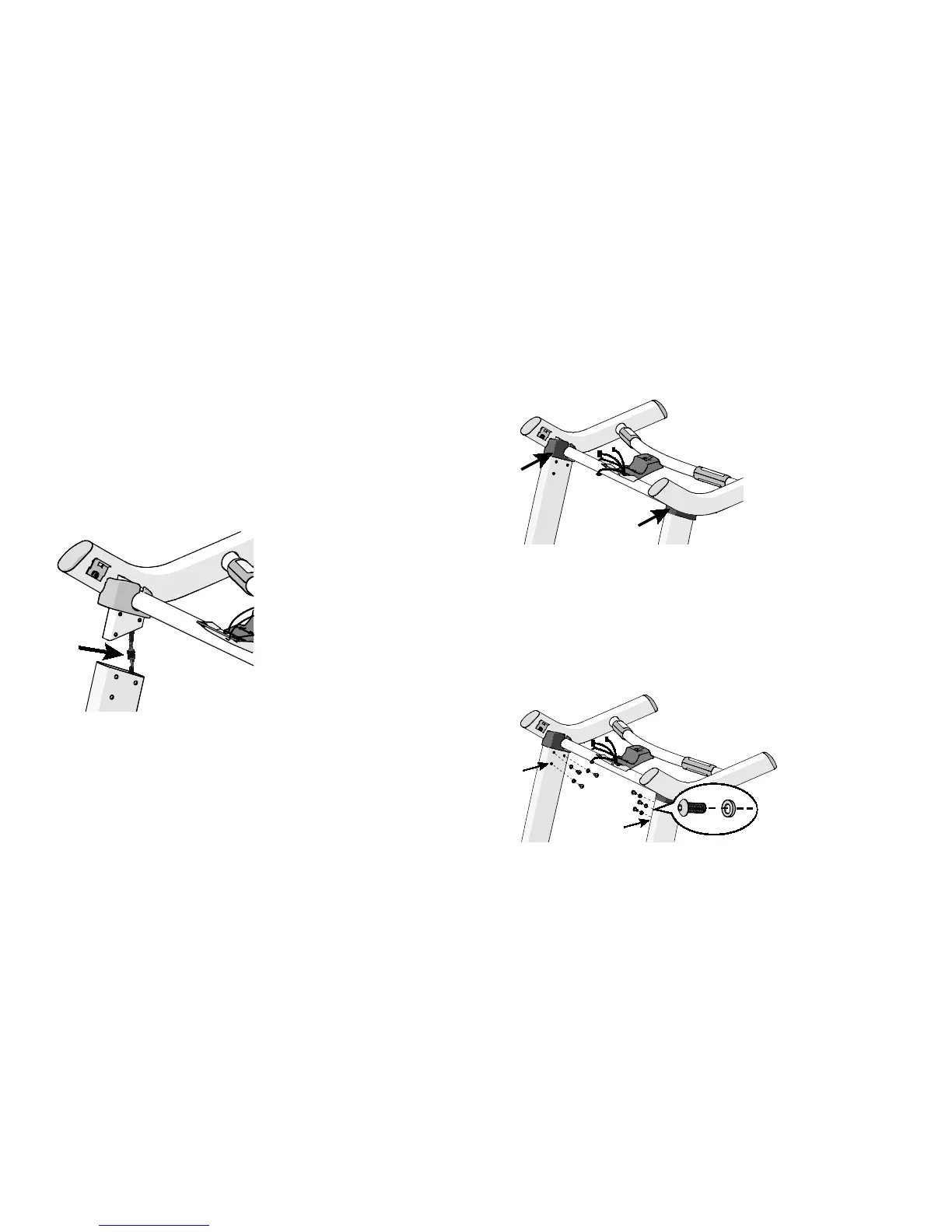

Figure 7: Base unit data cable connection
2. Remove the wire tie from the cable and place any excess cable inside the
upright support.
3. Have your assistant hold the handrail assembly above the upright supports.
Tip the assembly forward so the mounting brackets slide along the interior
rails inside the upright supports.
4. Check the rubber rail bumpers to make sure they are fitted smoothly on the
equipment without bulges or wrinkles.
Figure 8: Rubber bumper locations
5. Align the mounting holes and secure the handrail using six M8 x 15 mm
buttonhead cap screws and six washers. Partially tighten the fasteners.
Important: Make sure the fasteners and assembled parts do not pinch the cable.
Cables damaged by improper installation will not be covered by the Precor Limited
Warranty.
Note: Thread the bottom hole first on either side. This will help line up the
other holes.
Figure 9: Handrail attachment and location of bottom hole
