30 Assembling and Maintaining TRM 800-Series Treadmills
3. Route the upper end of the base unit data cable from the
top of the upright support on your left (shown as position
1 in the following figure) through the spacing ring
(position 2) and up through the cable channel on your left
(position 3). Bend the ends of the cable ties around the
data cable to hold it in place.

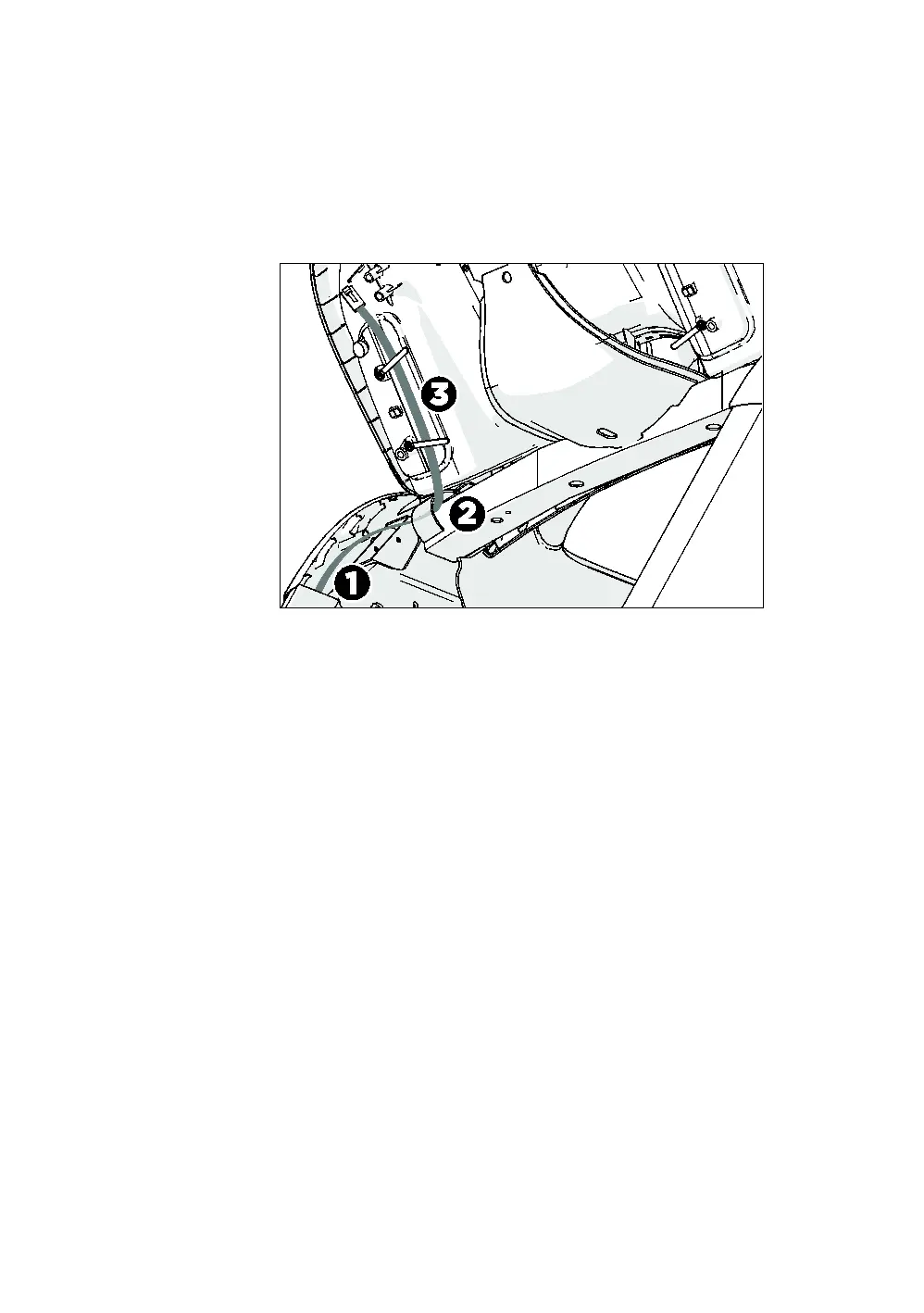

Figure 11: Base unit data cable positioning
