Assembling the Treadmill 31
4. Route the upper end of the console cable assembly from
the top of the upright support (position 1 in the following
figure) through the spacer ring (position 2) and the
right-hand cable channel in the fairing (position 3), then
wrap the ties next to the channel around the cable
assembly to secure it.

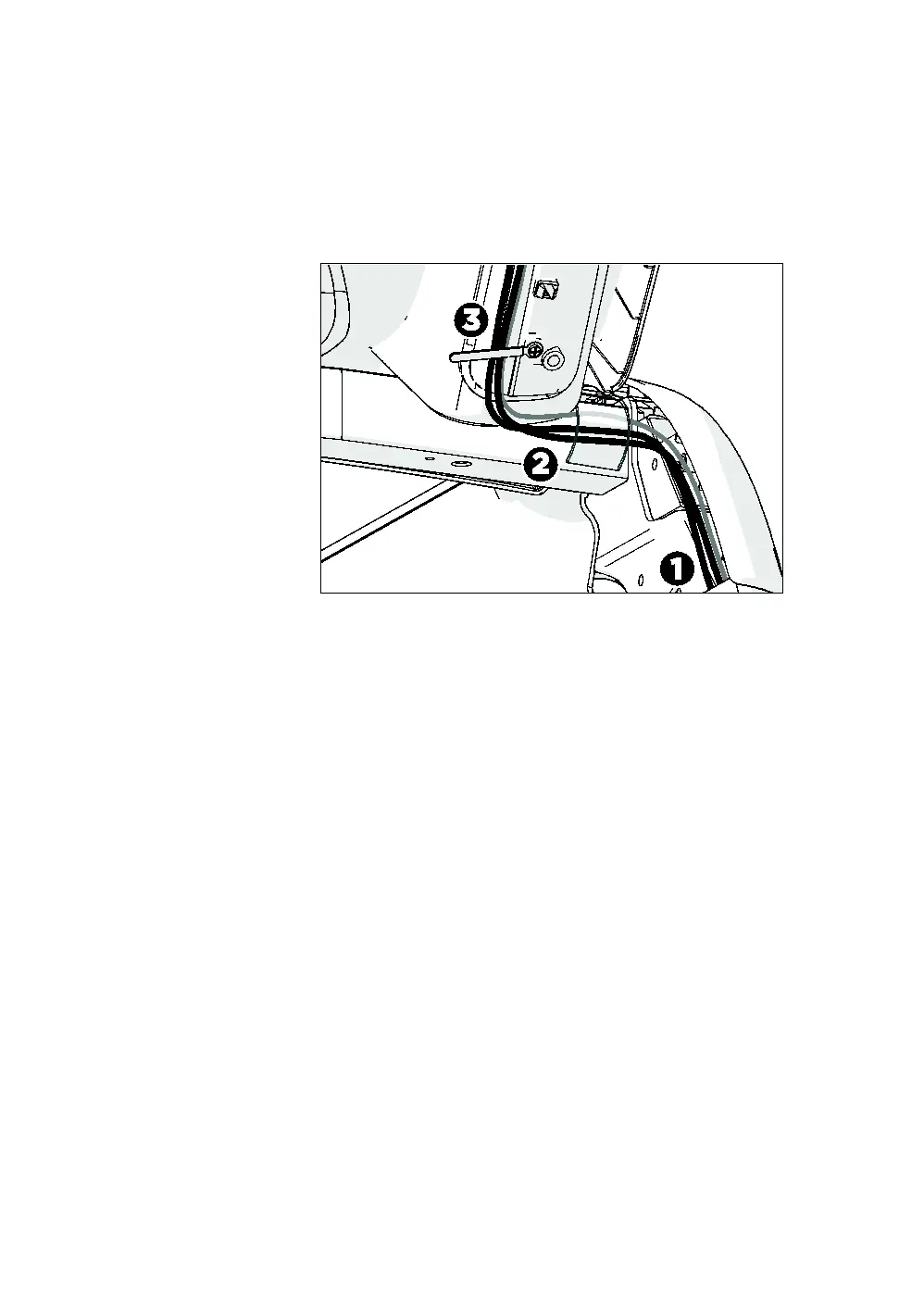

Figure 12: Console cable assembly positioning
Important: Do not wrench-tighten the fasteners in the
following step until the unit has been fully assembled. Make
sure the cables are not pinched between any fasteners and the
body of the equipment, or between the arm covers and the
upright supports. The Precor Limited Warranty does not cover
cables damaged by improper installation.
