Section 2 - INTRODUCTION
© Copyright 2006 PREO SRL
All rights reserved
EAW530E2MV
Edition
03/2006
2.6 SAFETY LABELS
All the PREO gluing systems bear yellow labels indicating the main precautions and
safety warnings to be adhered to and respected during ordinary and extraordinary
use of the system.
2.7 MAIN APPLICATOR COMPONENTS

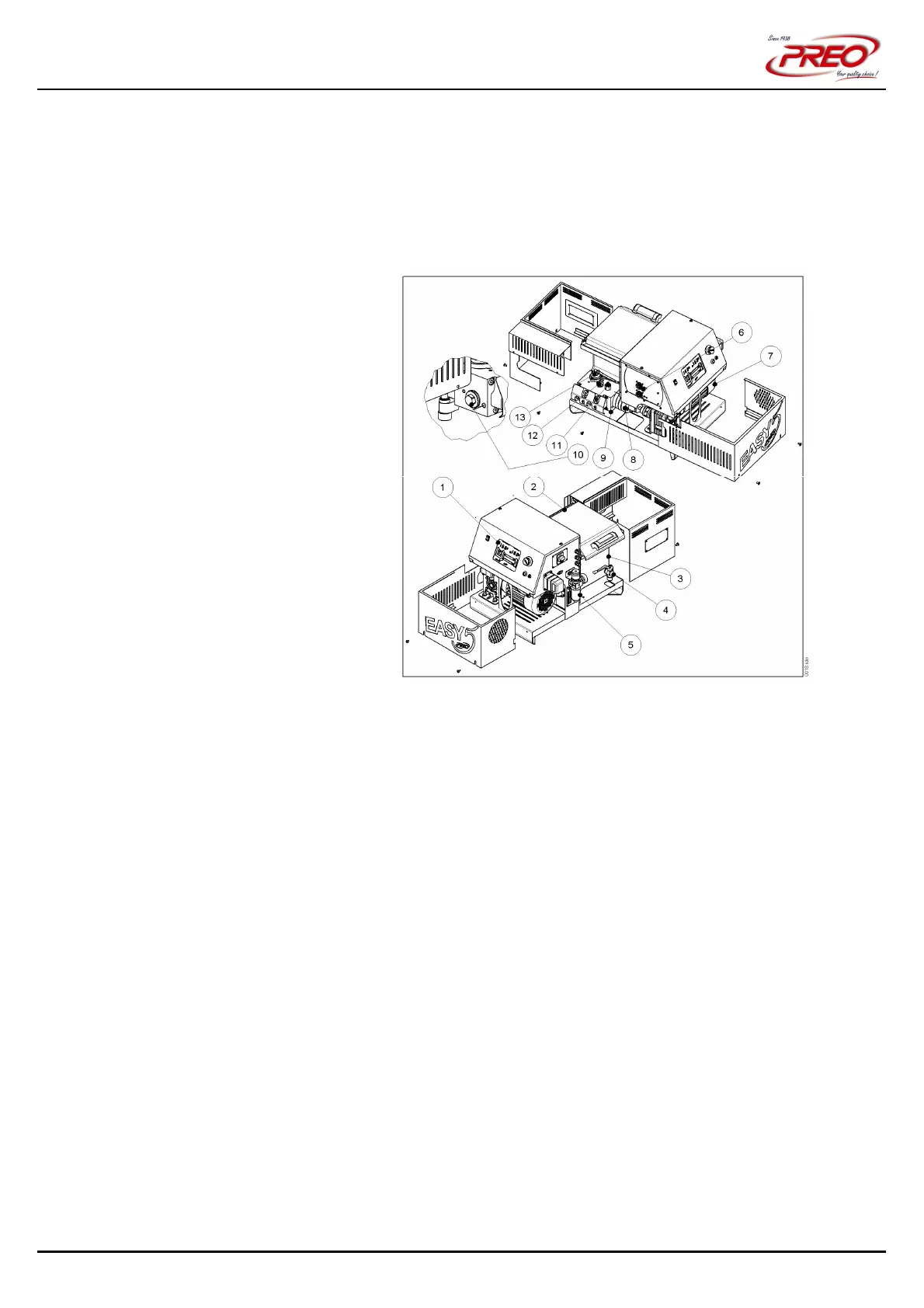

Figure 4 identifies the main applicator components:
Figure 4
1 - Control panel
2 - Tank cover
3 - Melting tank
4 - Tank drainage valve
5 - Air filter pressure regulator (optional)
6 - Hose connection electrical connectors
7 - Motor
8 - Gear pump
9 - Manifold
10 - Glue filter
11 - By pass
12 - Pressure control pressure switch (optional)
13 - Quick release valve (optional)
