Section 3 - INSTALLATION
11
© Copyright 2006 PREO SRL
All rights reserved
EAW530E2MV
Edition
03/2006
3.7 PNEUMATIC SUPPLY CONNECTION

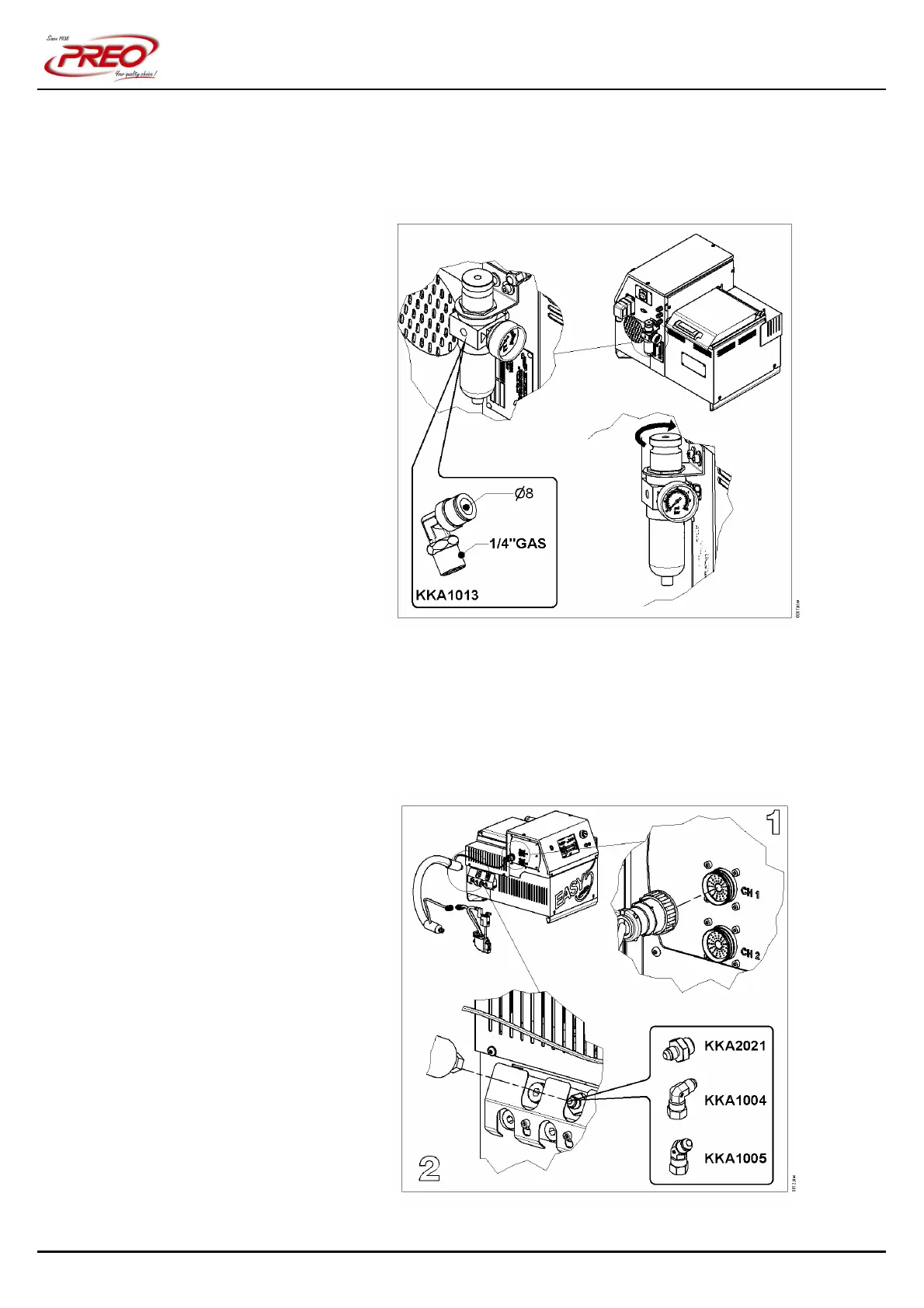

Connect a mains air supply to the air filter opening, as illustrated in figure 10, and
set the applicator working air pressure using the pressure regulator, turning it in a
clockwise direction.
Figure 10
We recommend using dehumidified compressed air.
The recommended pressure is 6 bar.
3.8 HEATED HOSE CONNECTION
Wire and plumb in the hoses to the respective connectors, as illustrated in figure
11, bearing the following aspects in mind:
Figure 11
