Section 7 – TECHNICAL OUTLINES AND SPARE PARTS
35
© Copyright 2006 PREO SRL
All rights reserved
EAW530E2MV
Edition
03/2006
7.2 USING THE EXPLODED DIAGRAMS AND PARTS TABLES
The following pages feature illustrations relative to the various groups comprising
the applicator.
A table containing a list of components, subdivided into columns indicating the
Code, Description and Quantity of pieces required, is included for every illustration.

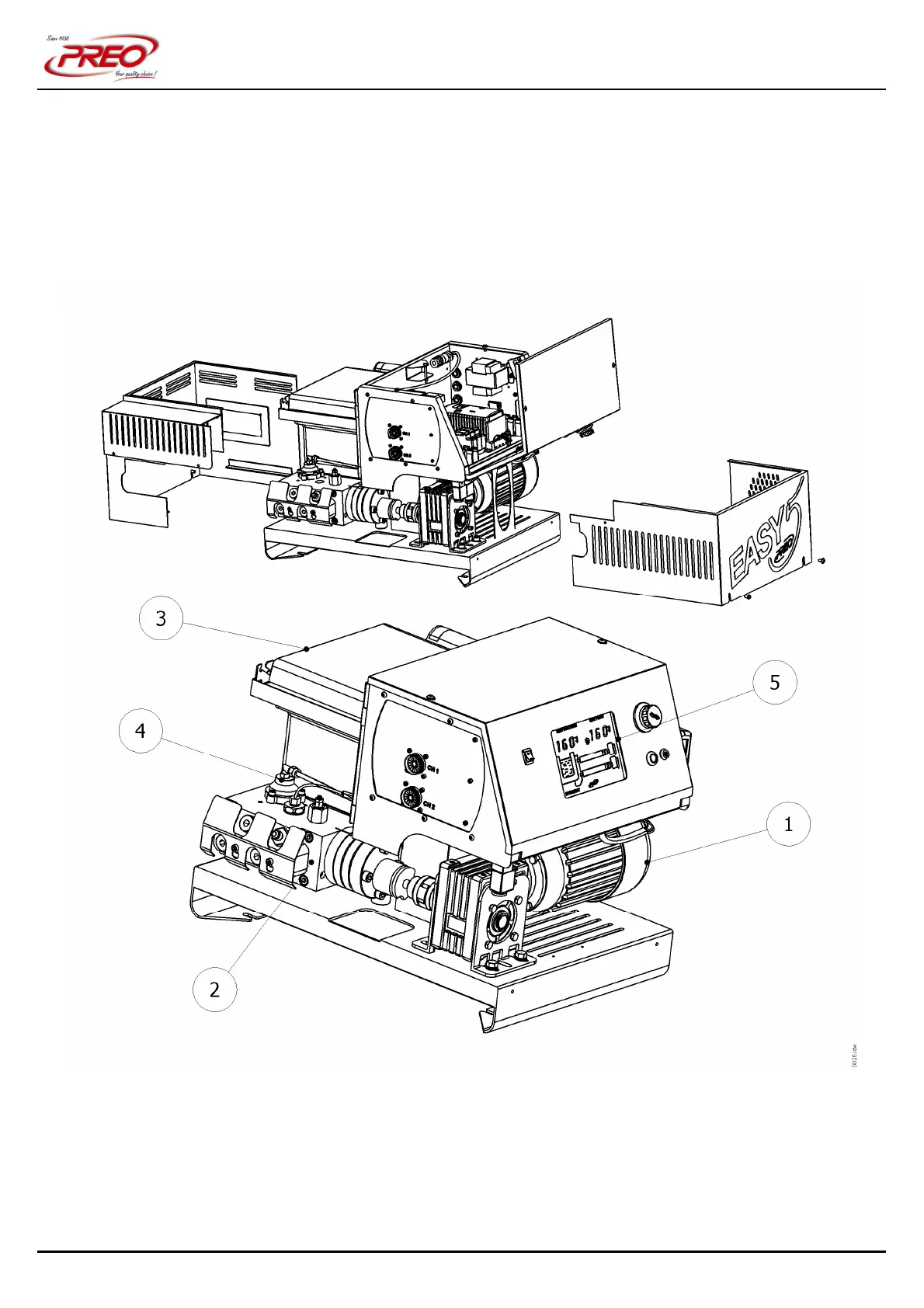

7.3 GENERAL ENSEMBLE
1 – GEAR PUMP MOTOR GROUP, 3.0 CC EASY SERIES
2 – EASY SERIES MANIFOLD GROUP + VALVE + PRESSURE GAUGE
3 – EASY SERIES TANK GROUP 5 KG GEARS
4 – EASY SERIES QUICK RELEASE VALVE
5 – EASY SERIES COMPUTER BOX GROUP
