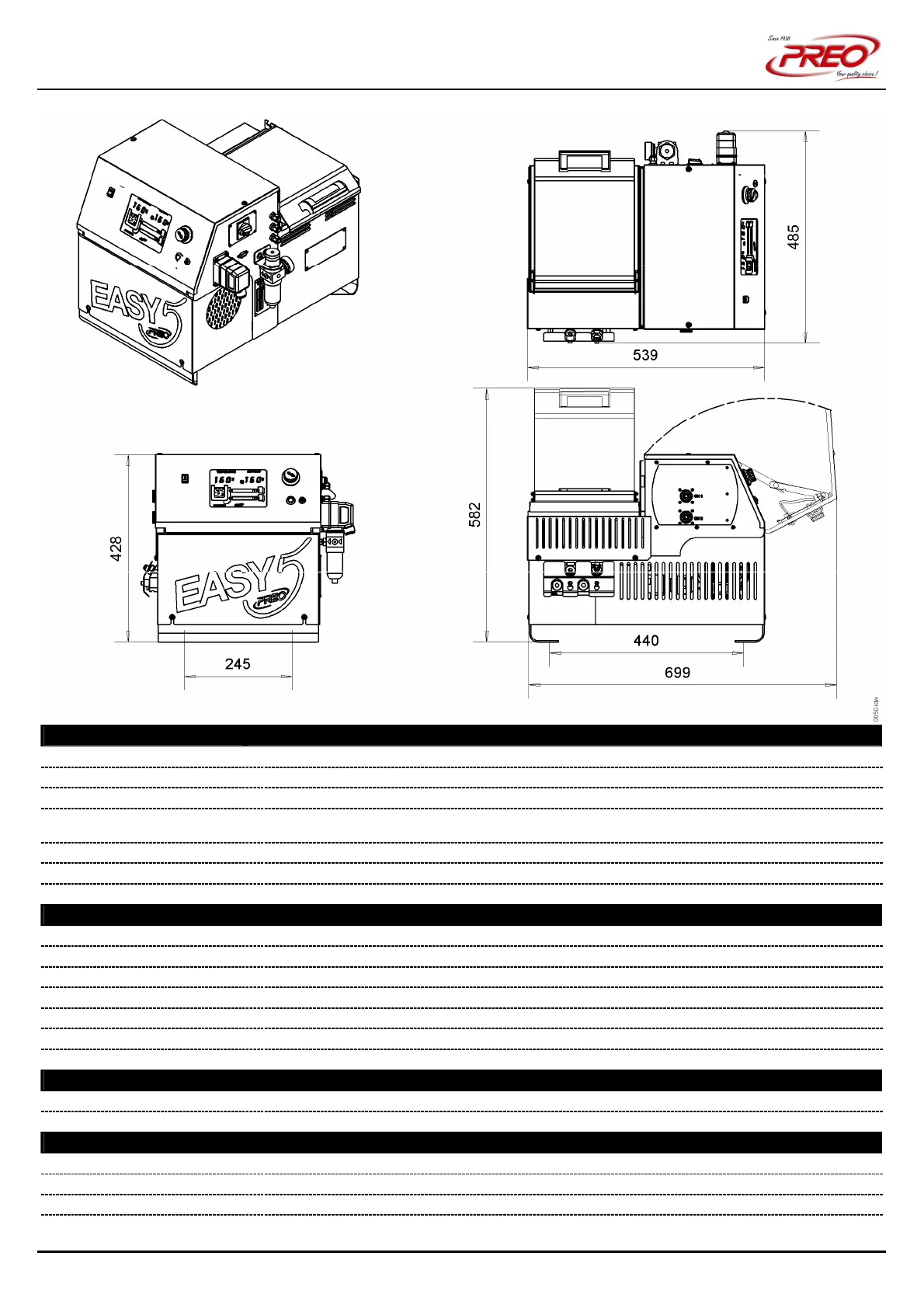

Section 7 – TECHNICAL OUTLINES AND SPARE PARTS
© Copyright 2006 PREO SRL
All rights reserved
EAW530E2MV
Edition
03/2006
GENERAL CHARACTERISTICS
WEIGHT 35 kg
FIXTURE eyelets for M8 screws
TANK OPENING DIMENSIONS 180 x 155 mm
NO . INSTALLABLE HOSES AND
CONNECTIONS
1 ÷
÷÷
÷ 4 (with or without integrated glue treatment programmer)
USABLE ADHESIVE VISCOSITY hot-melt up to 70,000 mPas
SAFETY BY - PASS calibrated to 55 bar
MAXIMUM WORKING PRESSURE 55 bar
HOT-MELT UNIT
TANK CAPACITY 5 kg
MELTING CAPACITY 9 Kg/h (varies depending on type of adhesive used)
WORKING TEMPERATURE
50°C ÷
÷÷
÷ 210°C
THERMAL PRECISION
±
±±
± 1°C
SET - POINT OBTAINMENT TIME
35’ ÷
÷÷
÷ 40’ starting from room temperature
TEMPERATURE REGULATION via microprocessor
INTERNAL TANK COATING PTFE scratch-resistant, non-stick treatment
ELECTRICAL DATA
POWER SUPPLY 380 VAC 50 Hz three-phase + neutral
INSTALLED POWER AND AMPERAGE 3000 Watt – 14.0 A (without hoses and guns)
PLUMBING CIRCUIT DATA
PUMP TYPE AND MAXIMUM SPEED simple flow gear pump, 3.0 cc/rev x 80 rpm
MAXIMUM PUMP CAPACITY 14 Kg/h (varies depending on type of adhesive used)
MOTOR SPECIFICATIONS 0.25 with reducer ratio 1:20 and variable speed controlled by vectorial inverter
PUMP ENABLEMENT - 5°C from set - point
