3.5 APPLICATOR ASSEMBLY

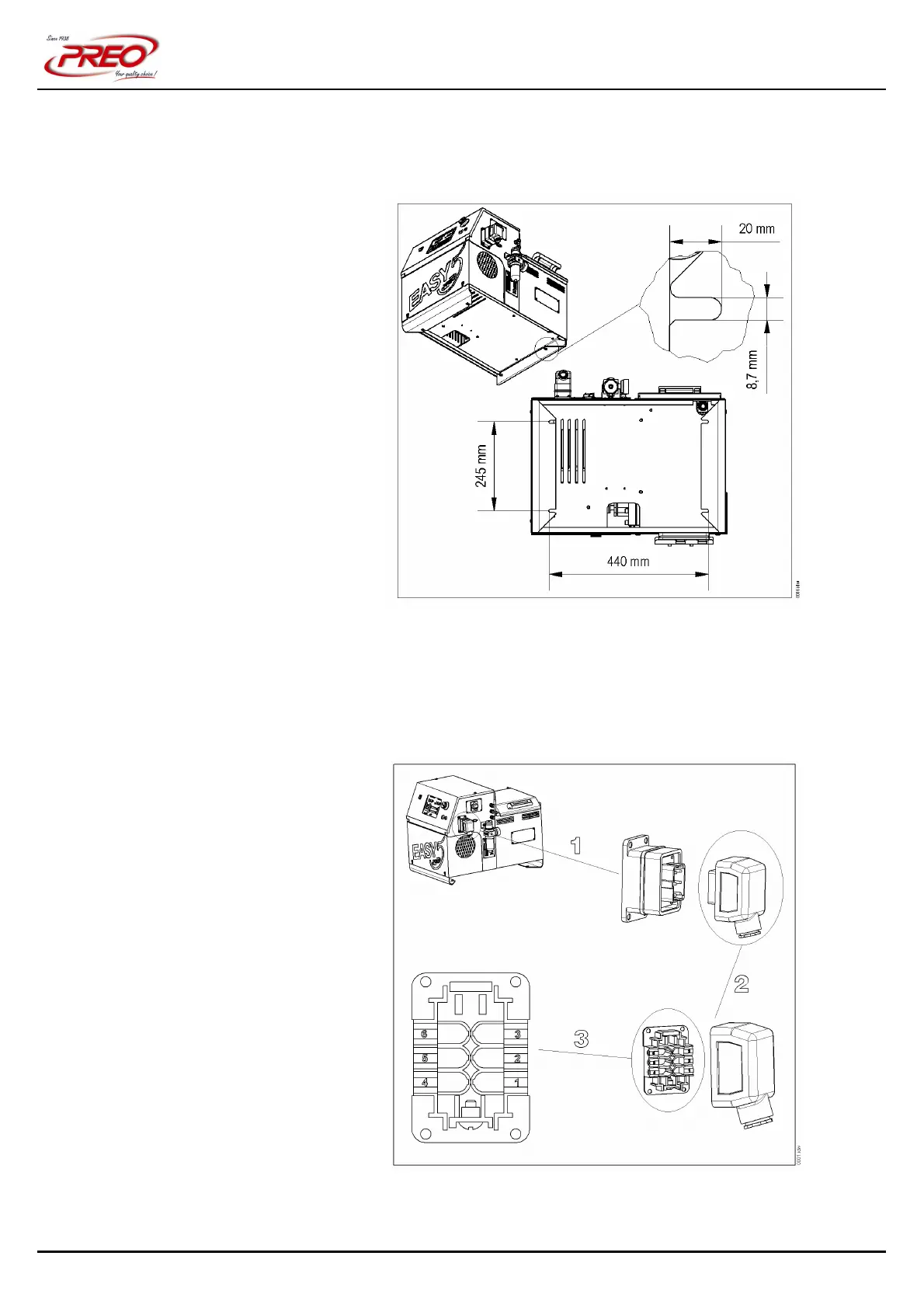

Refer to figure 7, which illustrates how to secure the applicator to the assembly
surface using 8 mm bolts.
Figure 7
3.6 POWER SUPPLY CONNECTION
Make sure that the lines are able to power the machine correctly, in compliance
with safety regulations. Earth the entire machine correctly. In order to make the
connection, you will need a suitable power cable (not supplied with the applicator).
Refer to figure 8 for correct power supply connection.
Figure 8
