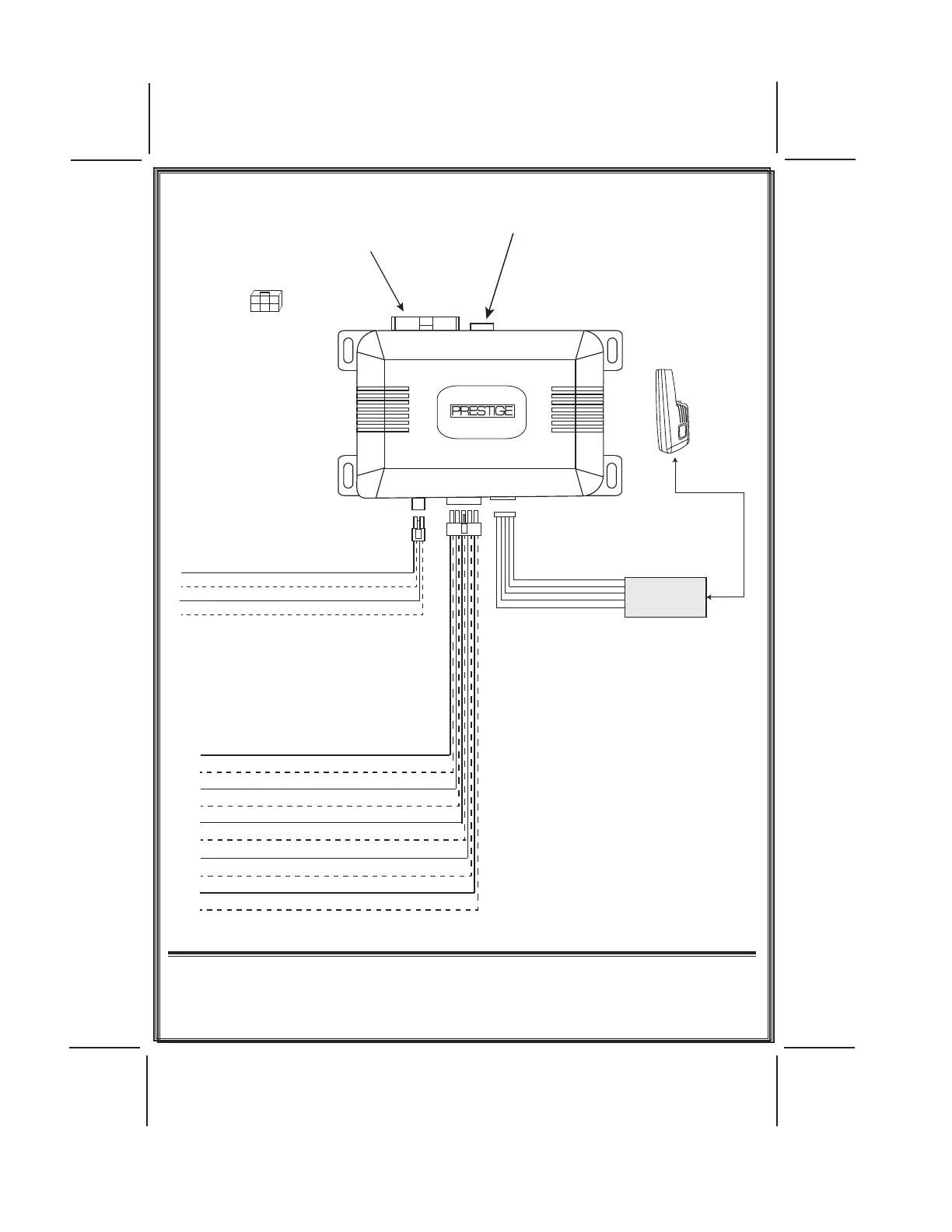

APSRS1Z
To Mating Connector
Push Button
LED Transceiver
Connect Data Module
DBI Protocol
Yellow/Black (To controlling Alarm’s Ign Input)
White (Parking Light Relay Output)
Black (Chassis Ground)
White/Red (Parking Light Relay Input)
Wire Side View Of Connector
1 Blue (Ign 1)
2 Red/White (+ 12VDC Relays Ign 1 & Ign 2)
3 Green (Ign 2)
4 Purple (Accessory)
5 Red (+ 12VDC Relays ACC & Start)
6 Yellow (Starter)
123
456
1 Green/Orange (Tach Input)
3 Black/Blue (- Pulse Before Start Output)
4 Black/LT.Green (- Pulse After Start Output)
5 LT. Blue (Ground Out While Running)
6 Green/Yellow (Glow Plug Input)
7 Brown (+ Inhibit Wire - Brake Switch)
8 Gray (- Negative Inhibit Wire - Hood Pin)
9 Black/Red (- Pulse After Shut Down Output)
10 Black/Yellow (- Pulse During Crank Output)
2 Empty Cavity No Connection
Blue (LED -)
Grey (Valet)
Black (-)
Green (RX)
Red (+)
