CHAIR DRIVES

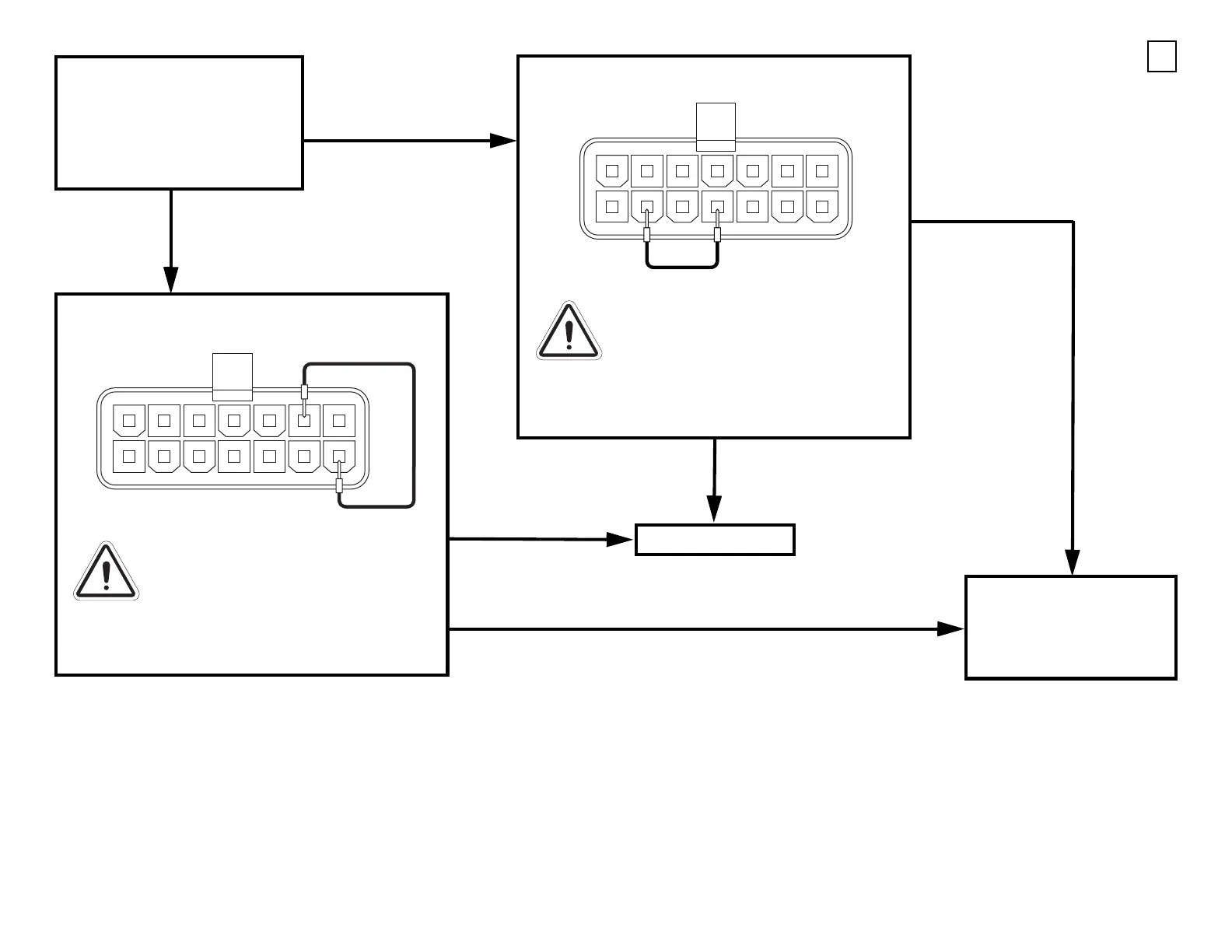

Disconnect the PTO/inhibit
harness connector (or the 14-
pin run plug, if equipped)
from the power module.
THE CHAIR HAS AN
NE JOYSTICK
THE CHAIR HAS AN NE+
OR Q-LOGIC JOYSTICK
14 13 12 11 10 98
76543 21
POWER MODULE CONNECTOR
PLACE A JUMPER BETWEEN PIN 4 AND
PIN 6, THEN TRY TO DRIVE THE CHAIR.
WARNING! Jumping the incorrect
pins could cause sparking and/or
damage to the electronics.
14 13 12 11 10 98
76543 21
POWER MODULE CONNECTOR
PLACE A JUMPER BETWEEN PIN 1 AND
PIN 9, THEN TRY TO DRIVE THE CHAIR.
WARNING! Jumping the incorrect
pins could cause sparking and/or
damage to the electronics.
CHAIR DOES
NOT DRIVE
Go to the next page.
CHAIR DOES
NOT DRIVE
Replace the PTO/inhibit
harness (or 14-pin run
plug if so equipped) and
retest the system.
CHAIR DRIVES
