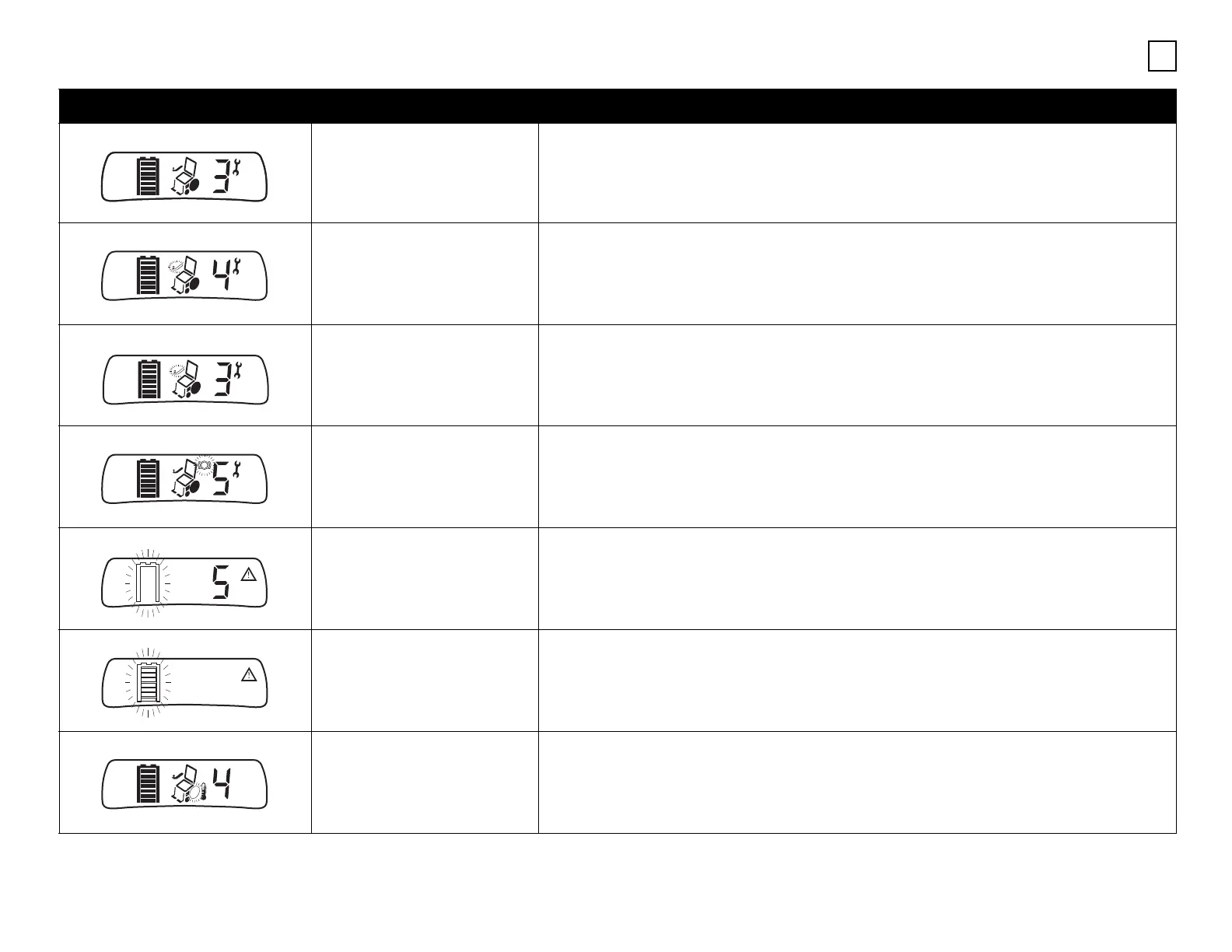

LCD DISPLAY DIAGNOSIS SOLUTION
Power Section Error Cycle power. Check power module and NE joystick module connections and wir-
ing. See Section 3.
Joystick Not Centered Release joystick and make sure the joystick is in the center position. Power off and
on again. Check connections. See Section 3.
Communications Error
Check joystick cable connections. See Section 3.
Motor/Brake Error Check motor/brake connections. See Section 3.
Low Battery Voltage
Charge batteries. See Section 3.
High Battery Voltage
Disconnect charger. Contact Quantum Technical Support for further troubleshoot-
ing. See Section 3.
Drive Thermal Warning Allow motors to cool. Contact Quantum Technical Support for further trouble-
shooting. See Section 3.
Table 1. Q6 Edge with NE Electronics Error Codes
