Pride Q6 Edge - Page 23

123
456

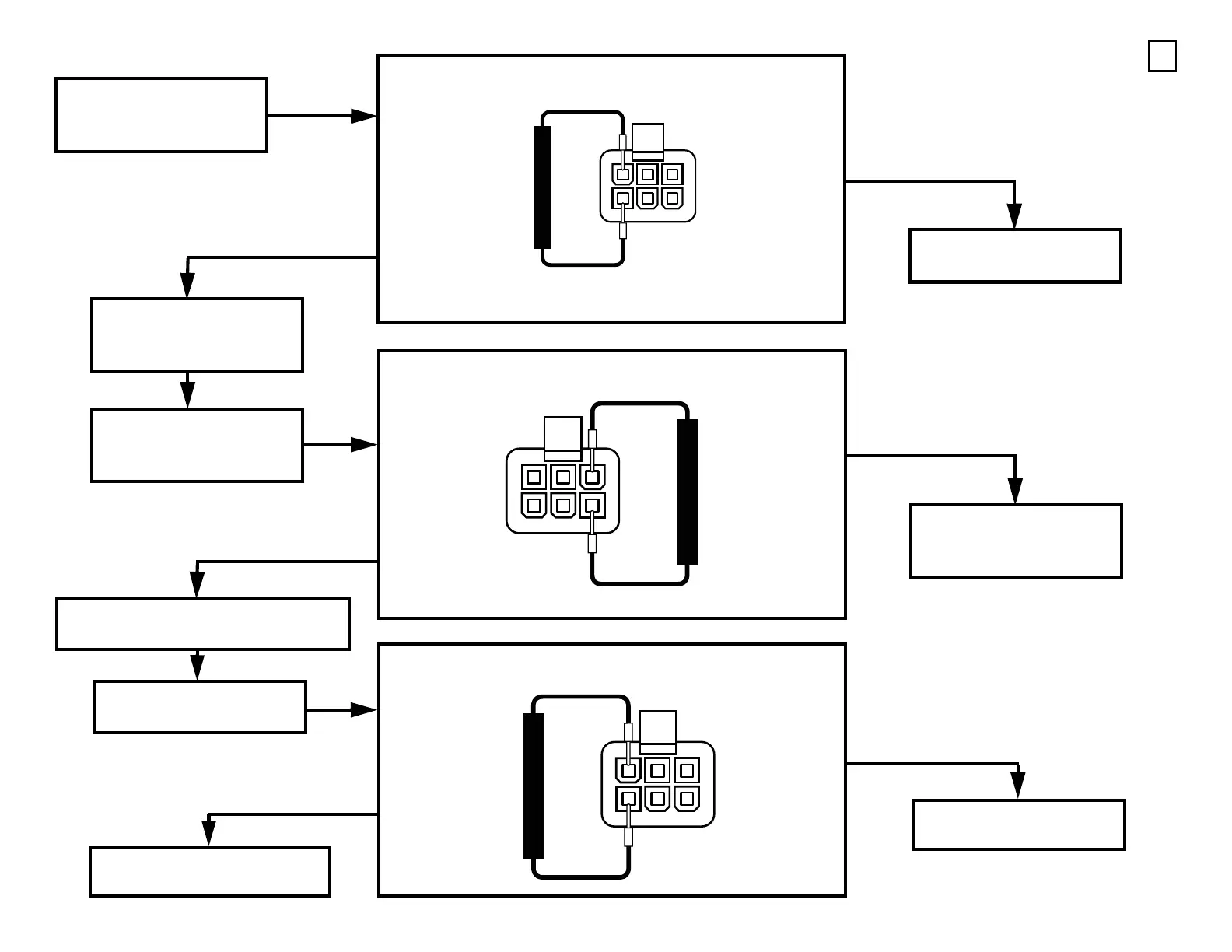

Measure Voltage
THE VOLTAGE IS DIFFERENT
THAN THE BATTERY CABLE
MEASUREMENT TAKEN ON
PAGE 22.
23
THE VOLTAGE IS DIFFERENT
THAN THE BATTERY CABLE
MEASUREMENT TAKEN ON
PAGE 22.
Replace the power mod-
ule and retest the system.
THE VOLTAGE IS THE SAME
AS THE BATTERY CABLE
MEASUREMENT TAKEN ON
PAGE 22.
Plug the BUS cable
extension harness back
into the power module.
Unplug the BUS cable
extension from the bus
cable.
BUS CABLE EXTENSION
1 2 3
4 5 6
Measure Voltage
BUS CABLE
THE VOLTAGE IS DIFFERENT
THAN THE BATTERY CABLE
MEASUREMENT TAKEN ON
PAGE 22.
Replace the BUS cable
extension and retest the
system.
Unplug the BUS cable
extension harness from
the power module.
THE VOLTAGE IS THE SAME
AS THE BATTERY CABLE
MEASUREMENT TAKEN ON
PAGE 22.
Plug the BUS cable extension back
into the BUS cable.
Unplug the BUS cable
from the joystick.
Replace the BUS cable
and retest the system.
THE VOLTAGE IS THE SAME
AS THE BATTERY CABLE
MEASUREMENT TAKEN ON
PAGE 22.
Replace the joystick and retest
the system.
1 2 3
4 5 6
Measure Voltage
BUS CABLE EXTENSION PORT
(NOTE: If the power chair is equipped with a power position-
ing system, refer to that particular power positioning system. )
