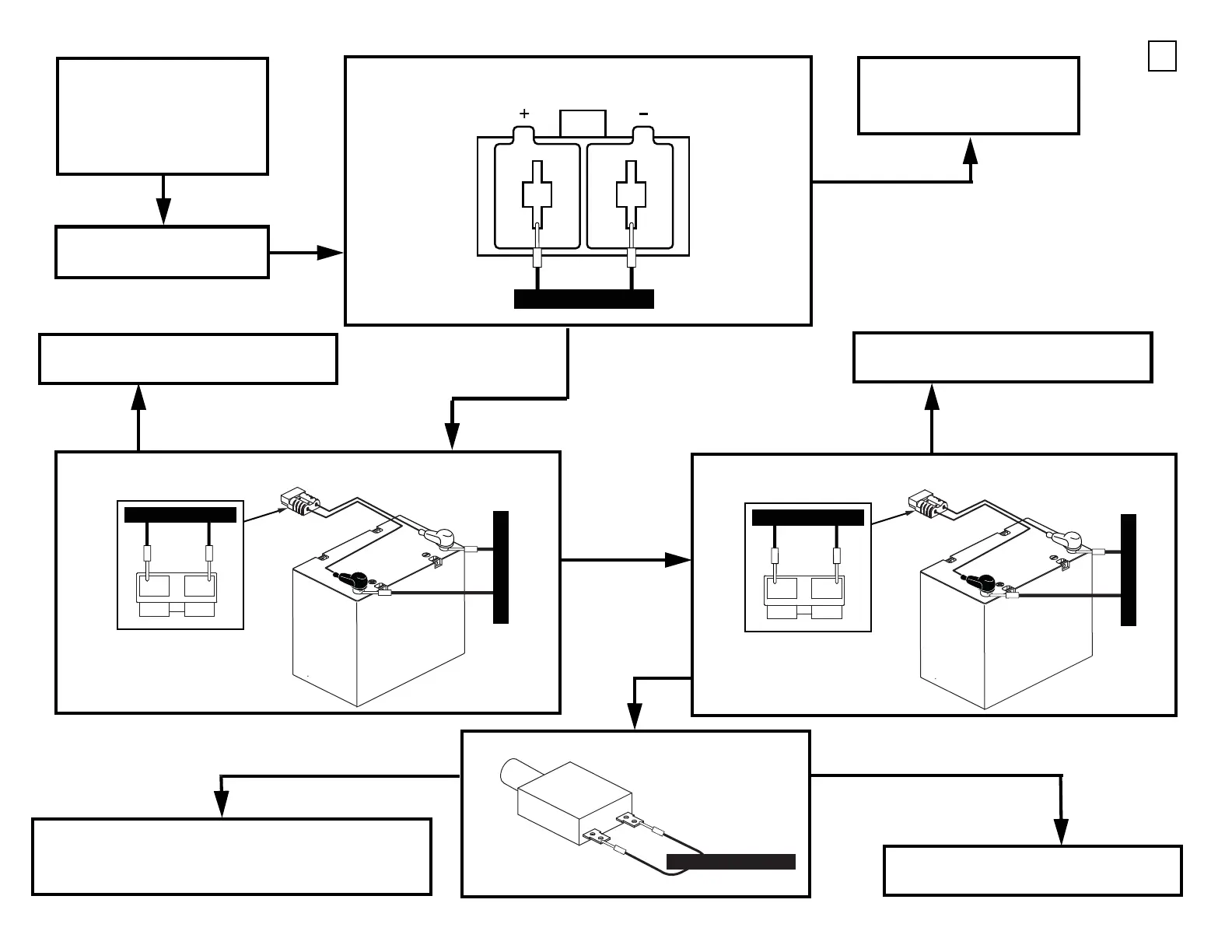

Remove the rear shroud.
Disconnect the power
module to from the rear
main frame. (See Appen-
dix 2.)
Unplug the battery cable
from the power module.
12
Measure Voltage
BATTERY CABLE
THE VOLTAGE IS HIGHER THAN THE
MEASUREMENT TAKEN ON PAGE 20.
Plug the battery cable back
into the power module then
go to the next page.
THE VOLTAGE IS THE
SAME AS THE MEASURE-
MENT TAKEN ON PAGE 20.
The batteries are too low to charge with the off-
board charger. Take the opportunities to an autho-
rized service center for load testing and charging.
Measure Voltage
1
2
Measure Voltage
FRONT BATTERY HARNESS CONNECTORS
SAME MEA-
SUREMENTS
FOR BOTH
TESTS
REAR BATTERY HARNESS CONNECTORS
Measure Voltage
1
2
Measure Voltage
DIFFERENT MEASURE-
MENTS FOR BOTH TESTS
DIFFERENT MEASURE-
MENTS FOR BOTH TESTS
Replace the rear battery harness, then
retest the system.
Replace the front battery harness,
then retest the system.
SAME MEA-
SUREMENTS
FOR BOTH
TESTS
Measure Res
i
stance
Measure Resistance
CIRCUIT BREAKER
LESS THAN 1 OHM
GREATER THAN 1 OHM
Replace the circuit breaker, then
retest the system.
