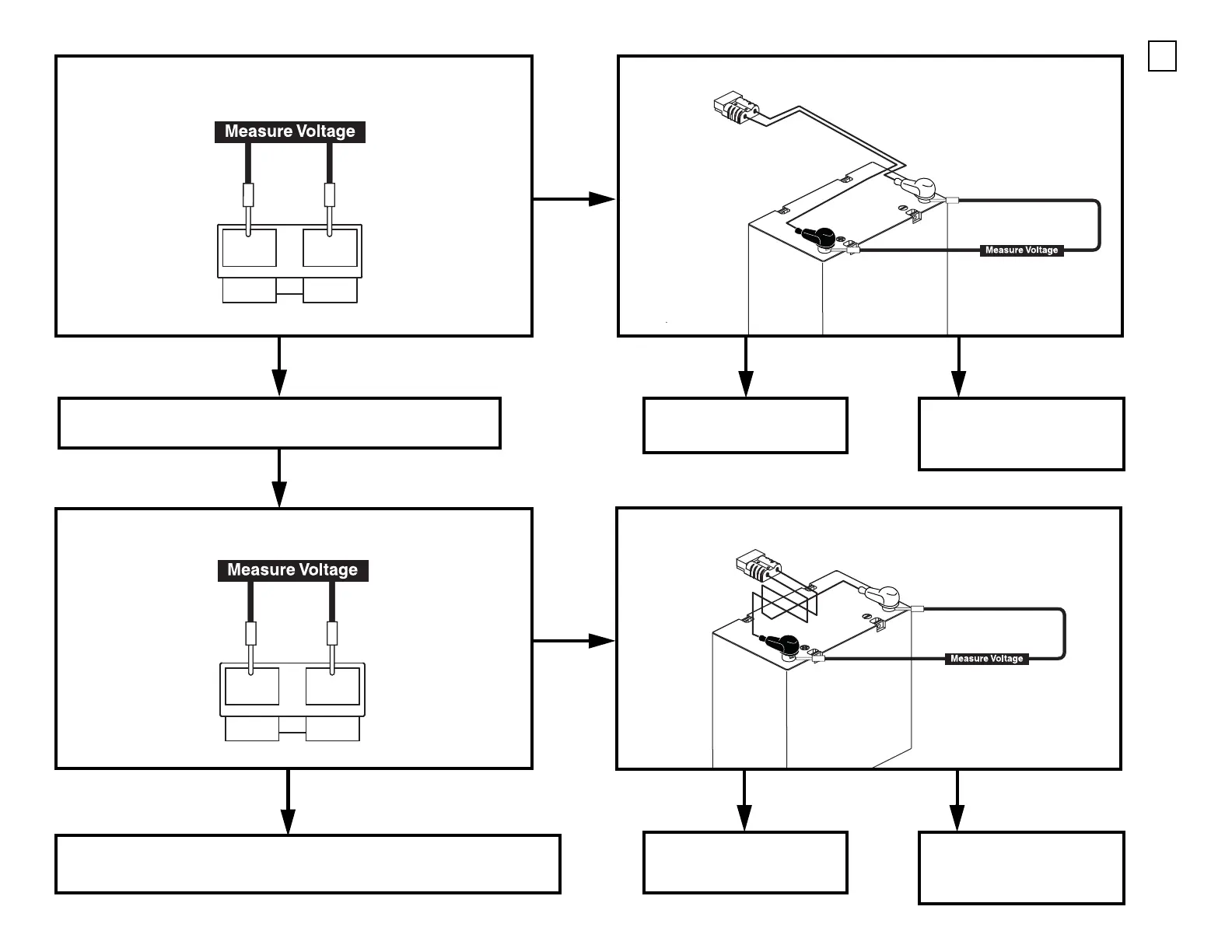

FRONT BATTERY HARNESS CONNECTOR
less than 18 VDC
1
2
0VDC
Reconnect the front battery harness to the battery cable.
GREATER THAN 0VDC
FRONT
BATTERY
FRONT BATTERY HARNESS
Replace the batteries
and retest the system.
0VDC
Replace the front battery
harness and retest the
system.
GREATER THAN
0VDC
REAR BATTERY HARNESS CONNECTOR
less than 18 VDC
1
2
0VDC
Reconnect the rear battery harness to the battery cable, then go to
the next page.
GREATER THAN 0VDC
REAR BATTERY HARNESS
REAR
BATTERY
Replace the batteries
and retest the system.
0VDC
Replace the rear battery
harness and retest the
system.
GREATER THAN
0VDC
5
