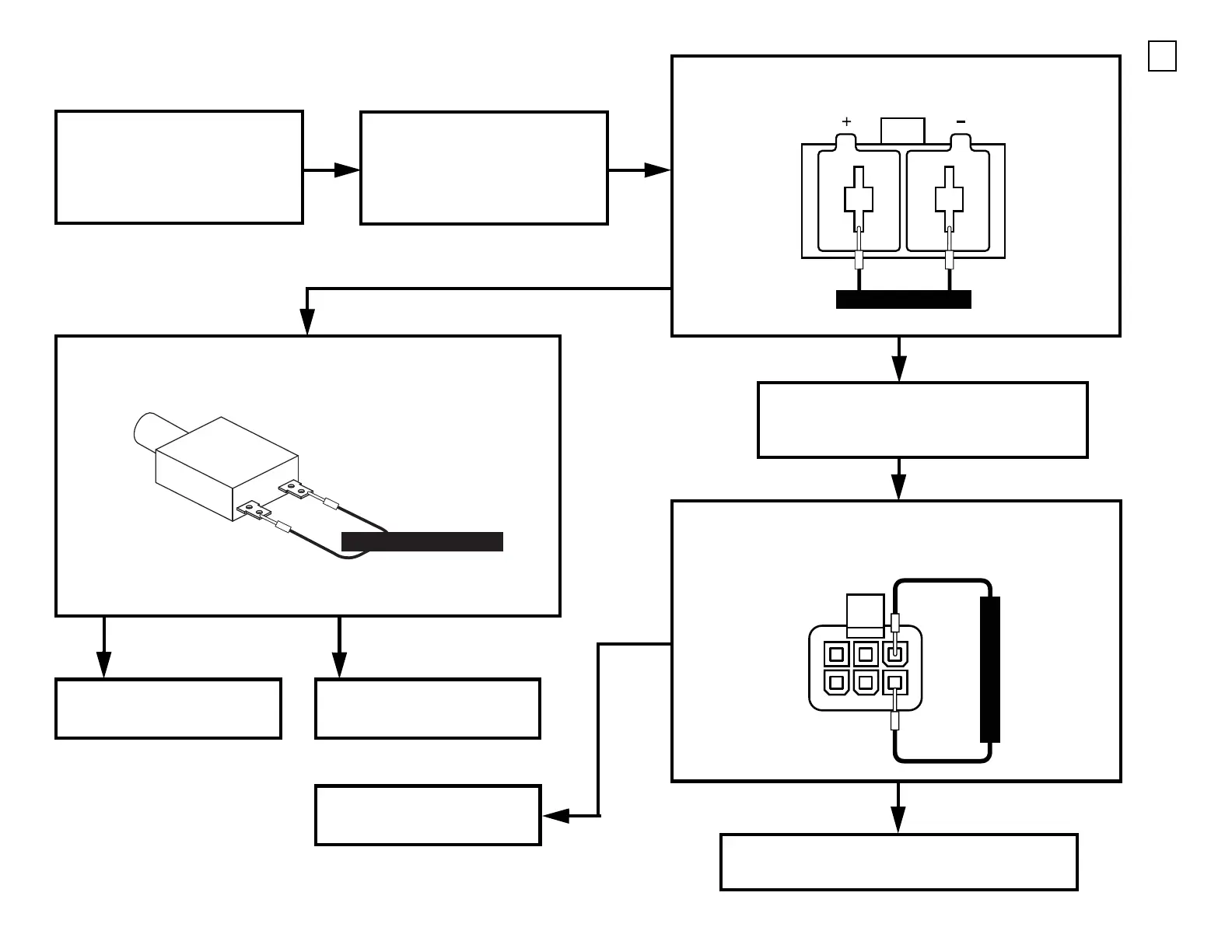

BATTERY CABLE CONNECTOR
12
Measure Voltage
Remove the rear shroud, then
disconnect the power module
from the rear main
frame.(See Appendix 2.)
Disconnect the battery cable
from the power module.
0VDC
GREATER THAN 0VDC
Plug the battery cable back into the
power module, then unplug the BUS
cable extension from the power module.
CIRCUIT BREAKER
Measure Res
i
stance
Measure Resistance
LESS THAN 1 OHM
Replace the battery cable
and retest the system.
GREATER THAN 1 OHM
Replace the circuit breaker
and retest the system.
BUS CABLE EXTENSION PORT ON POWER
MODULE
123
456
Measure Voltage
0VDC
Replace the power module
and retest the system.
Plug the BUS cable extension back into the
power module then go to the next page.
GREATER THAN 0VDC
