fig.3
fig.4

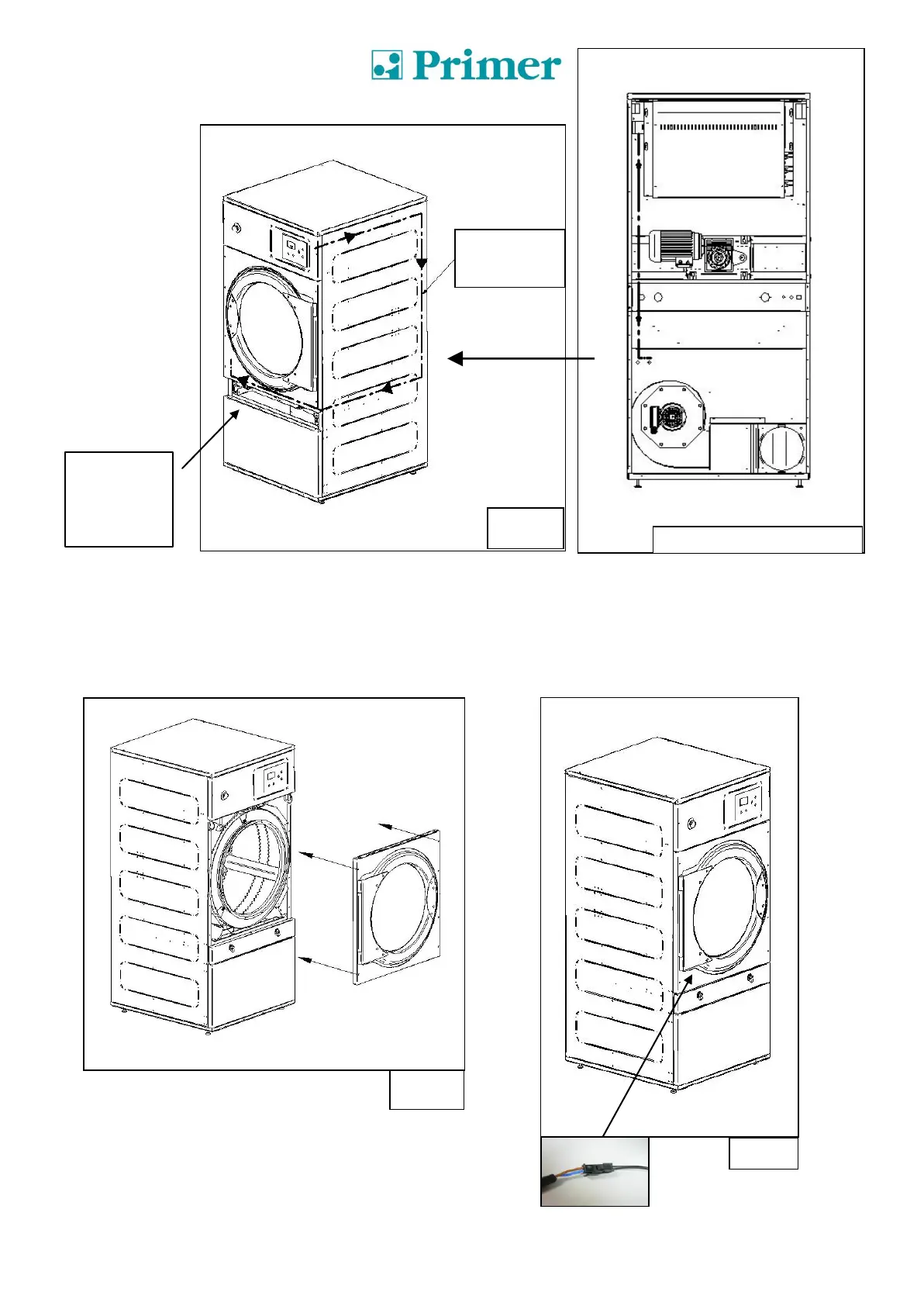

13. Turn the front cover of the door 180º so that the hinges are on the opposite side and place in position. Secure
with the 6 “B” bolts and 2 “B1” bolts using the No 3 Allen key. See Fig. 3.
14. Connect the reed sensor to the new cable and replace the filter cover. Replace the top cover removed in step
1. The process has been completed. See Fig. 4.
Rear view of the dryer.
Position of
the bushing
and the
insertable
flanges.
LAYOUT OF THE
NEW REED
SENSOR CABLE
fig.2
