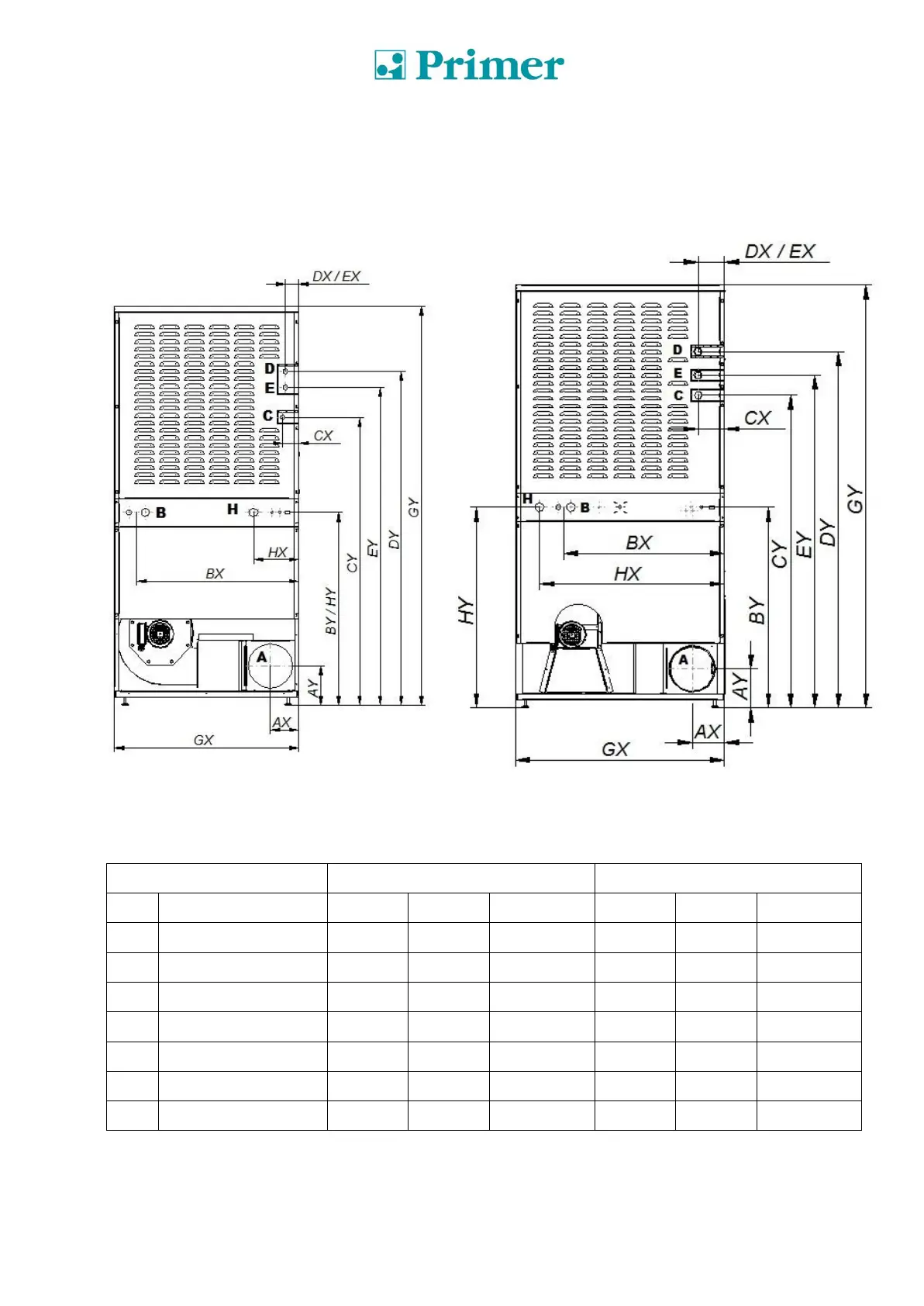

3.9. Rear view dryer and installation data:
DS/DL-11/17
DS/DL-23
Tip
Description
Height X
Height Y
Connection
Height X
Height Y
Connection
A
Steam outlet
121
168
Ø200mm
137
168
Ø200mm
B
Power supply
690
821
Ø20mm
685
862
Ø20mm
C
Gas inlet
68
1226
BSP ½”
112
1344
BSP ½ ”
D
Steam inlet
56
1422
BSP ½”
113
1532
BSP ¾ “
E
Condensation outlet
56
1354
BSP ½”
113
1430
BSP ¾ “
G
General height
785
1700
-
890
1817
-
H
Anti fire valve
192
821
BSP ¾ “
787
862
BSP ¾ “
