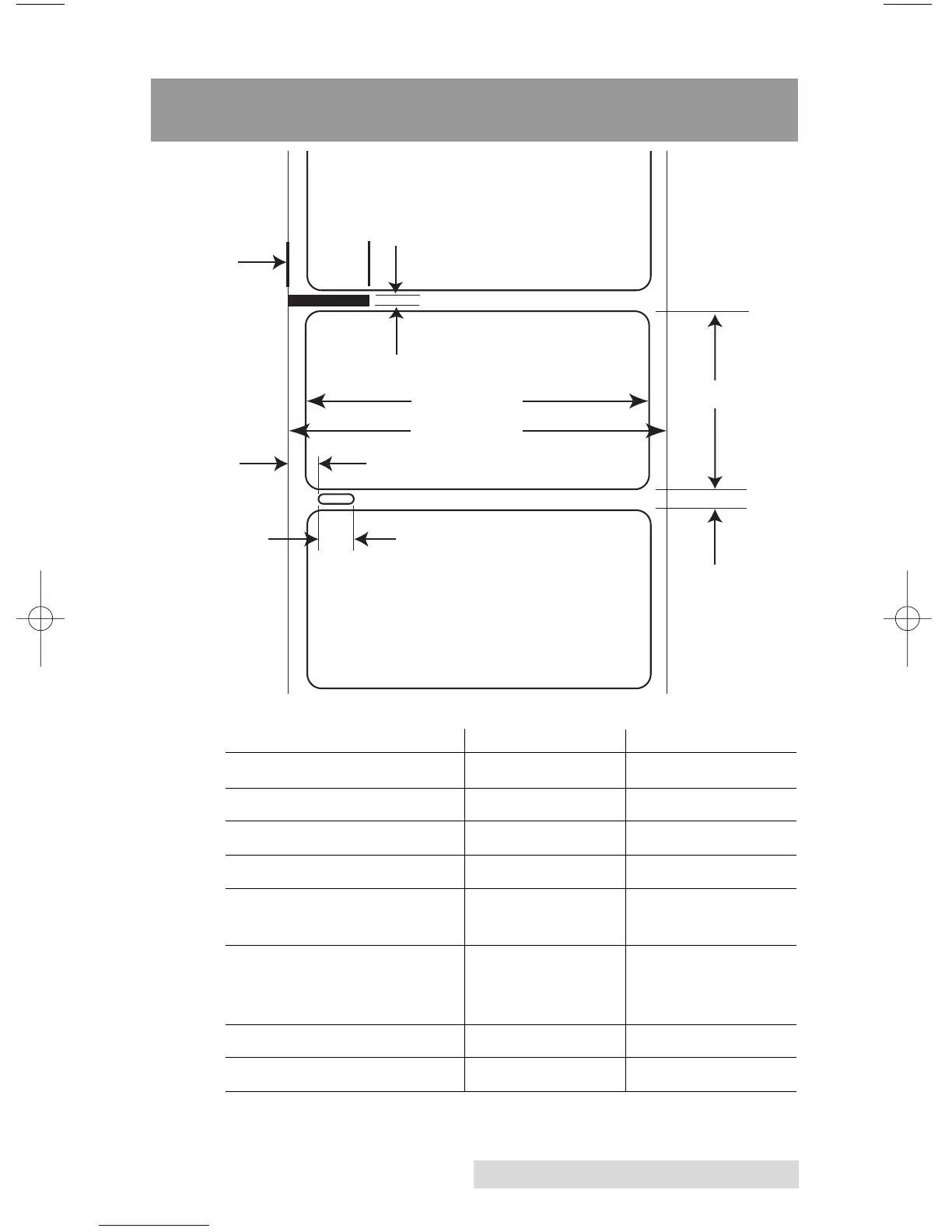

Label Specifications 41
Media Width
Distance from edge of Media
Label Height
Gap
Between
Labels
Width of Opening
Label Width
Through-
hole
(Optional)
Stripe Width
Stripe
Length
Black Stripe
Section 5 : Label Specifications
Max Min
Label width 8.25" (210mm) 0.75" (19mm)
Media width 8.5" (215mm) 1.5" (38mm)
Label height/length 24" (609.6mm) 0.75" (19mm)
Gap between labels 10" (253mm) 0.10 (2.5mm)
Width of through-hole 0.5" (12.65mm) 0.25" (6.325mm)
opening
Distance from edge of 2.25" (57mm) 0.20" (5.06mm)
media to edge of
through-hole
Stripe/Eyemark Width* 0.1" (2.54mm)
Stripe/Eyemark Length 8.25 (210mm) 0.425(10.8mm)
*The Stripe/Eyemark should be opaque to infared light.
