Primera LX810e - Label Specifications; Label Sensing Methods; Label Dimensions and Roll Specifications

Label Specifications 41
Max Min
Label width 8.25" (210mm) 0.75" (19mm)
Media width 8.5" (215mm) 1.5" (38mm)
Label height/length 24" (609.6mm) 0.75" (19mm)
Gap between labels 10" (253mm) 0.10 (2.5mm)
Width of thru-hole 0.5" (12.65mm) 0.25" (6.325mm)
opening
Distance from edge of 2.25" (57mm) 0.20" (5.06mm)
media to edge of
thru-hole

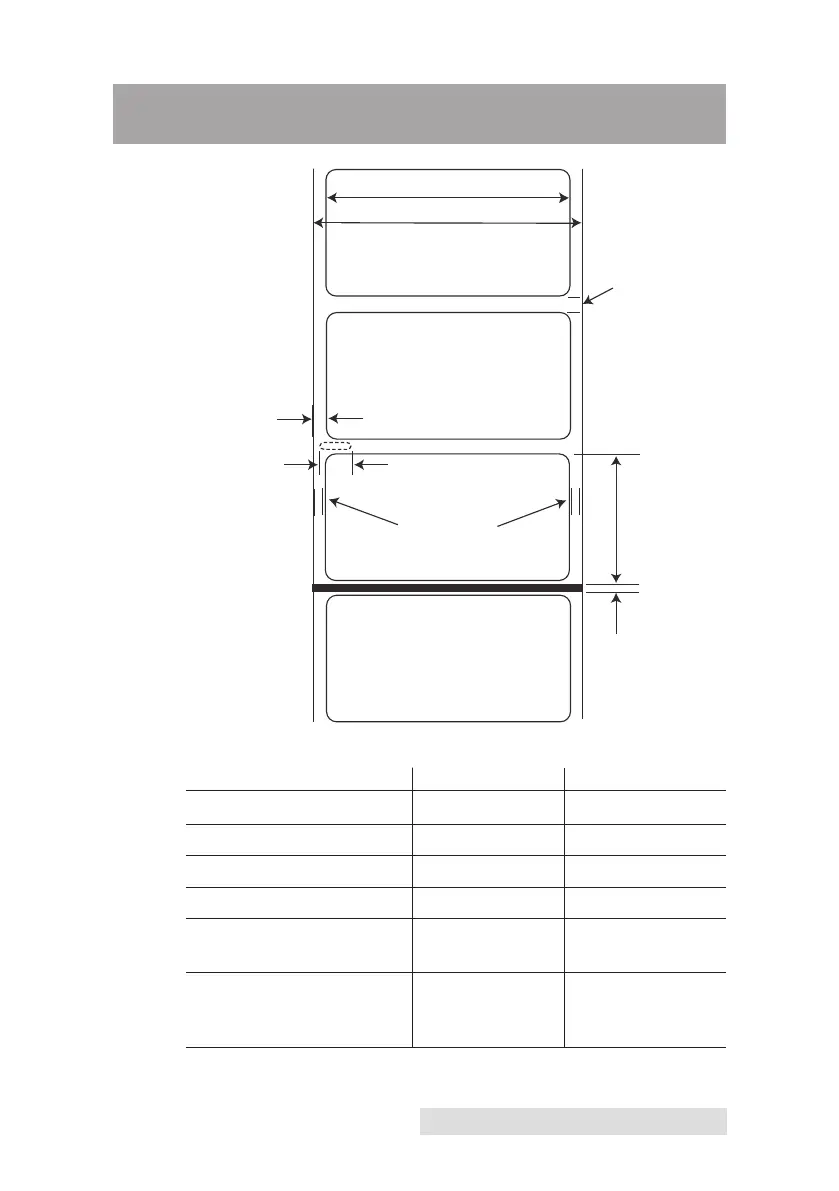

Section 5 : Label Specifications
Label Width
Media Width
Distance from
edge of Media
to edge of Label
Width of Opening
Black Mark
Width
Gap Between
Labels
Label Height
Distance from
edge of Media
Label Sensing Methods
Method 1: Label
Gap Sensing
Method 2: Thru-Hole
Sensing
Method 3: Re
flective/Black
Mark Sensing
(Black Mark must be printed
on back side of label stock)
Note: See table below for Max and Min values in inches and mm..
