5 System description
Laser beam
Display
On/Off button
Protective window
holder
Safety interlock
connection
Micro-USB socket
Protective window

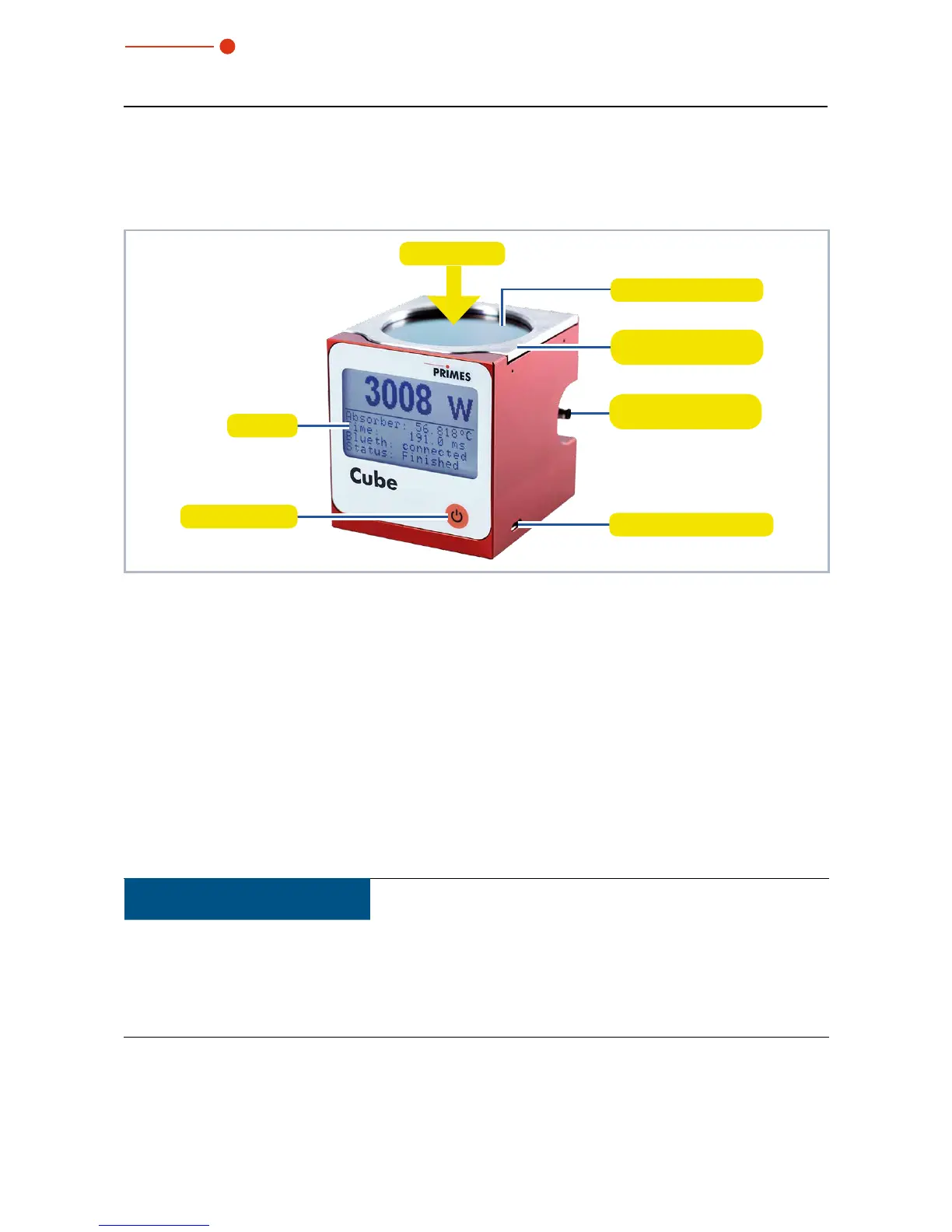

Fig. 5.1: System description of the Cube
5.1 Measuring Principles
The absorber of the calorimetric measurement system is irradiated by a laser for a short
period of time. The temperature difference of the absorber between start and finish
of the laser pulse is measured. From the increase in temperature, the microprocessor
based electronics is able to calculate laser power to a high degree of accuracy.
6 Transportation
NOTICE
Damaging/Destruction of the device
Hard impacts or dropping the device can damage the optical and electri-
cal components.
X
Only transport the device in its original packaging.
