35,0(6
Cube
13
Revision 01/2019 EN
7.3 Install the Cube
1. Align the device with the laser beam as described in chapter 7.2 on page11
and Fig. 7.1 on page12.
2. Install the device to the mounting threads as shown in Fig. 7.2 on page13.
3. Ensure a stable installation of the device:
The device must not be able to move.
4. Connect the safety interlock connection cable.
5. Remove the protective foil from the protective window of the device.
M6 x 6
2x
M4 x 8
50
5 5
10

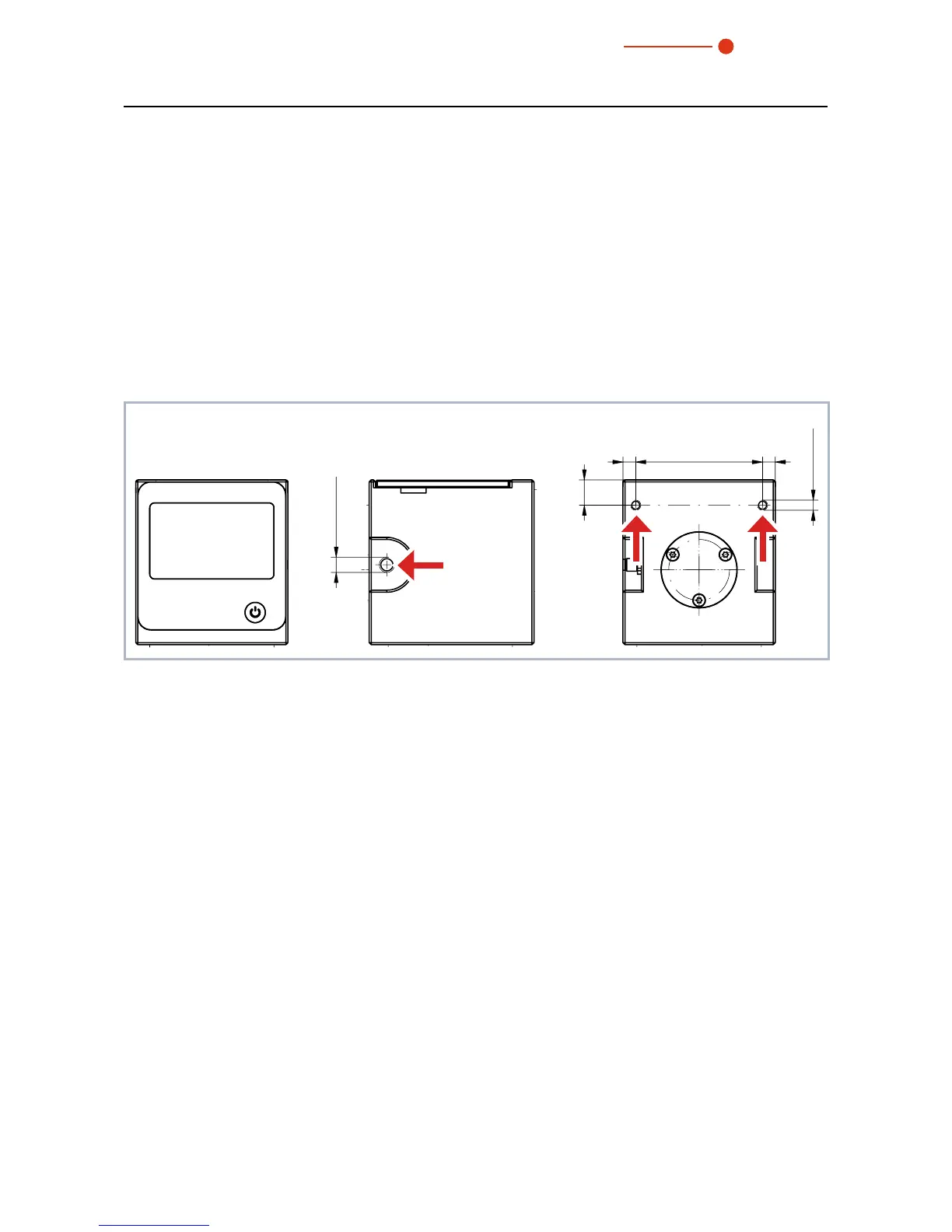

Fig. 7.2: Mounting threads in the Cube housing
7.4 Remove the Cube
1. Turn off the laser source.
2. Ensure that moving parts, e.g. robot arms, etc. are at a standstill and that they
cannot be set in motion unintentionally.
3. Unscrew the mounting screws from the mounting threads (see Fig. 7.2 on
page13).
4. Remove the safety interlock connection cable and remove the device from the
laser system.
5. Apply the protective foil to prevent contamination of the protective window.
