Pro-face SP-5B10 - Auxiliary Output;Speaker Output Interface (AUX)

18
English
Interface

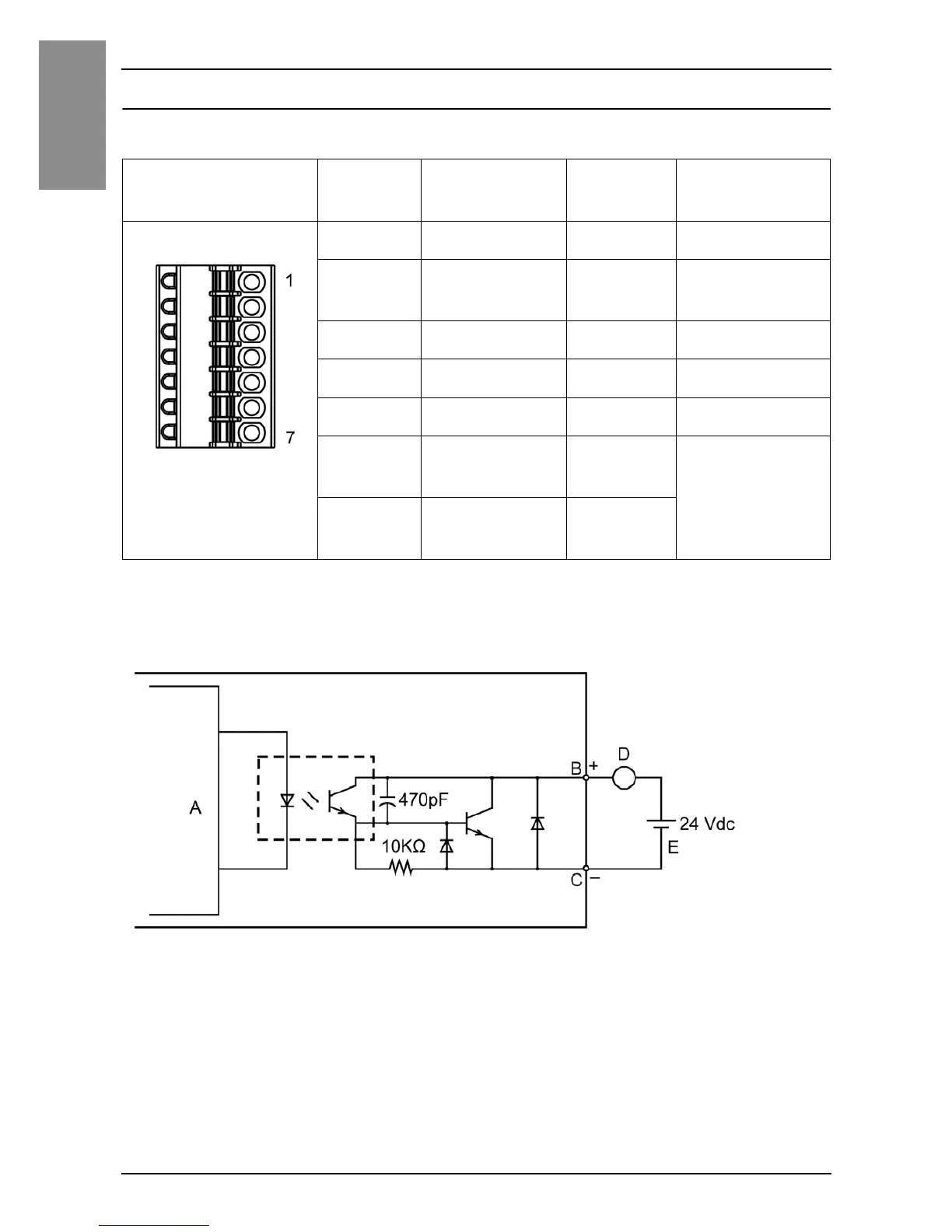

Auxiliary Output/Speaker Output Interface (AUX)
AUX Connector: PFXZCDCNAUX1 by Pro-face.
Output Circuit
A Internal Circuit
B Pin Number 6: ALARM+/BUZZER+
C Pin Number 7: ALARM-/BUZZER-
D Load
E External Power
Cable connection
side
Pin
Number
Signal Name Direction Meaning
1 LineOut Output Line Out
2
LineOut_GND Output Line Out
Ground
3 SP+ Output Speaker +
4 SP- Output Speaker -
5 NC – No connection
6ALARM+/
BUZZER+
Output (Can be
changed via
the software)
7 ALARM-/
BUZZER-
Output
