Pro-face SP-5B10 - DVI-D Output Interface (Only for Open Box)

19
Interface
English

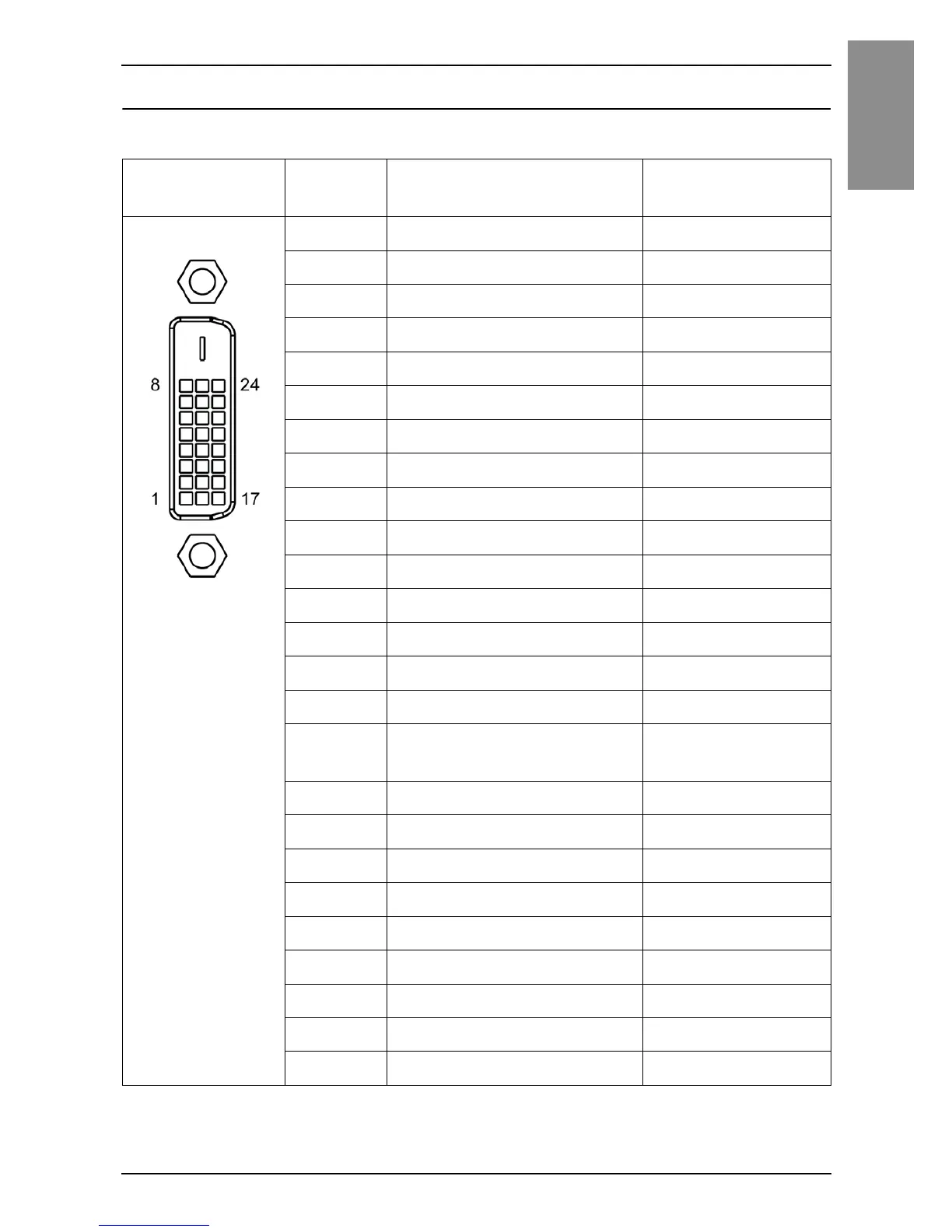

DVI-D Output Interface (Only for Open Box)
DVI-D 24 pin socket connector
Product Side Pin
Number
Signal Name Direction
1TMDS DATA 2- Output
2TMDS DATA 2+ Output
3 TMDS DATA 2 SHIELD –
4NC –
5NC –
6 DDC Clock Output
7 DDC Data Input/Output
8NC –
9TMDS DATA 1- Output
10 TMDS DATA 1+ Output
11 TMDS DATA 1 SHIELD –
12 NC –
13 NC –
14 +5 Vdc Power –
15 GND Ground
16 SP-5B40: NC
SP-5B41: Hot Plug Detect
SP-5B40: –
SP-5B41: Input
17 TMDS DATA 0- Output
18 TMDS DATA 0+ Output
19 TMDS DATA 0 SHIELD –
20 NC –
21 NC –
22 TMDS CLOCK SHIELD –
23 TMDS CLOCK+ Output
24 TMDS CLOCK - Output
Shell FG
Functional Ground
